Backup Lamp: Service and Repair

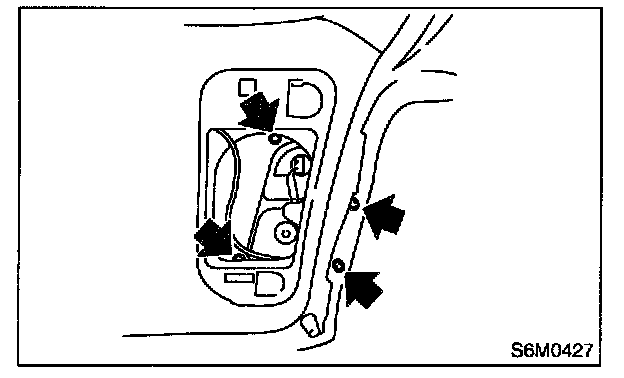

Rear Finisher Light Assembly (Back-Up Light and Tail Light)REMOVAL 1.
Disconnect ground cable from battery.
2.
Remove rear gate trim access hole cover.
3.
Remove the four nuts.
4.
Detach rear finisher light while disconnecting connector.
5.
Install in the reverse order of removal.
INSTALLATIONInstall in the reverse order of removal.
