Horn: Service and Repair

Horn / REMOVAL
1. Disconnect ground cable from battery.

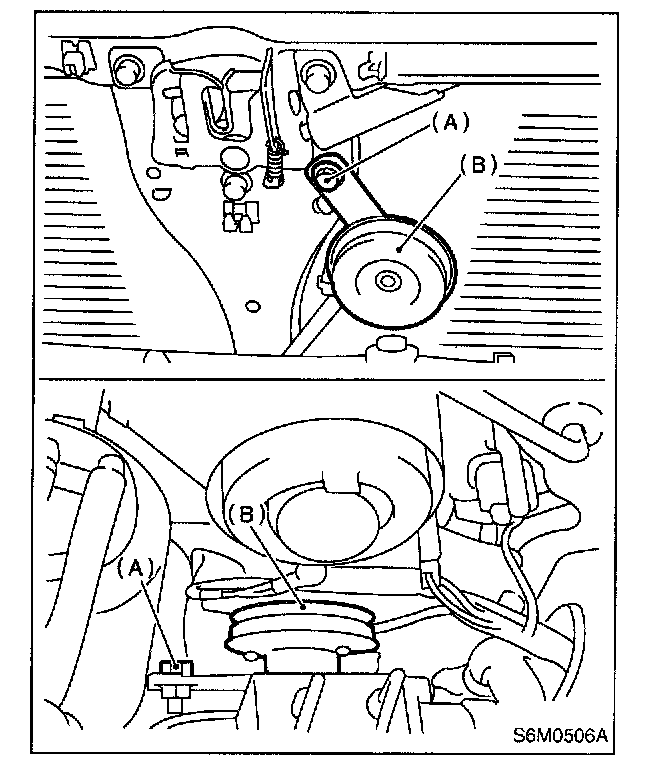

2. Remove horn bracket mounting bolt (A).

Horn:

3. Disconnect harness connector and remove horn assembly (B).

INSTALLATION
Install in the reverse order of removal.
