Map Light: Service and Repair

Spot Light / REMOVAL
1. Disconnect ground cable from battery.

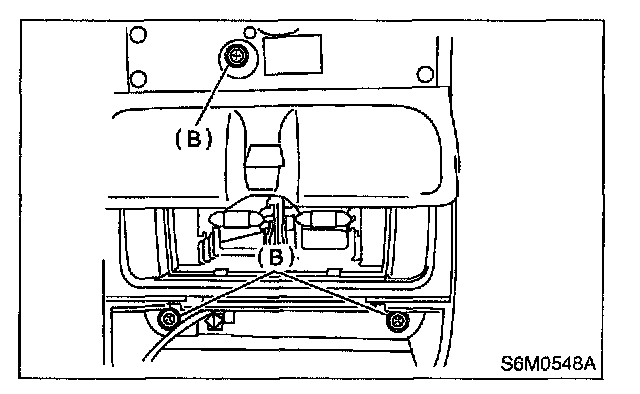

2. Remove spotlight lens (A).
3. Remove sunroof switch.

4. Remove spotlight mounting screw (B).
5. Disconnect harness connectors and remove spot light.

INSTALLATION
Install in the reverse order of removal.
