Clutch Fluid: Testing and Inspection

INSPECTION

1. Park vehicle on a level surface.
2. Check the clutch fluid for significant deterioration. If it is deteriorated, replace it.

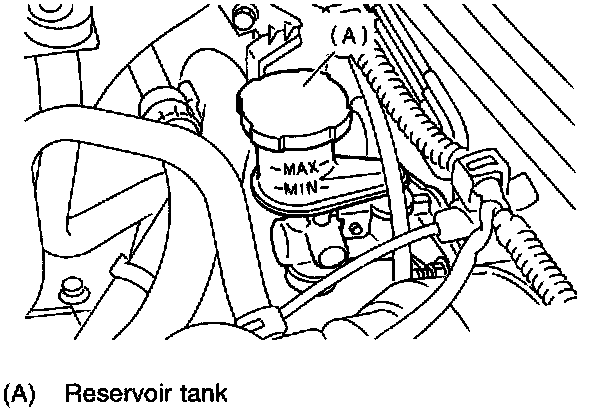

3. Inspect the fluid level using the scale on the outside of the clutch master cylinder tank. If the level is below "MIN", add clutch fluid to bring it up to "MAX".
