Fluid - A/T: Service and Repair

B: REPLACEMENT
1. Lift-up the vehicle.

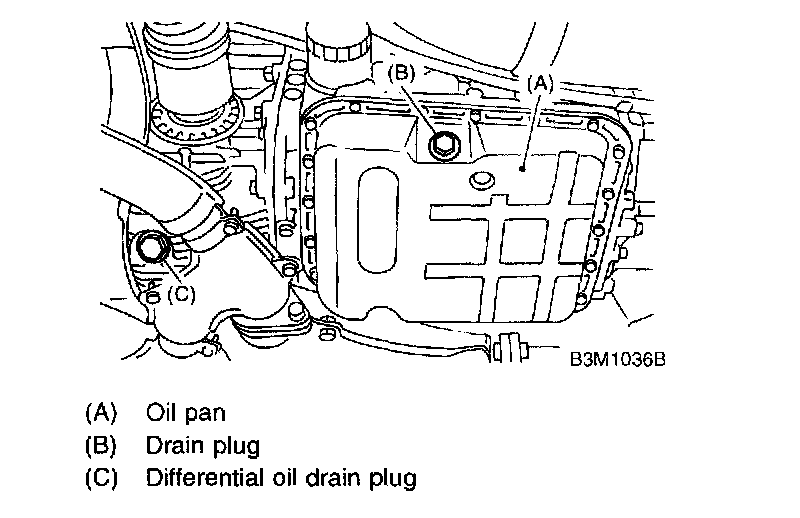

2. Drain ATF completely.

CAUTION: Directly after the engine has been running, the ATF is hot. Be careful not to burn yourself.

NOTE: Tighten ATF drain plug after draining ATF.

Tightening torque: 25 Nm to (2.5 kgf-m, 18.1 ft. lbs.)
3. Lower the vehicle.
4. Pour ATF into the oil charge pipe.
Recommended fluid: Dexron III type automatic transmission fluid
Capacity: Fill the same amount of fluid drained from drain plug hole.
Capacity when transmission is overhauled: 9.3 - 9.6 liters (9.8 - 10.1 US quarts 8.2 - 8.4 Imp quarts)
5. Check the level and leaks of the ATF.

ATF FILTER


NOTE: ATF filter is maintenance free part. ATF filter needs replacement, when it has physically damaged or ATF leaked. For the replacement procedures of the ATF filter, refer to "AUTOMATIC TRANSMISSION AND DIFFERENTIAL".
