Fluid - M/T: Testing and Inspection

INSPECTION

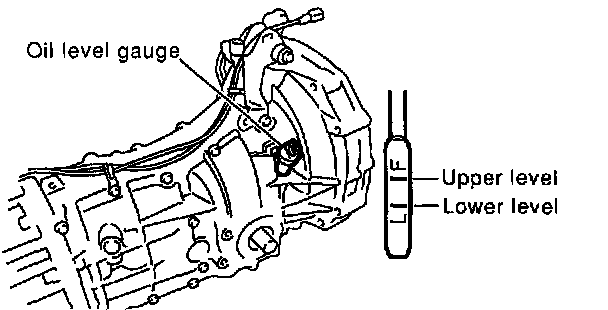

1. Park vehicle on a level surface.
2. Turn ignition switch to OFF, and wait until the engine cools.
3. Remove oil level gauge and wipe it clean.
4. Reinsert the level gauge all the way. Be sure that the level gauge is correctly inserted and in the proper direction.





5. Pull out the oil level gauge again and check the oil level on it. If it is below the lower level, add oil through the oil level gauge hole to bring the level UD to the upper level.
