Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

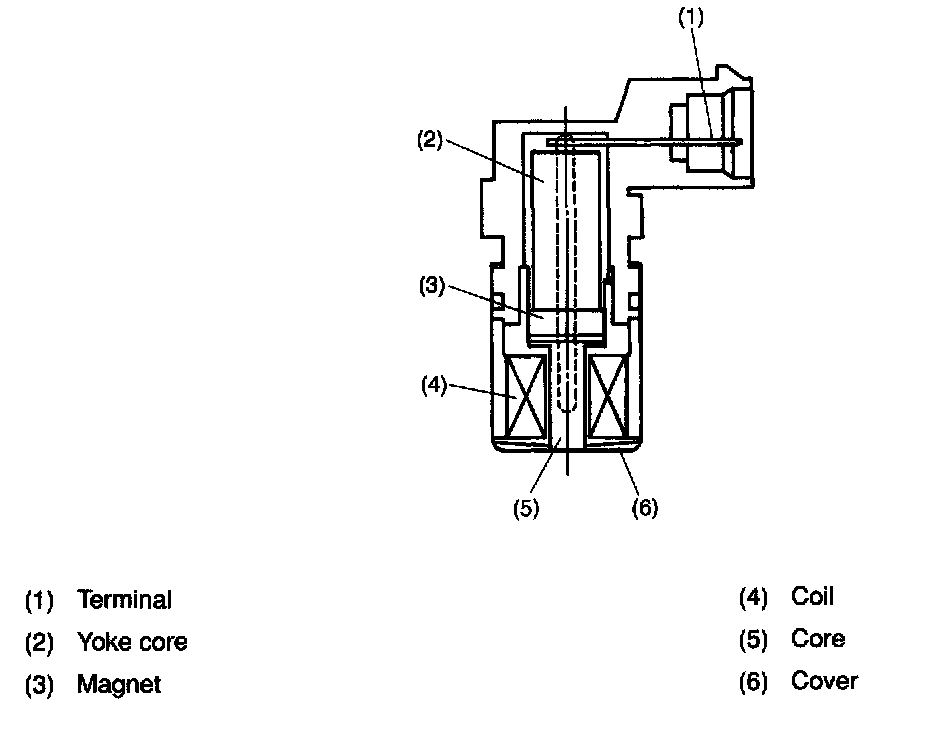

Crankshaft Position Sensor / REMOVAL

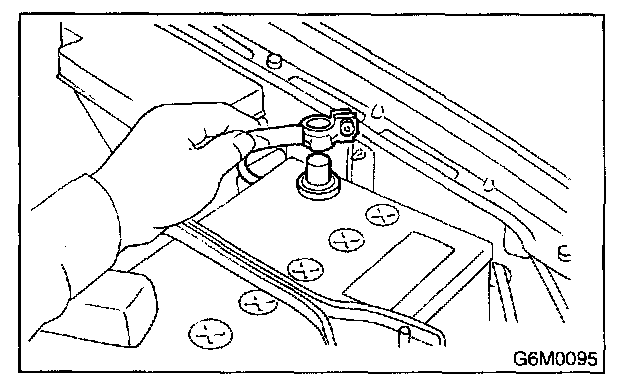

1. Disconnect battery ground cable.

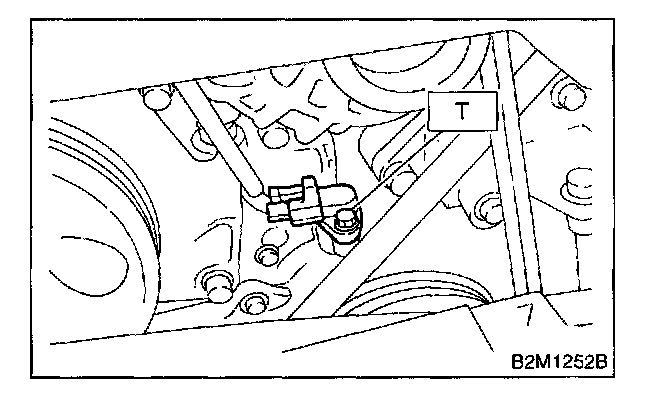

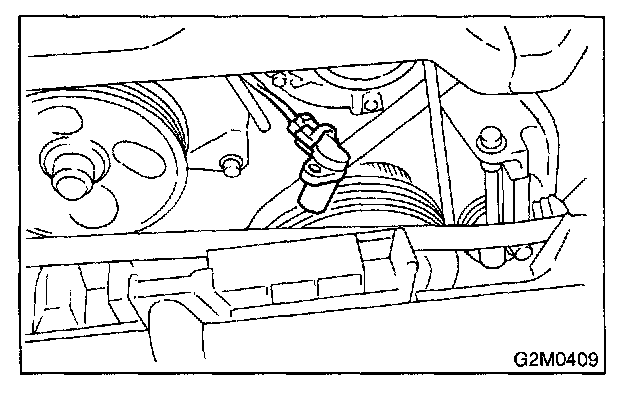

2. Remove bolt which installs crankshaft position sensor to cylinder block.

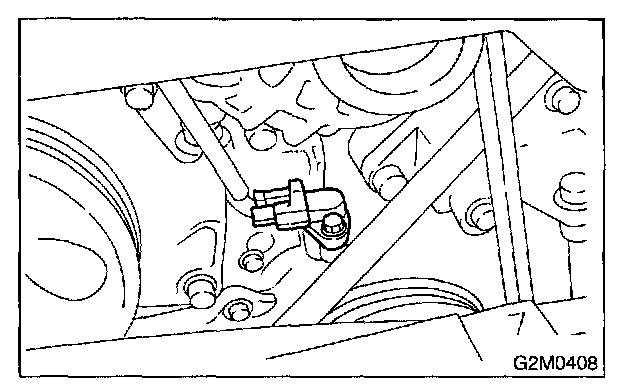

3. Remove crankshaft position sensor, and disconnect connector from it.

INSTALLATION
Install in the reverse order of removal.

Tightening Torque: T = 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
