Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor / REMOVAL
1. Remove fuel tank.

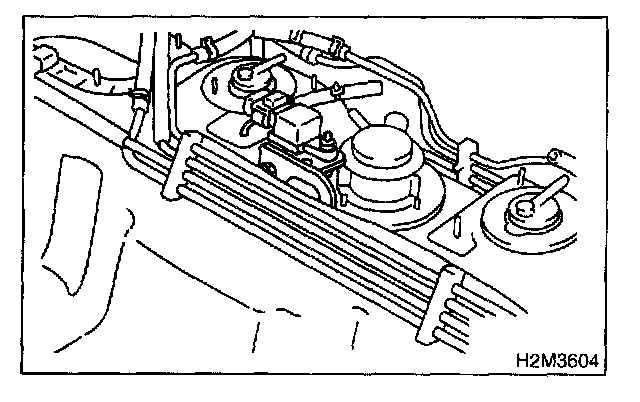

2. Remove fuel pipe protector.






3. Disconnect the connector from fuel tank pressure sensor.






4. Release the clips which hold fuel pipes onto fuel tank.

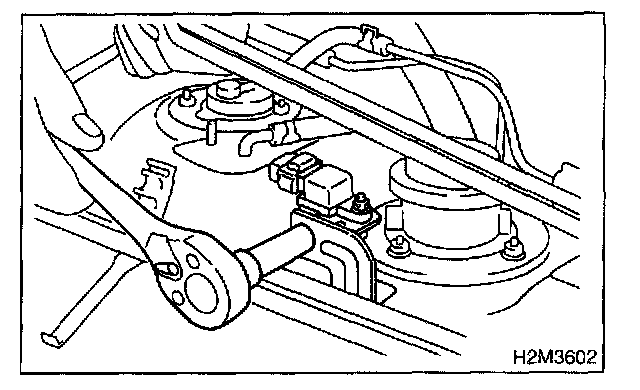

5. Move the two fuel pipes to upper side, and remove bolt which secures fuel tank pressure sensor to bracket.

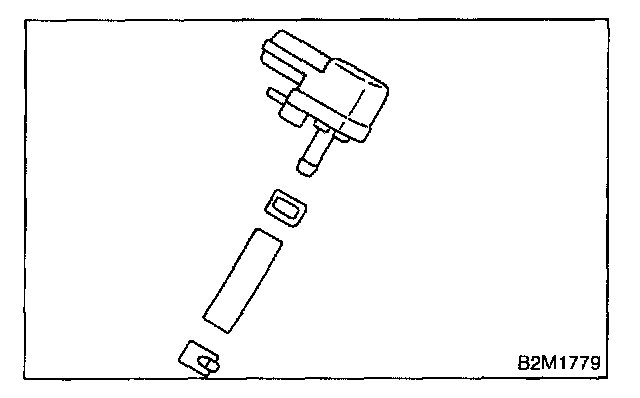

6. Disconnect pressure hose from fuel tank pressure sensor.



INSTALLATION
Install in the reverse order of removal.






Tightening Torque: 7.4 N.m (0.75 kgf-m, 5.4 ft-lb)
