Control Module Power Supply and Ground Line

Operation CHARM: Car repair manuals for everyone.

>> >> >> >> >> >> >> >> >> >>

Manuals through 2025 now available!

Our trusted friends have launched a new website named LEMON, which has newer manuals. It also contains all the CHARM manuals.

LEMON is the logical successor to CHARM, I recommend you try it!

Link: lemon-manuals.la

pro multis · About Operation CHARM

Wiring Diagram:

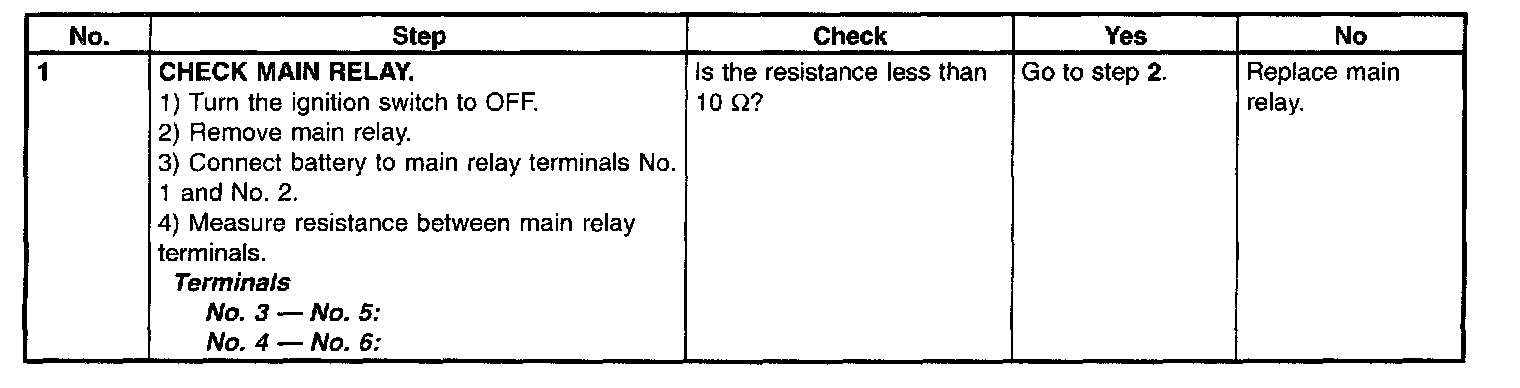

Step 1:

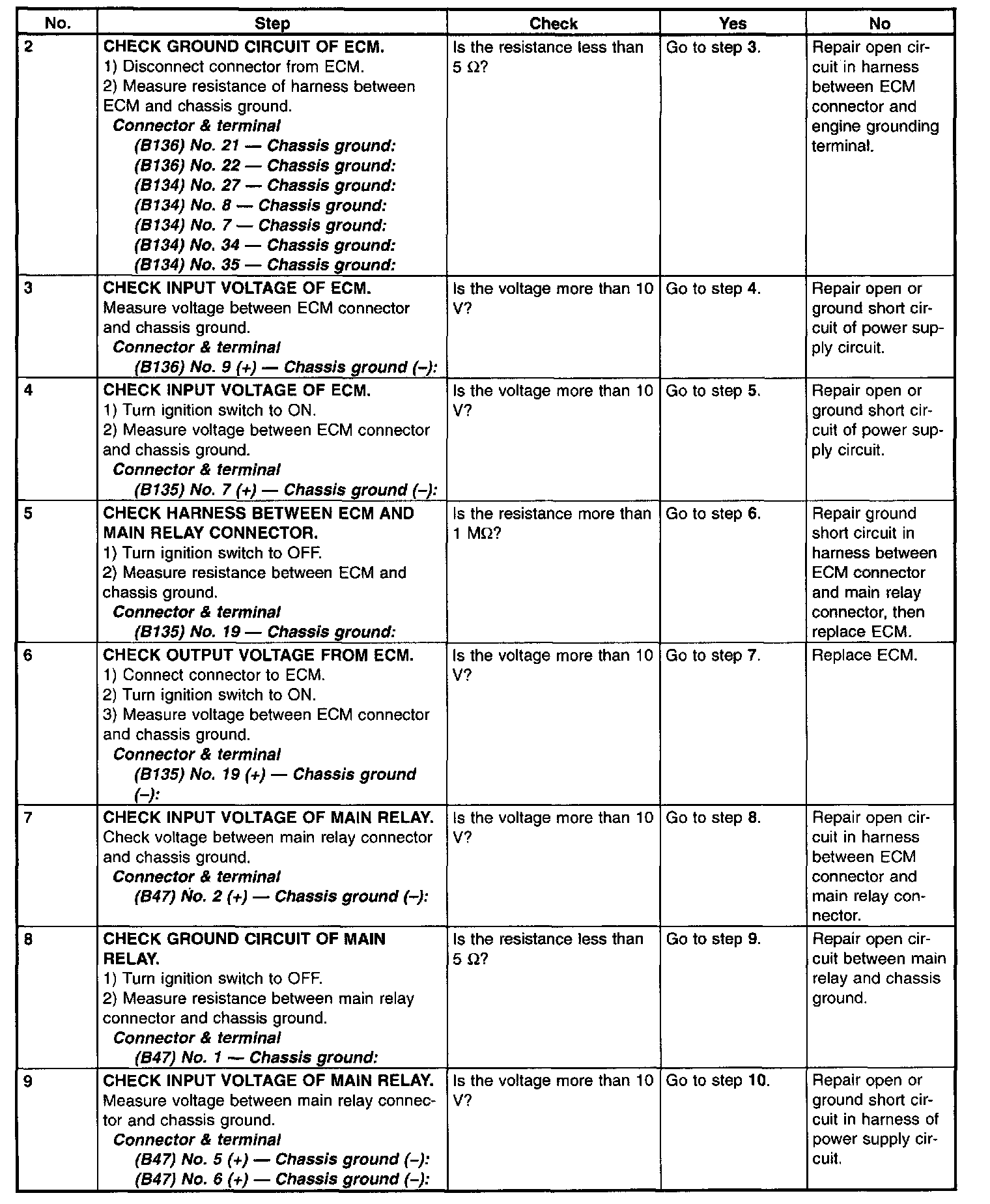

Step 2 - 9:

Step 10:
