Fuel Injector Circuit

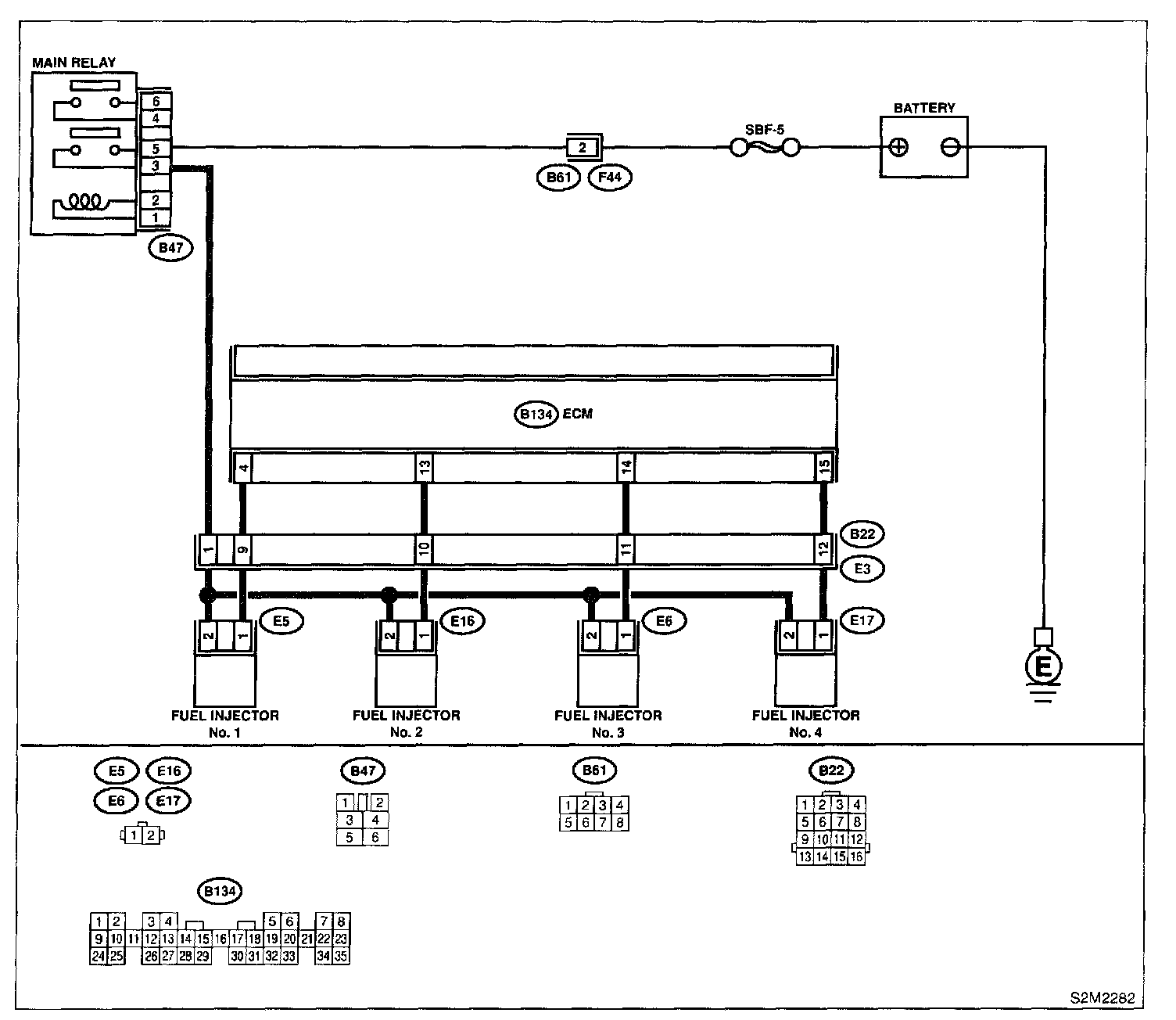

Wiring Diagram:

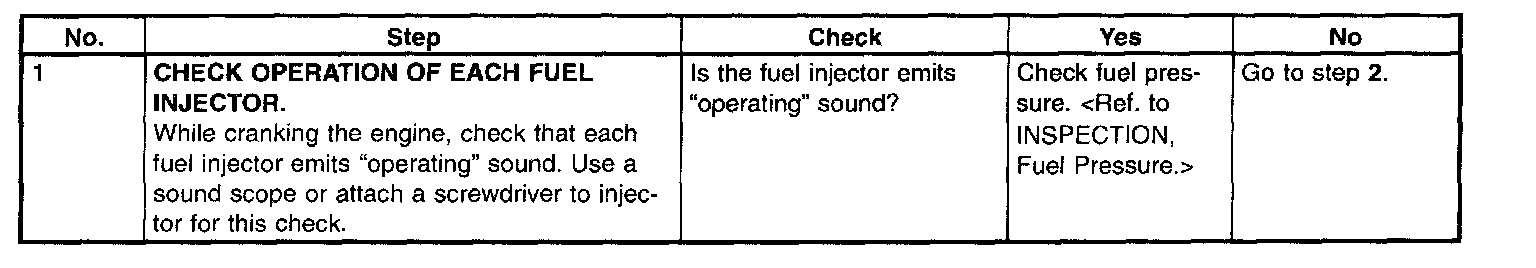

Step 1:




Step 2 - 6:






FUEL INJECTOR CIRCUIT

CAUTION: Check or repair only faulty parts.
After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
