Catalytic Converter: Service and Repair

Front Catalytic Converter






REMOVAL
1. Remove the front exhaust pipe and center exhaust pipe.

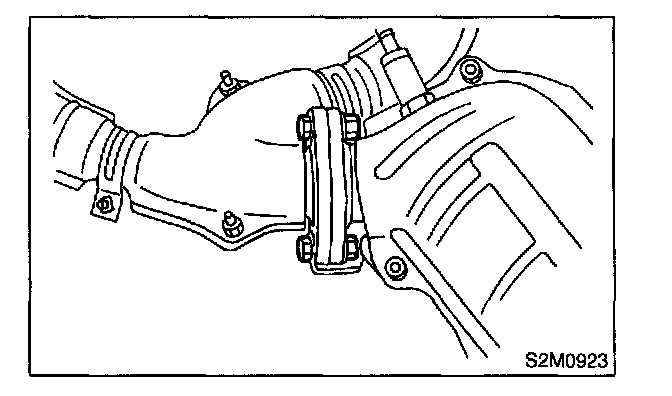

2. Separate front catalytic converter from front exhaust pipe.

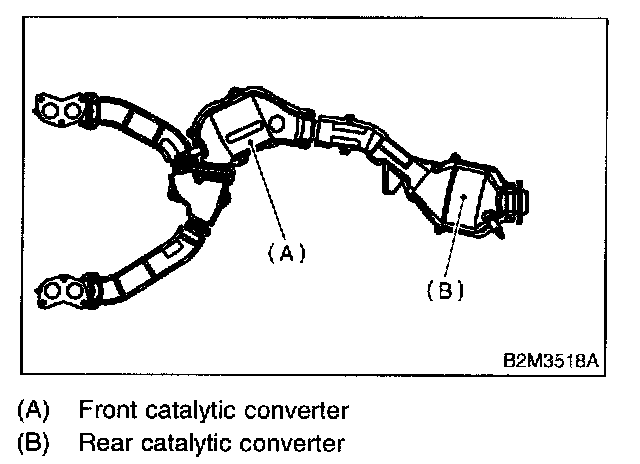

NOTE: The front catalytic converter is integrated with rear catalytic converter.



INSTALLATION

NOTE: Replace gaskets with new ones.

1. Install front catalytic converter to front exhaust pipe.






Tightening Torque: 30 N.m (3.1 kgf-m, 22.4 ft-lb)


2. Install the front exhaust pipe and center exhaust pipe.



Rear Catalytic Converter






REMOVAL

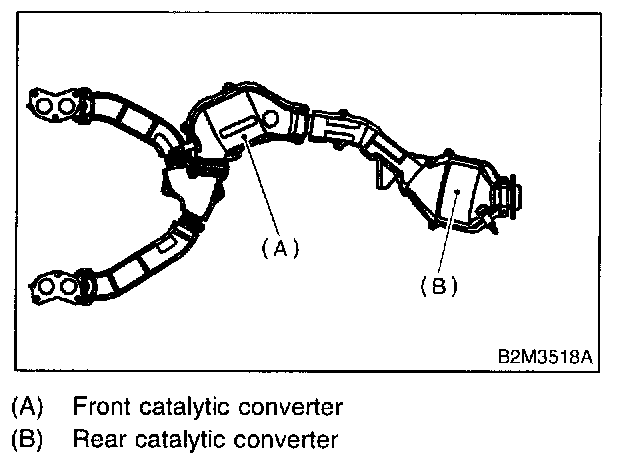

The front and rear catalytic converter and center exhaust pipe are integrated into one unit. Therefore, the removal and installation procedures are the same as the those for the front catalytic converter.






INSTALLATION
The front and rear catalytic converter and center exhaust pipe are integrated into one unit. Therefore, the removal and installation procedures are the same as the ones described under front catalytic converter.
