Refueling Control Valve: Service and Repair
Shut Off Valve:
Shut Valve / REMOVAL 1.
Drain fuel from
fuel tank.
2.
Remove fuel filler pipe.
3.

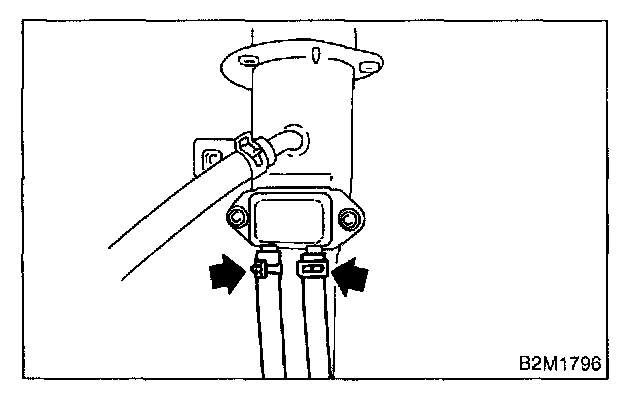

Disconnect evaporation hoses from shut valve.
4.

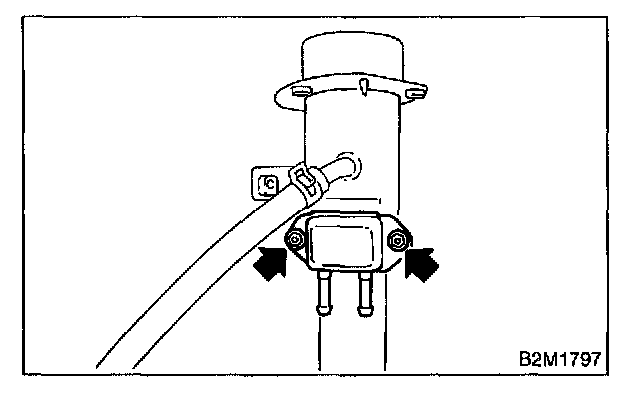

Remove shut valve from fuel filler pipe.
INSTALLATIONInstall in the reverse order of removal.
Tightening Torque:
4.5 N.m (0.46 kgf-m, 3.3 ft-lb)
