Diagnostic Procedure For No-Diagnostic Trouble Code

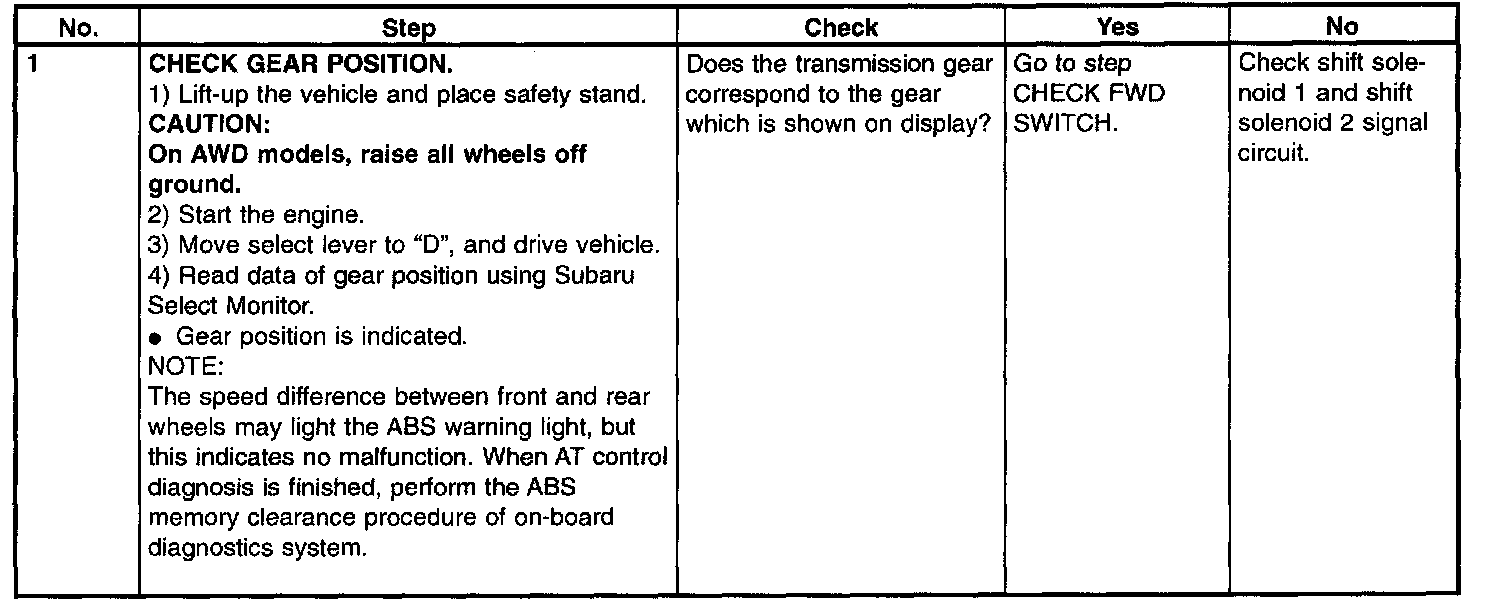

A: CHECK GEAR POSITION.

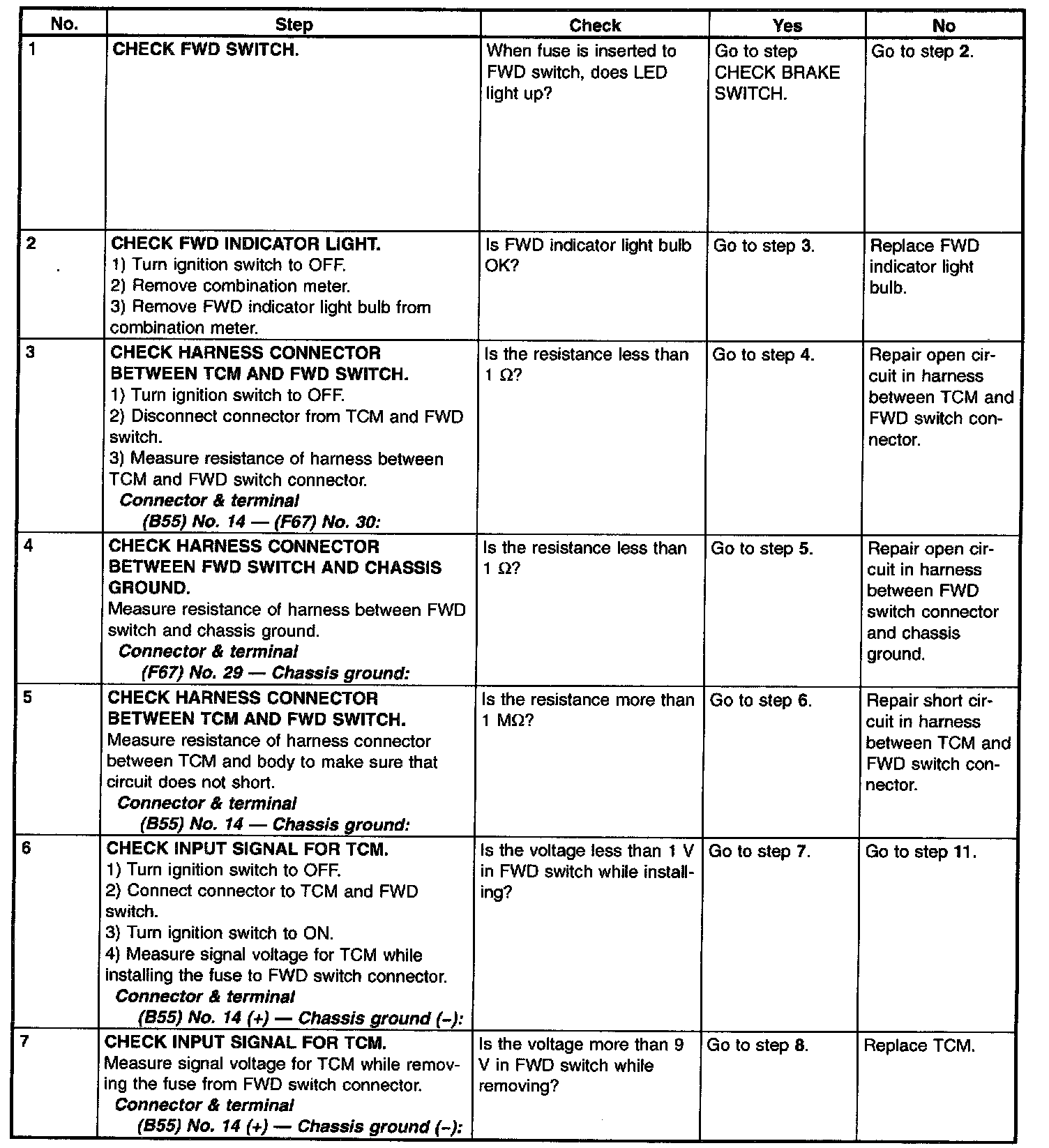

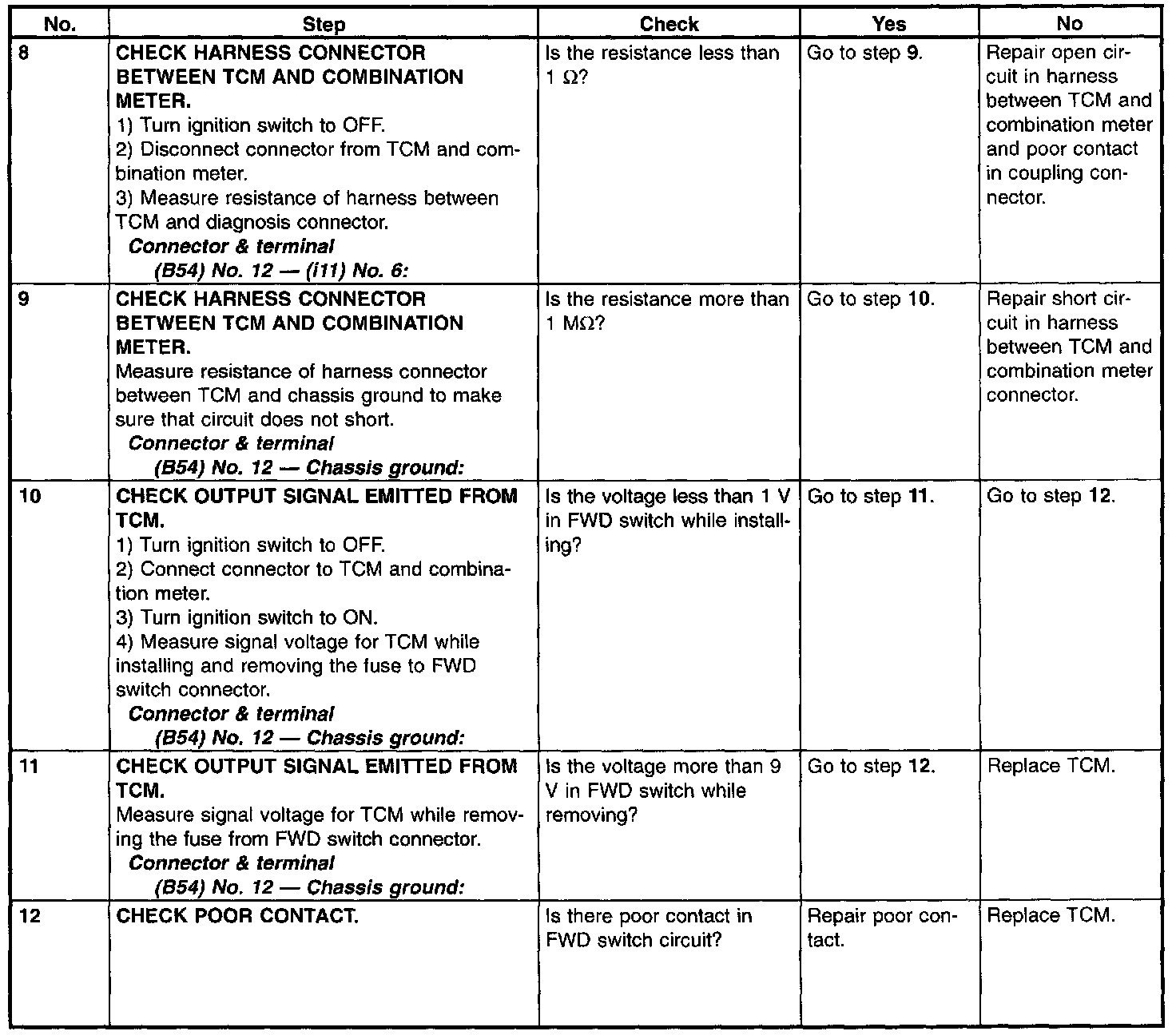

B: CHECK FWD SWITCH.

DIAGNOSIS:
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or short.

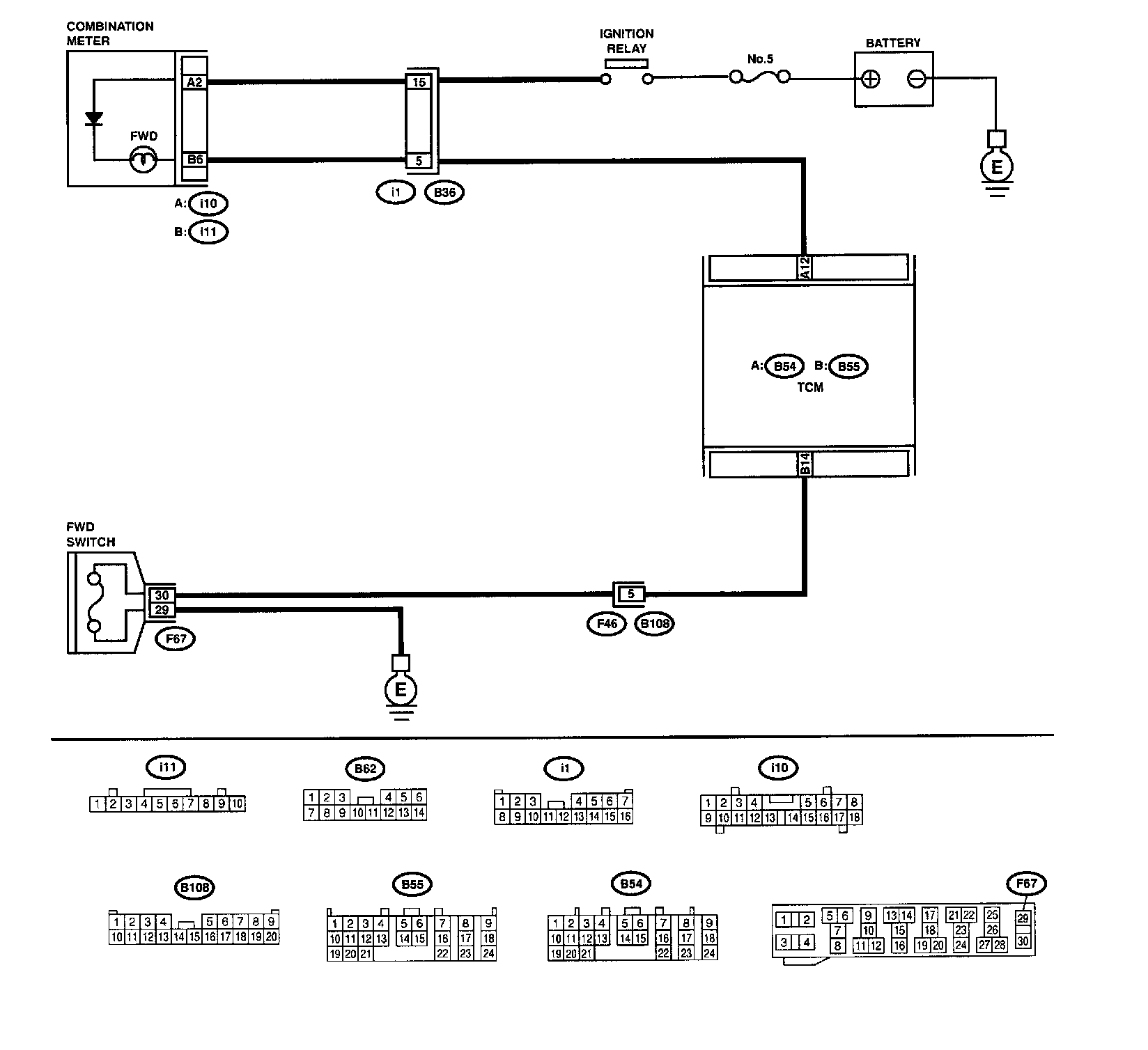

WIRING DIAGRAM:

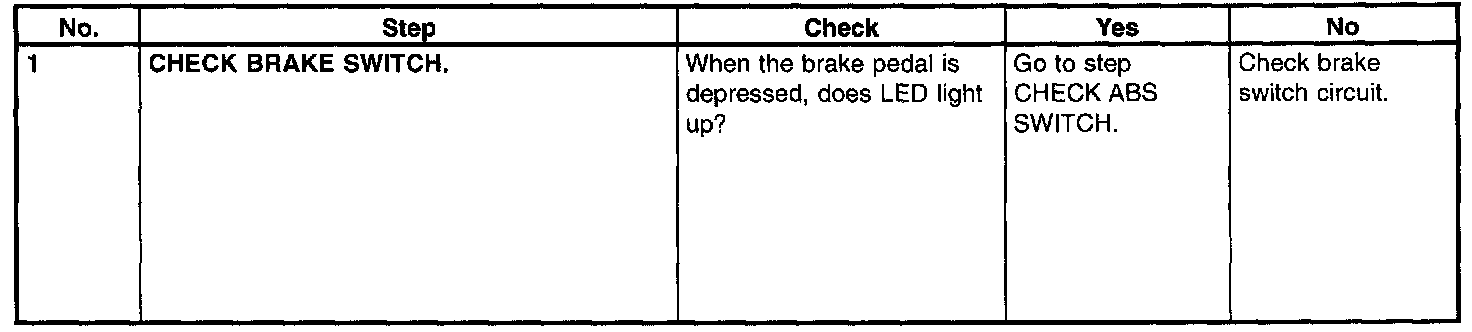

C: CHECK BRAKE SWITCH.

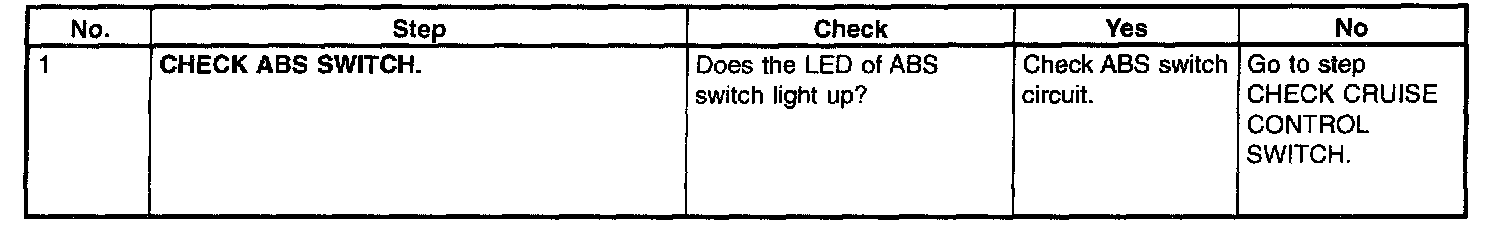

D: CHECK ABS SWITCH.

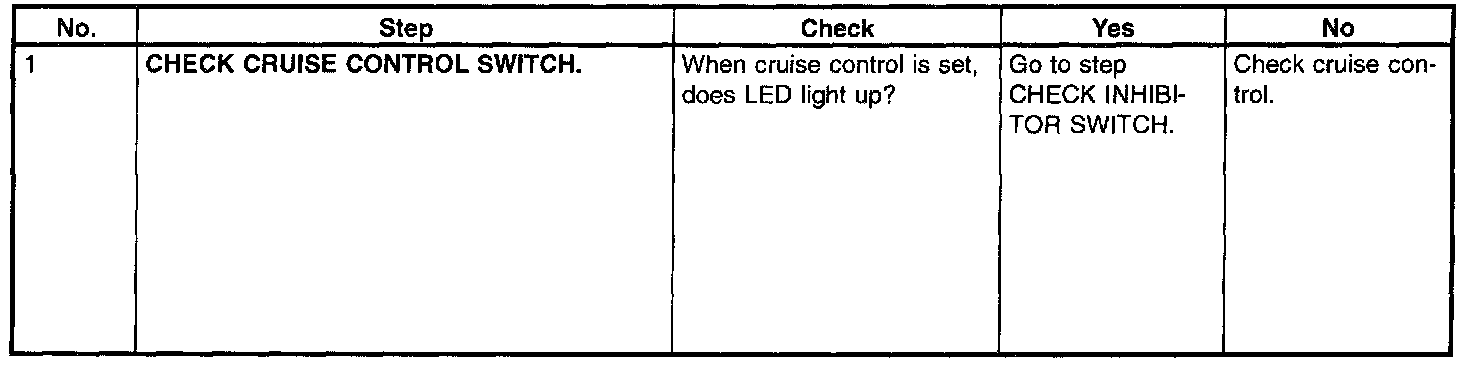

E: CHECK CRUISE CONTROL SWITCH.

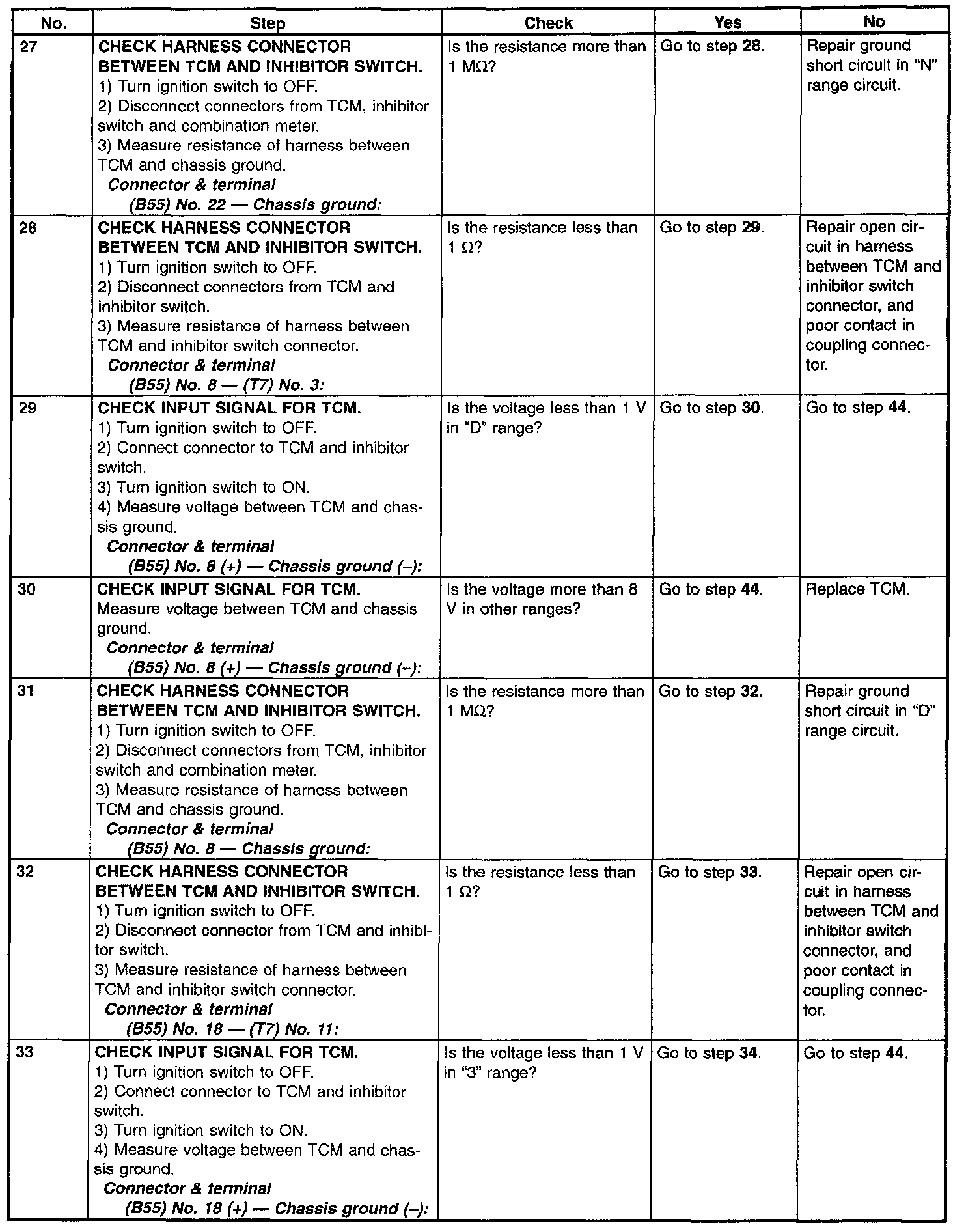

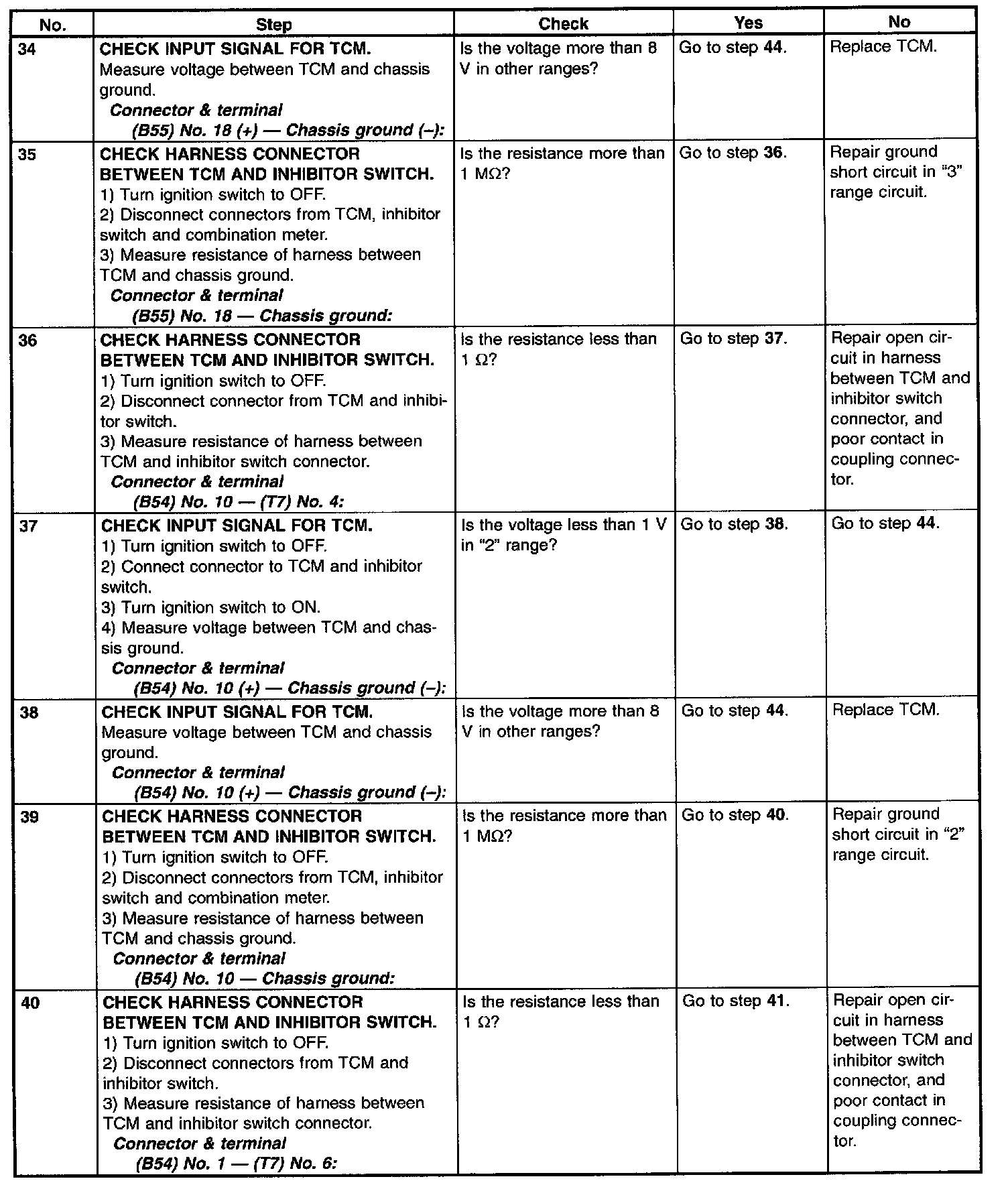

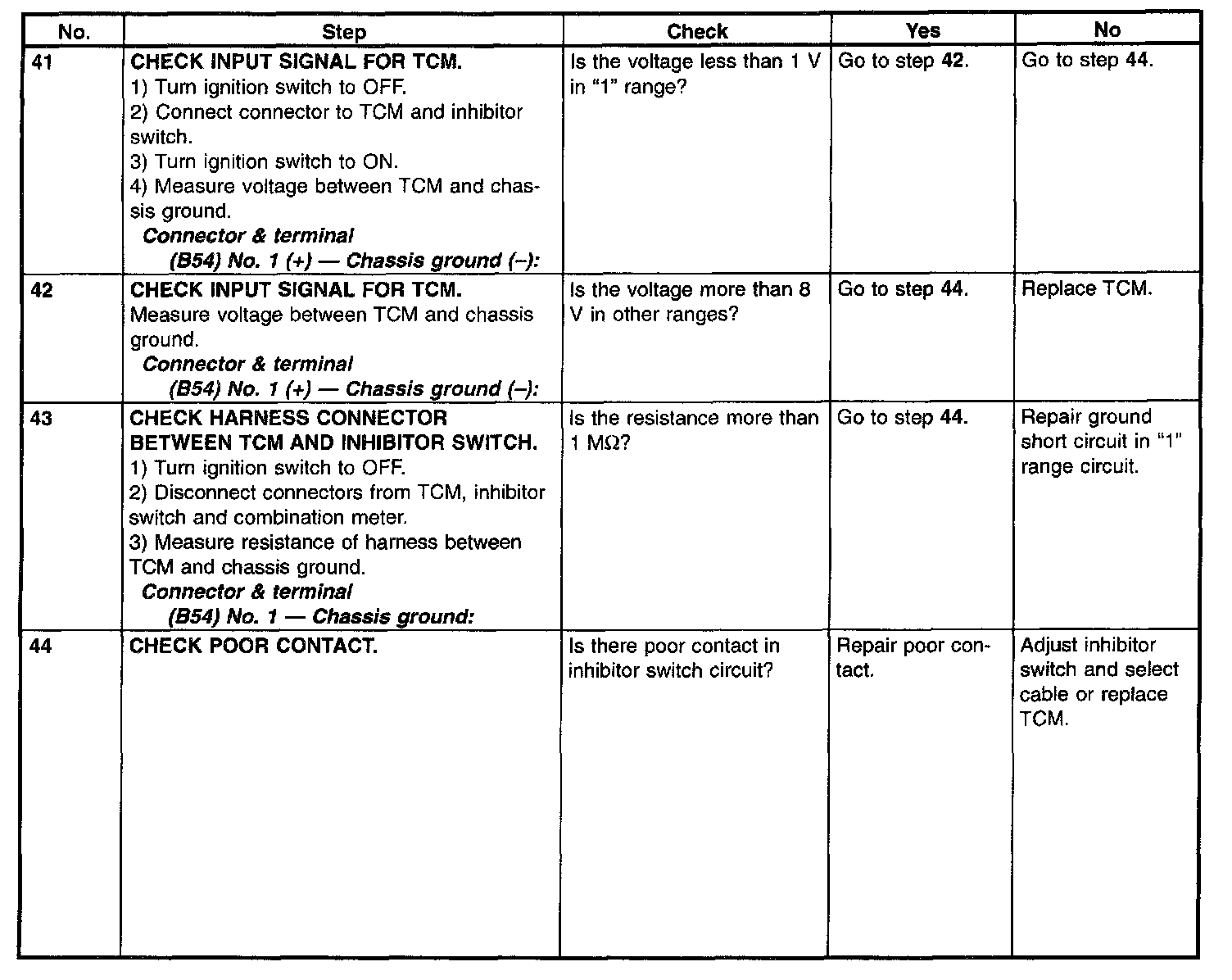

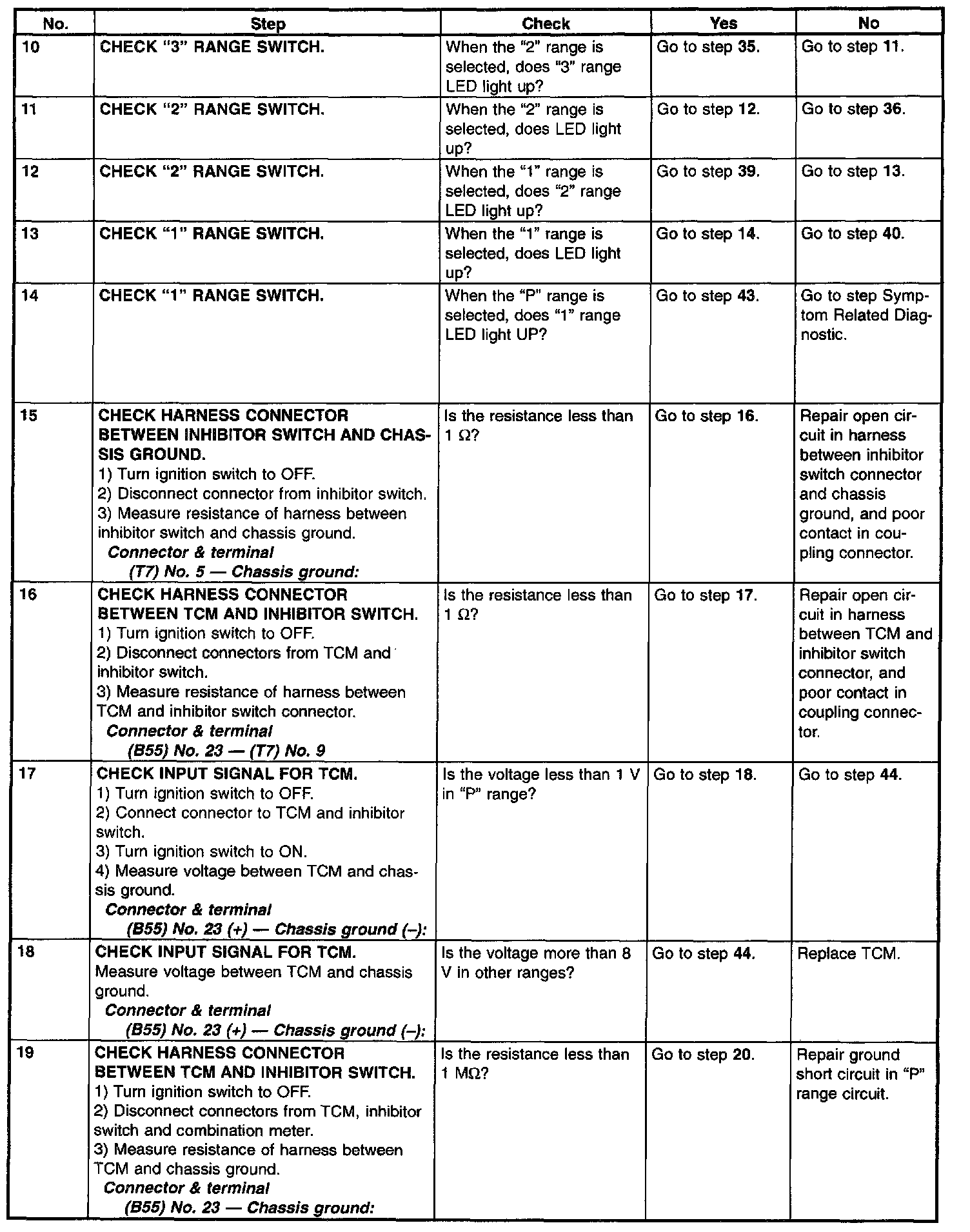

F: CHECK INHIBITOR SWITCH.

DIAGNOSIS:
Input signal circuit of inhibitor switch is open or shorted.

TROUBLE SYMPTOM:
^ Shift characteristics are erroneous.
^ Engine brake is not effected when selector lever is in "3" range.
^ Engine brake is not effected when selector lever is in "2" range.
^ Engine brake is not effected when selector lever is in "1" range.

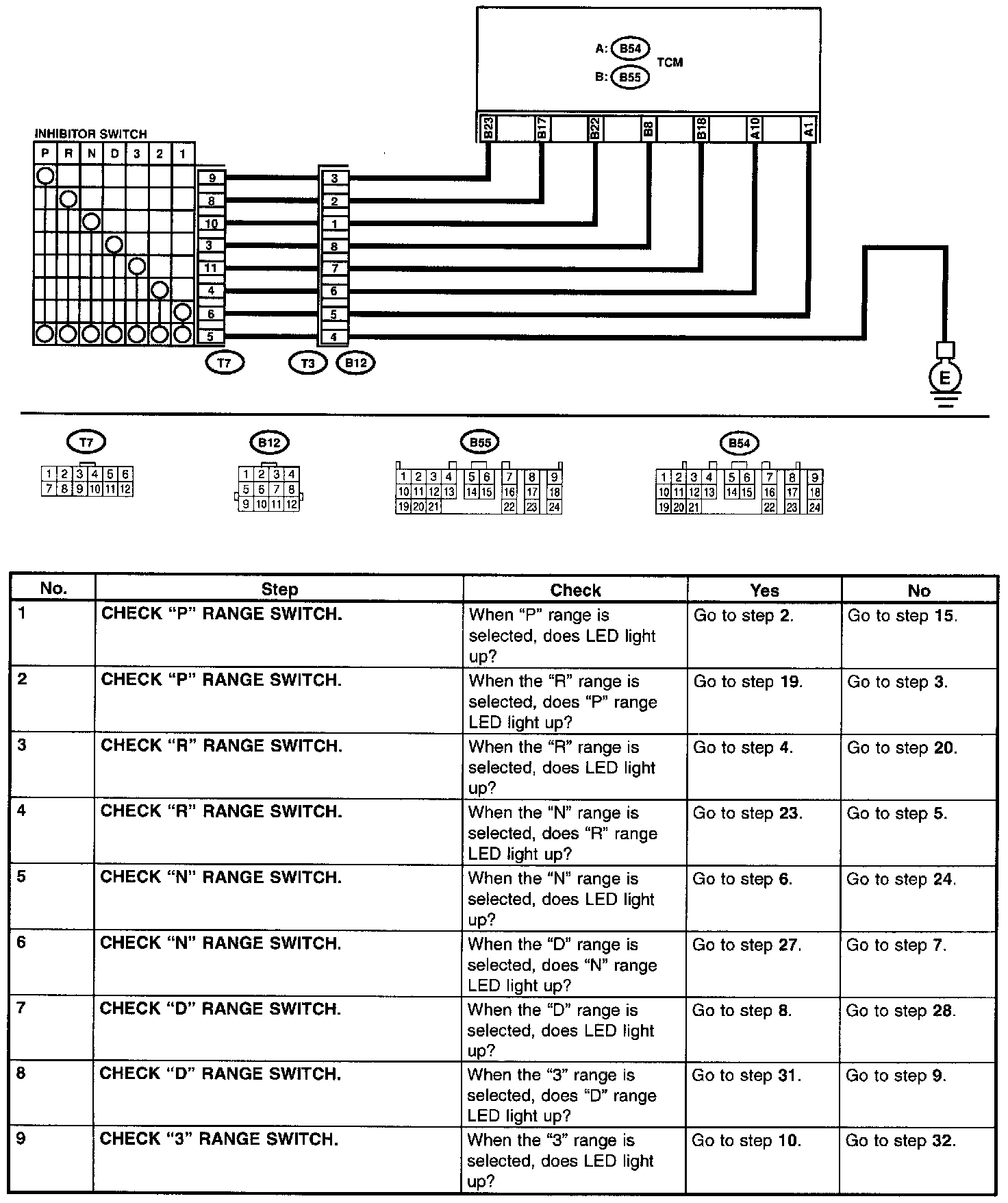

WIRING DIAGRAM
