System Specifications

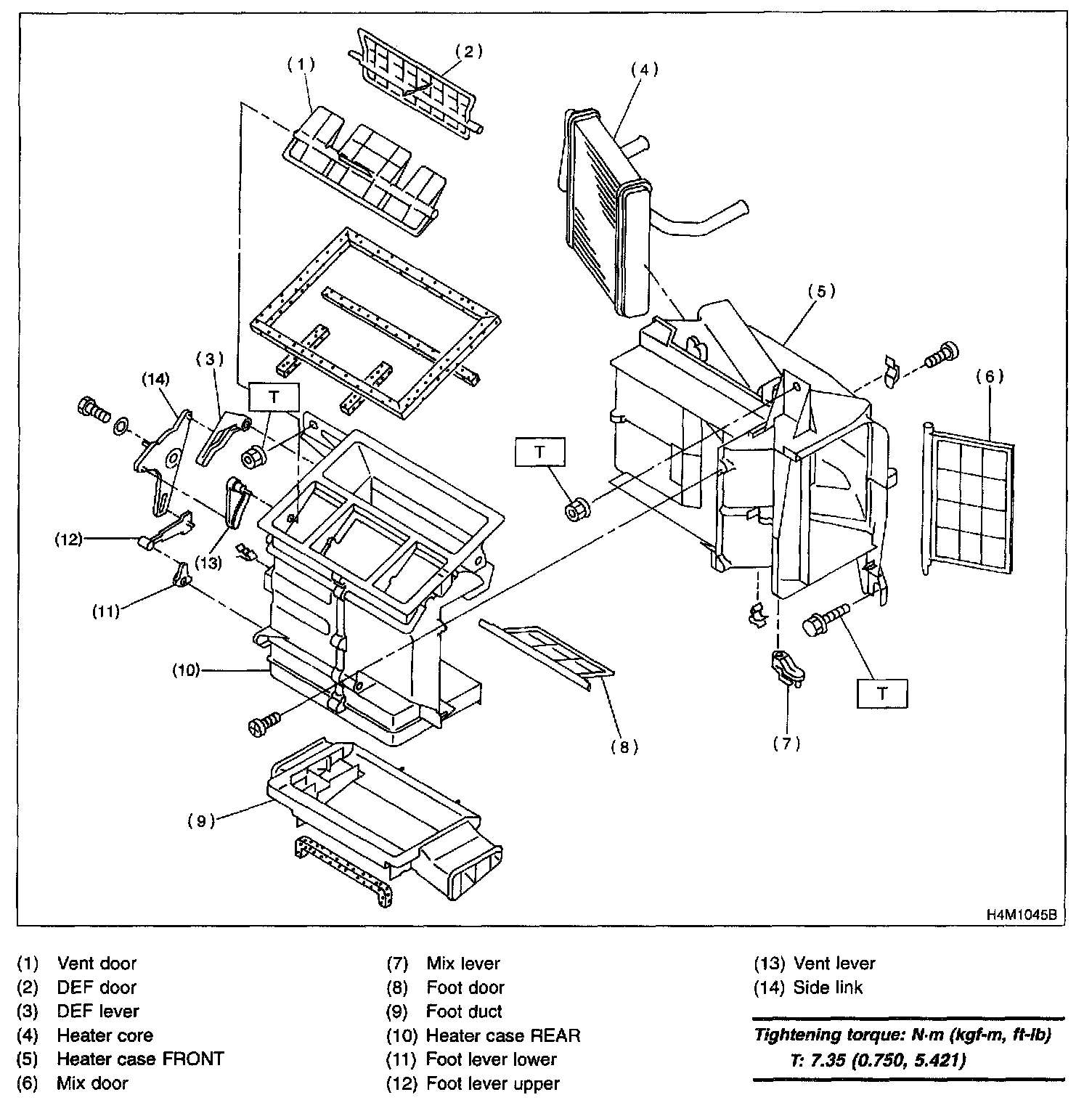

Heater Unit:

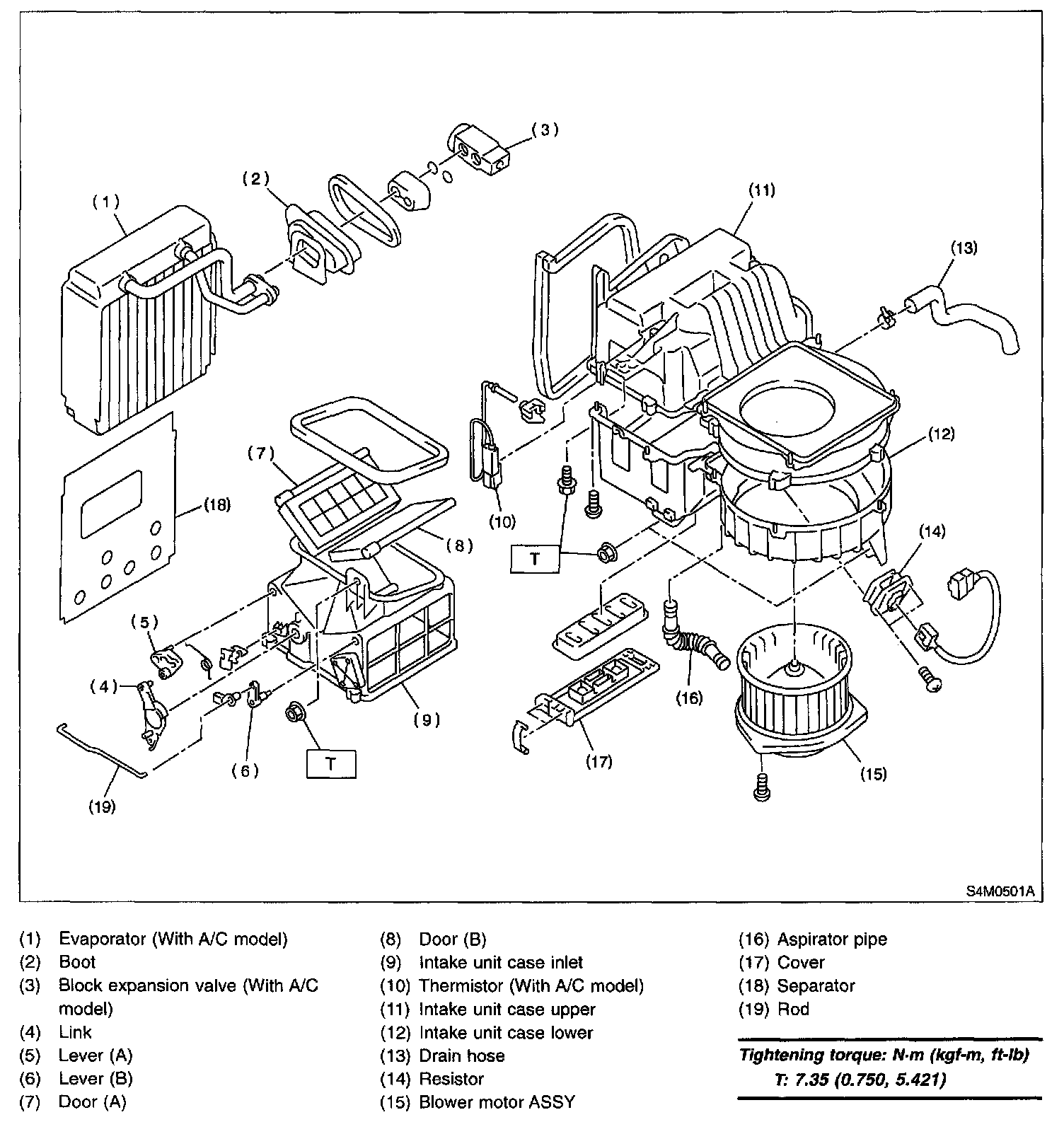

Intake Unit With Evaporator:



Compressor:

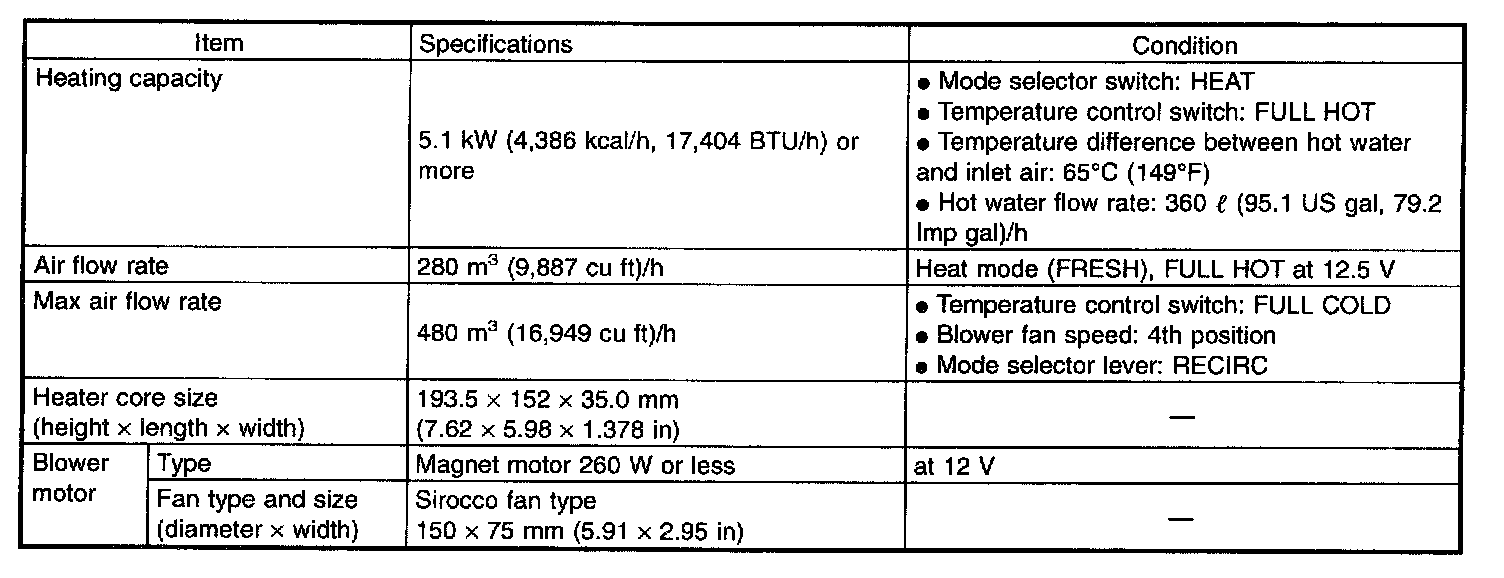

Heater System:



Air Conditioning Unit:

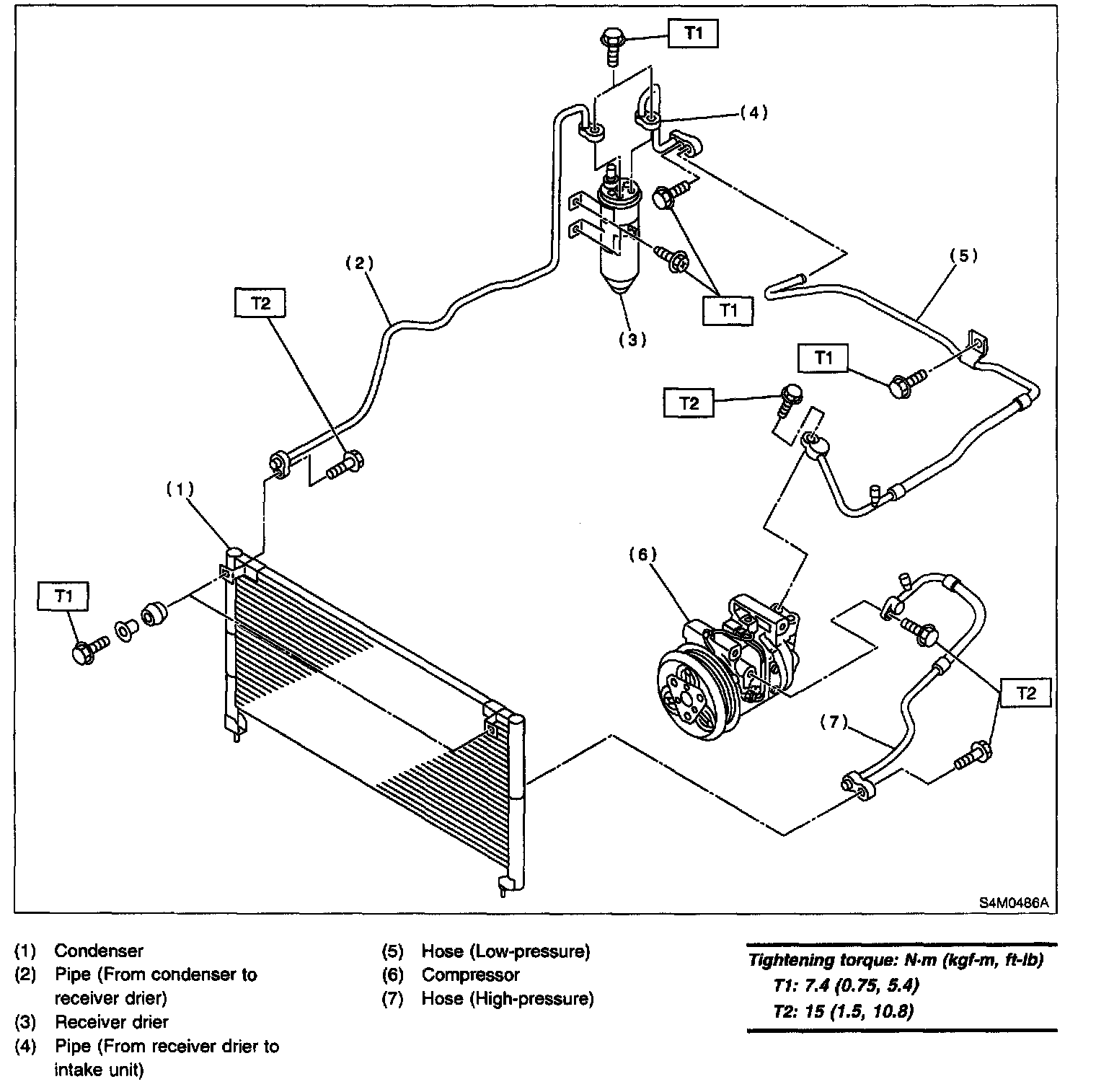

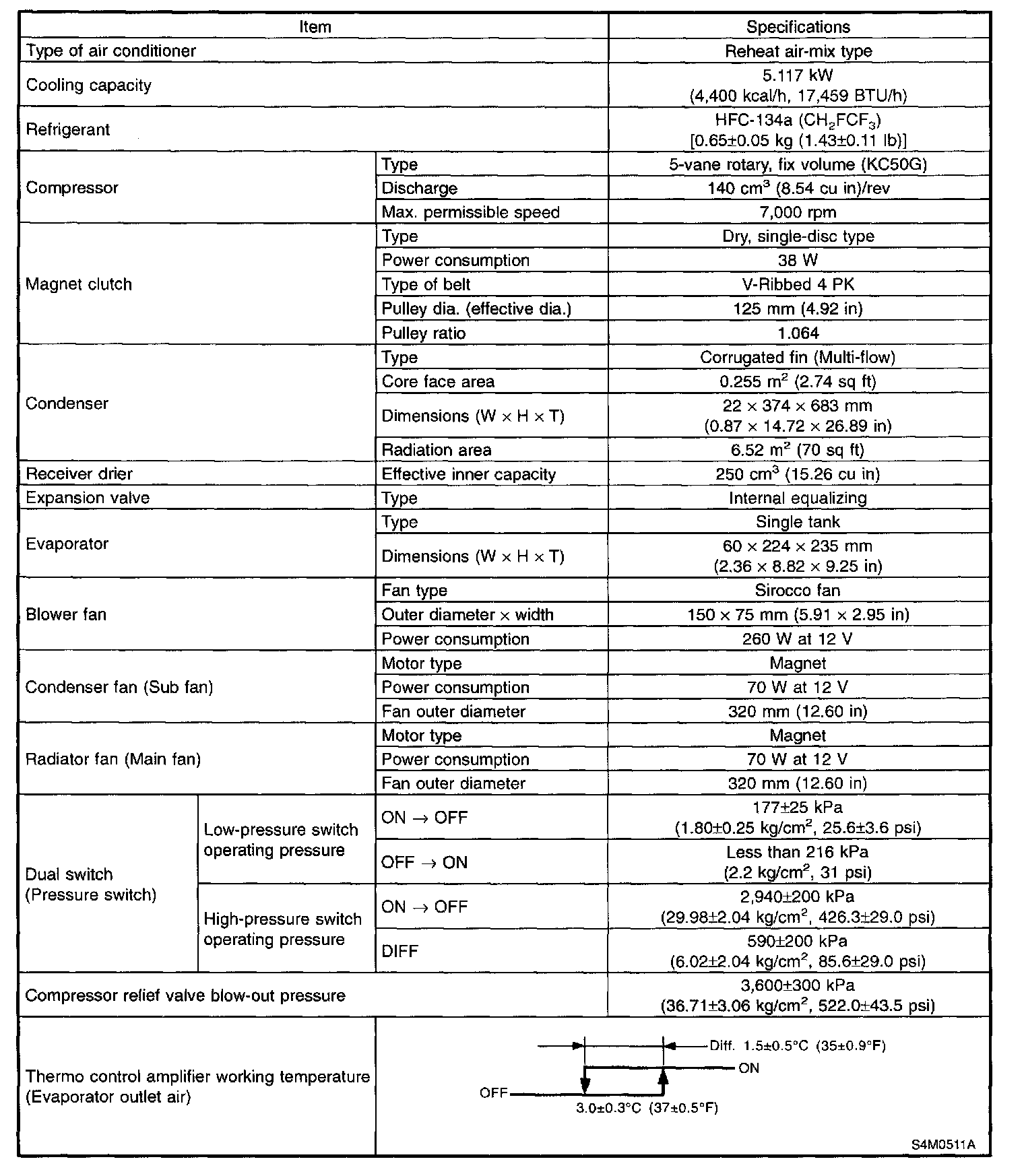

A/C System:
