M/T Torque Data

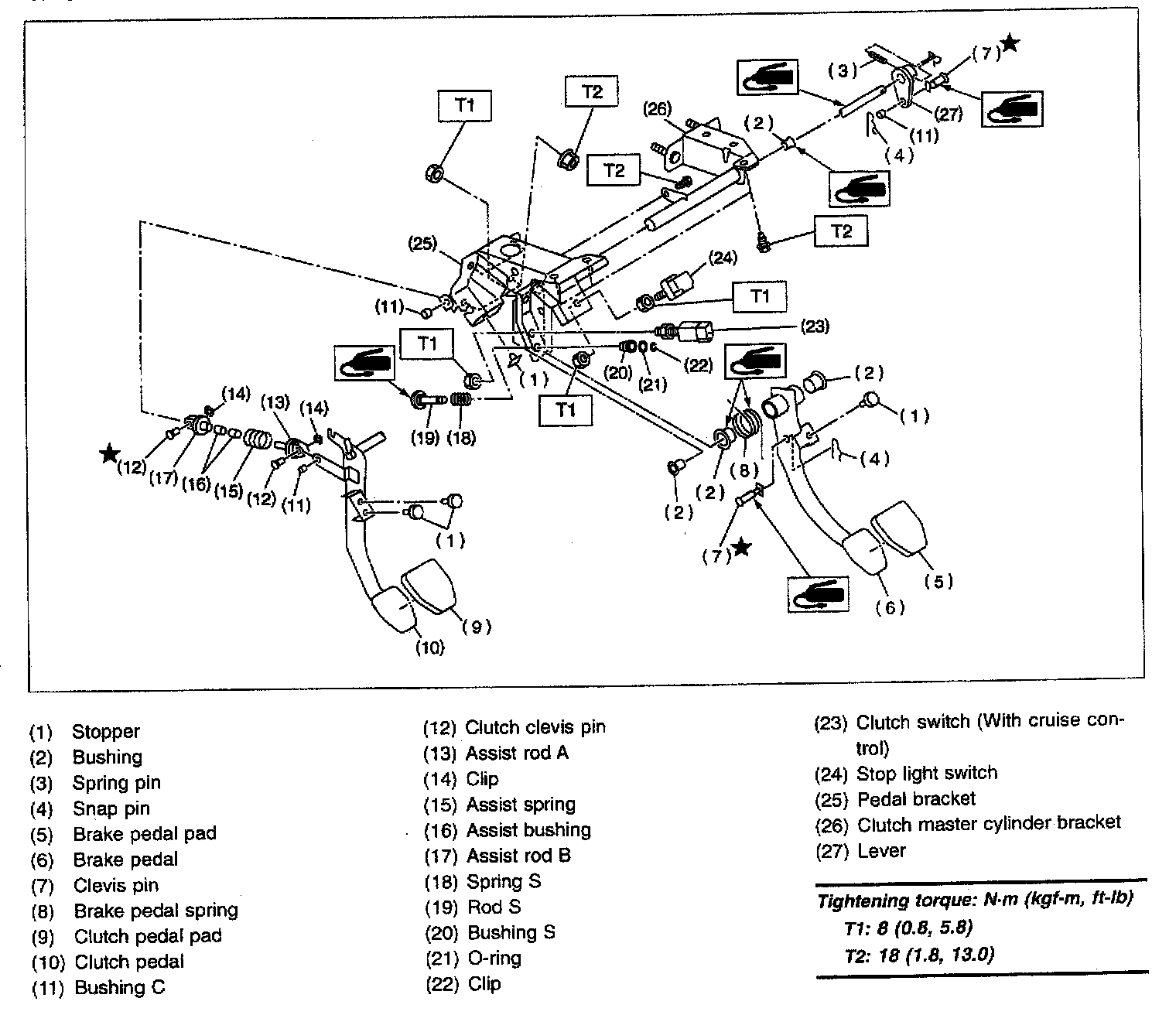

5-spd M/T, Transmission Clutch Pedal:

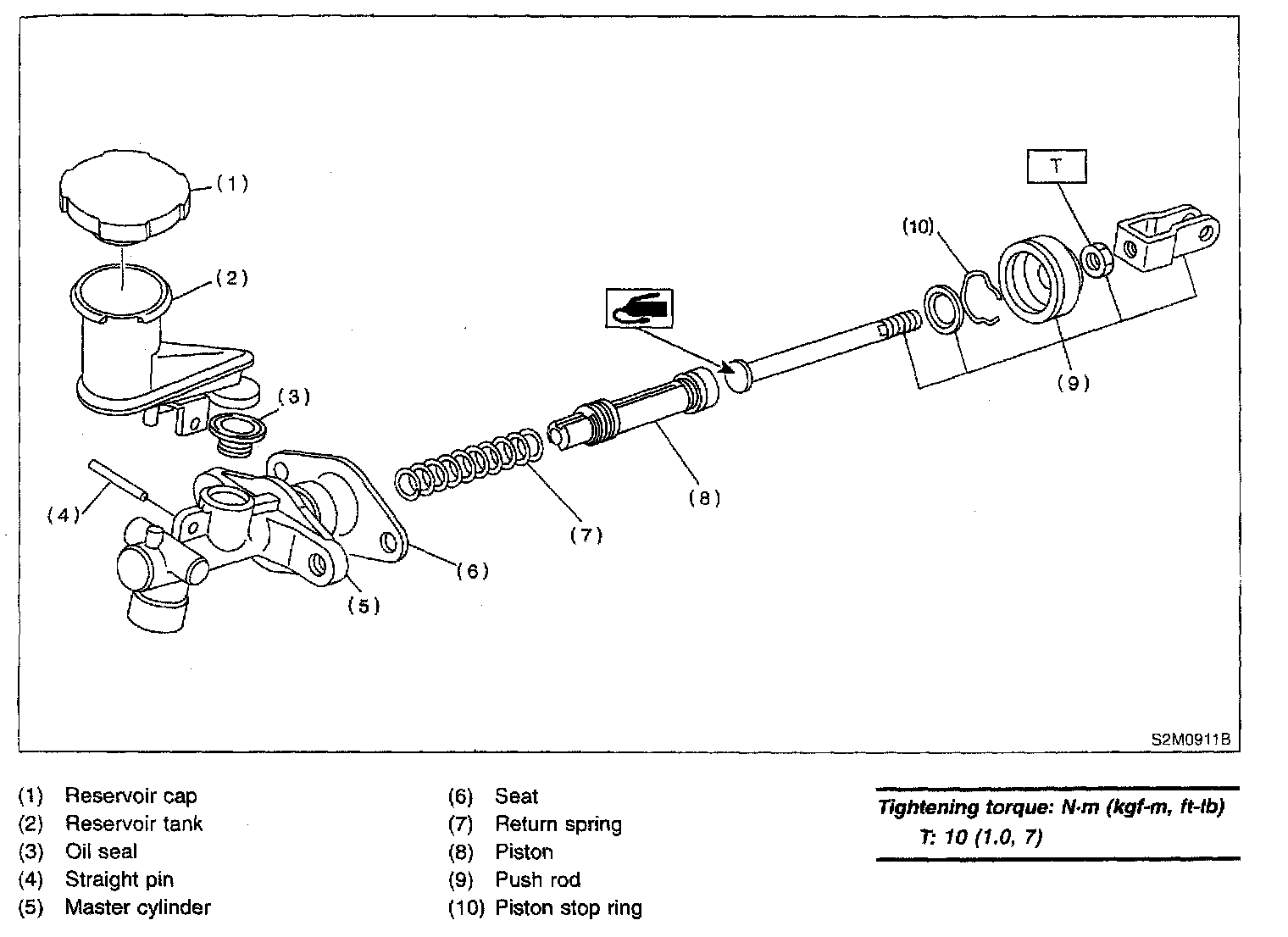

5-spd M/T, Transmission Clutch Master Cylinder:

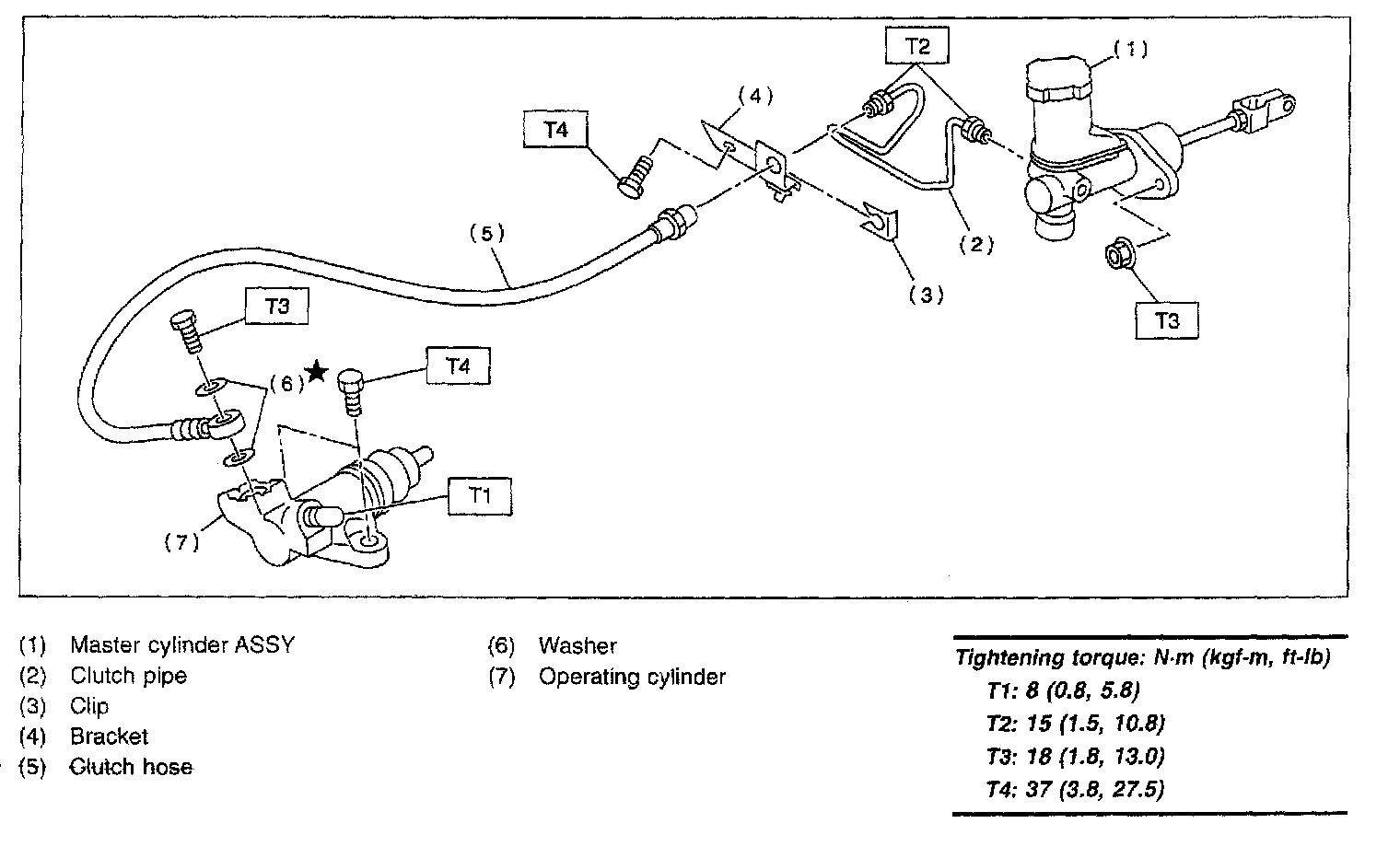

5-spd M/T, Transmission Clutch Pipe & Hose:

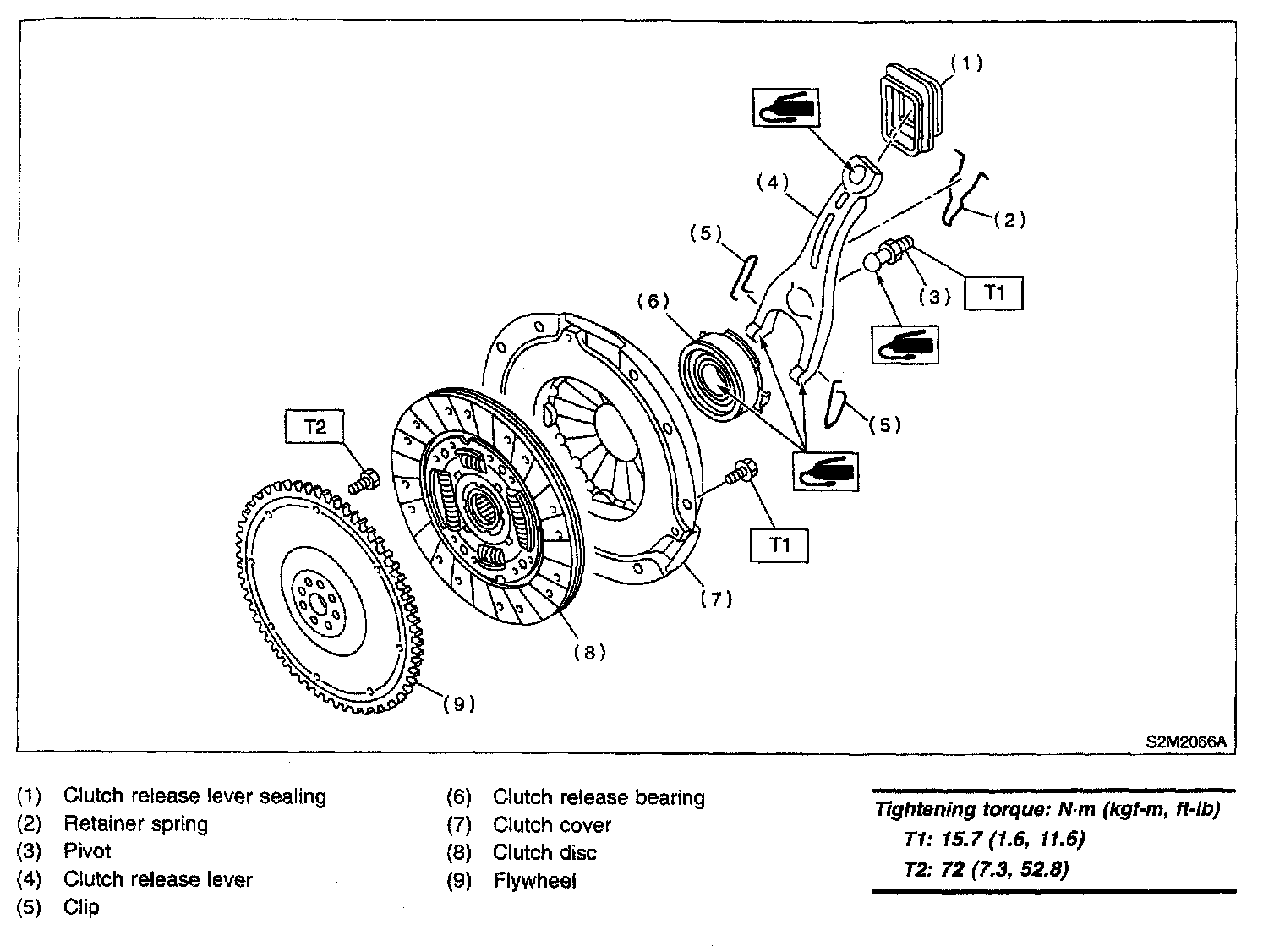

5-spd M/T, Transmission Clutch Assembly:

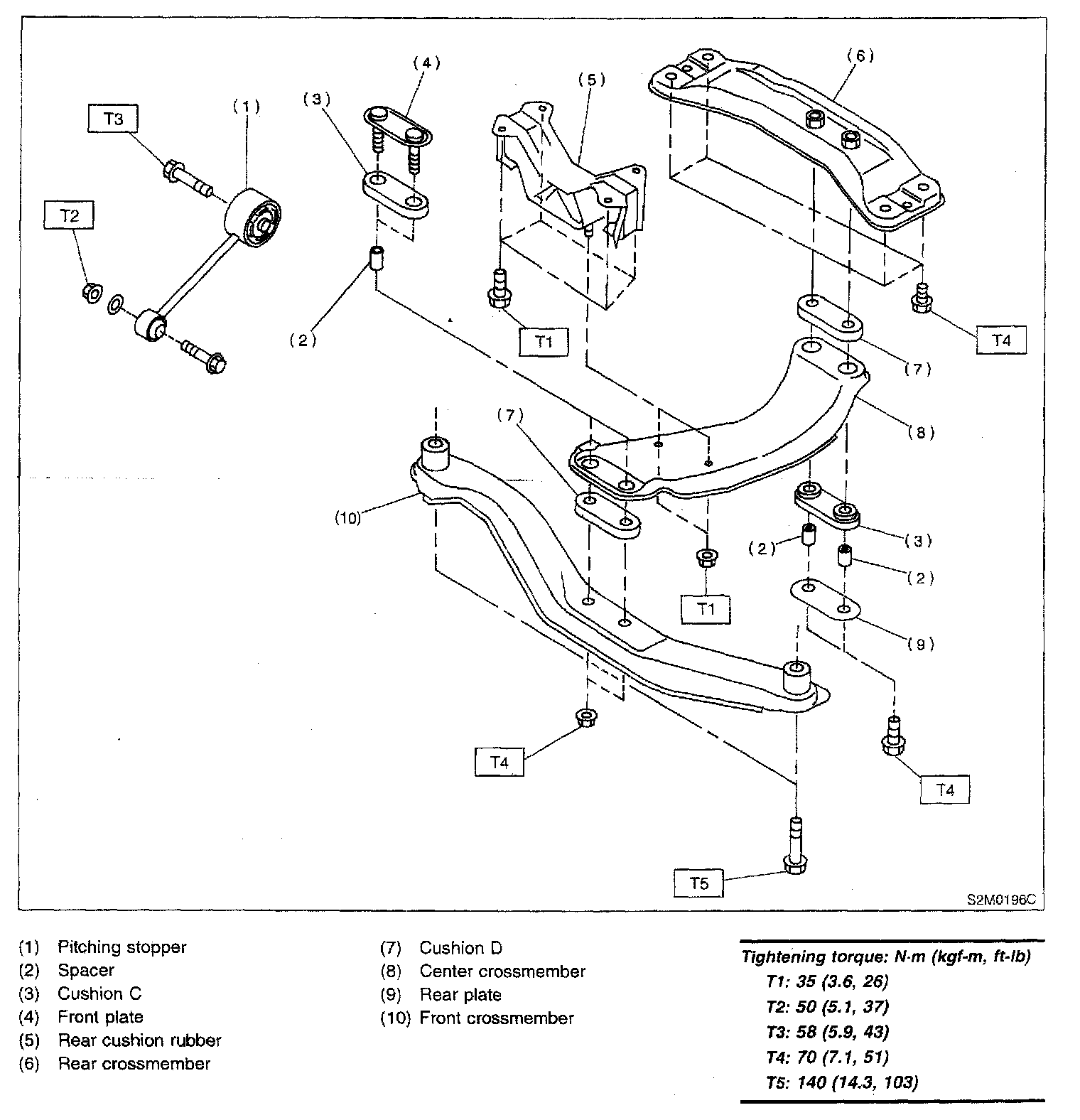

5-spd M/T, Transmission Mounting:

5-spd M/T, Transmission Front Differential:

5-spd M/T, Transfer Case & Transmission Extension:

5-spd M/T, Transmission Shifter Fork & Rod:

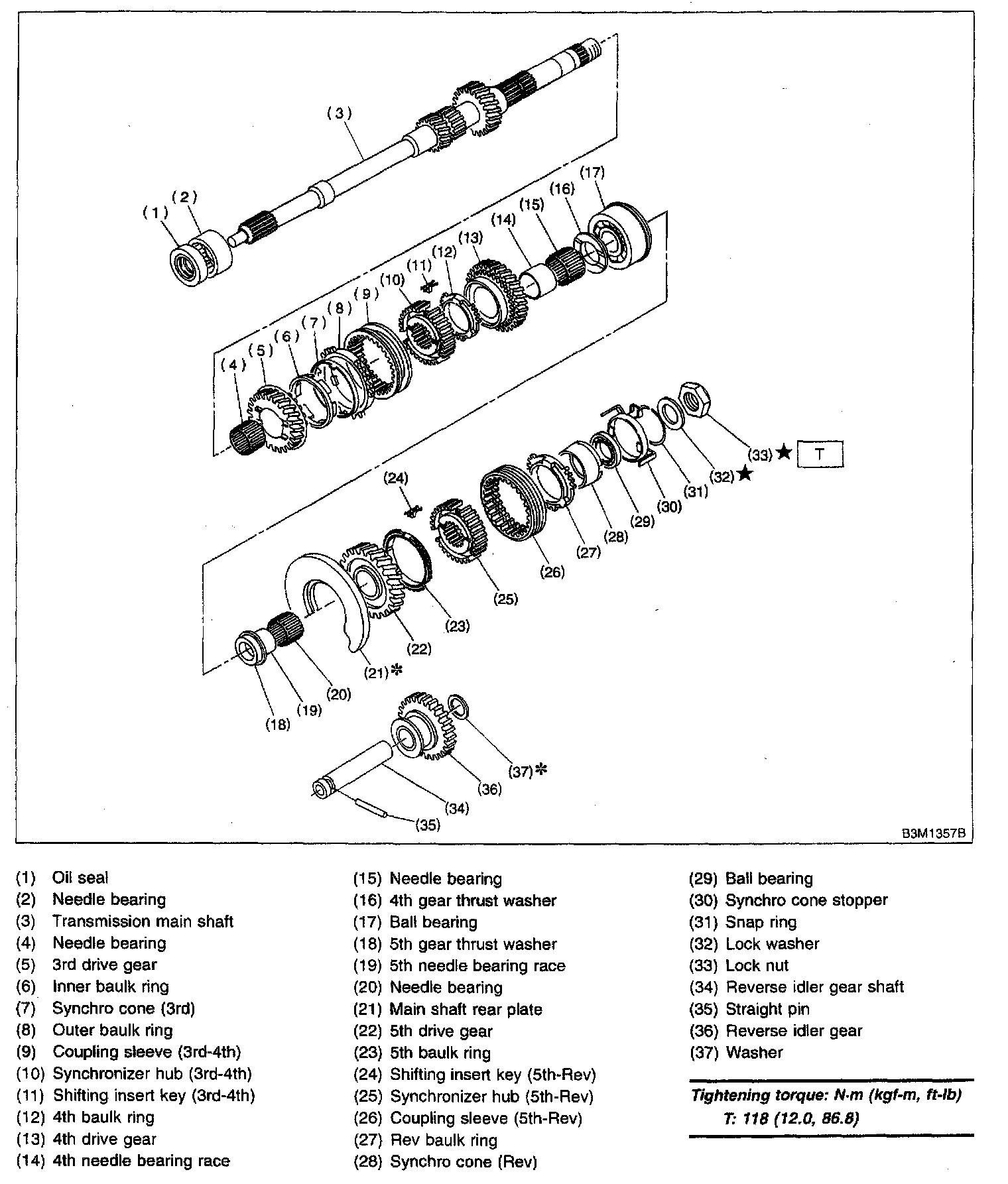

5-spd M/T, Transmission Main Shaft Assembly:

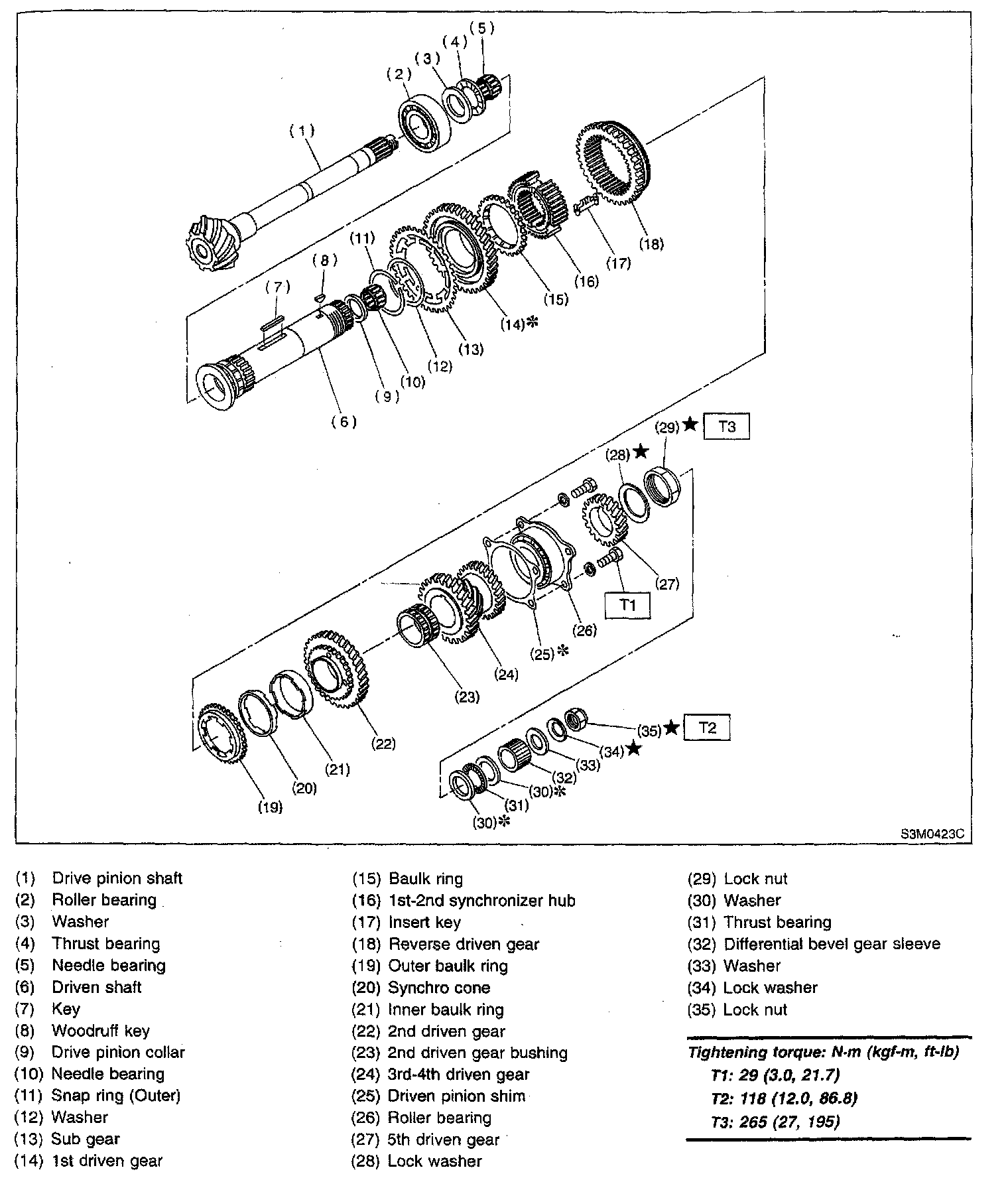

5-spd M/T, Transmission Drive Pinion Assembly:

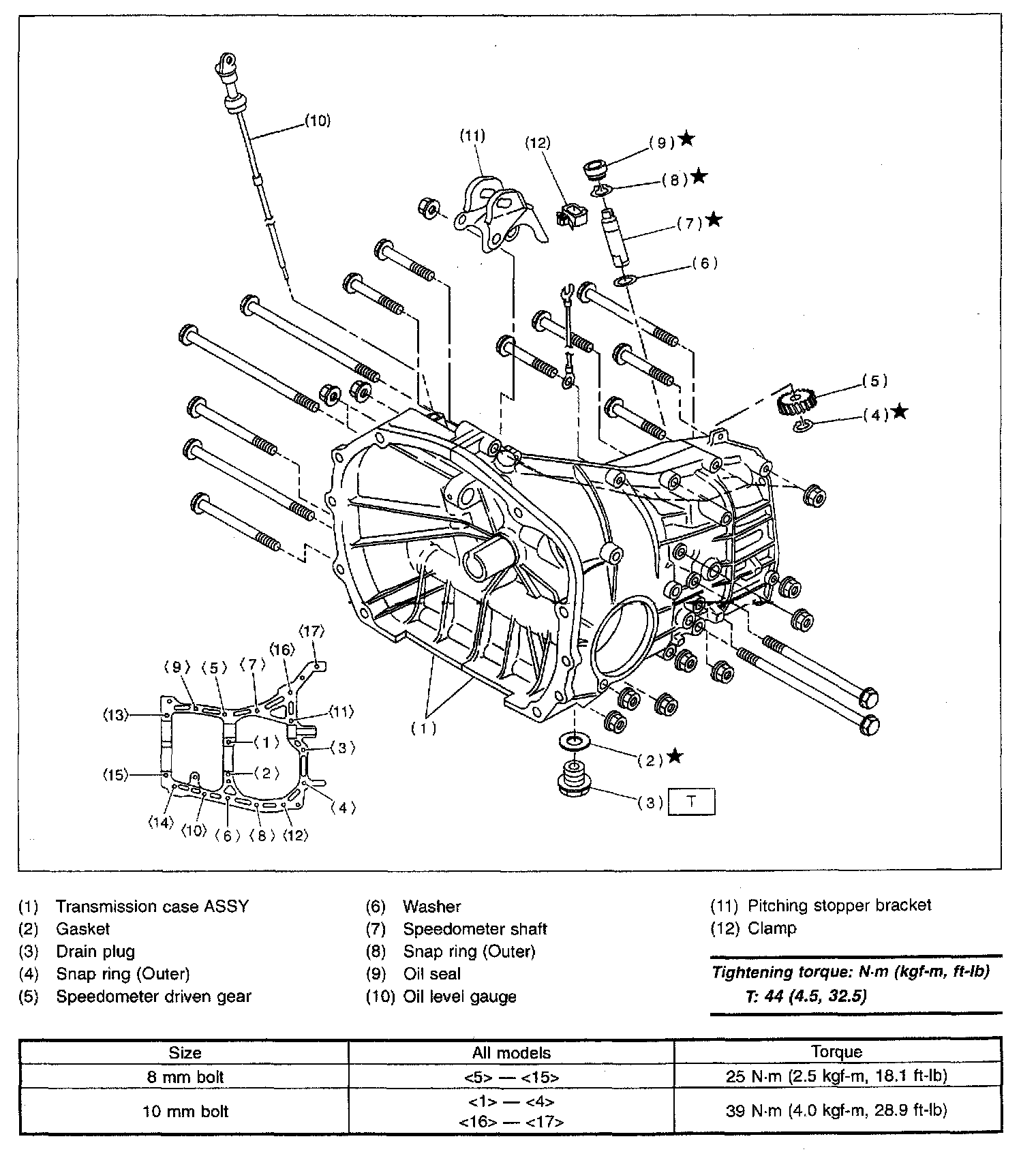

5-spd M/T, Transmission Case:

5-spd M/T, Transmission Control System (Gear Shift Lever):
