Driveshaft/Drive Axle System

DRIVE SHAFT SYSTEM

A: SPECIFICATIONS

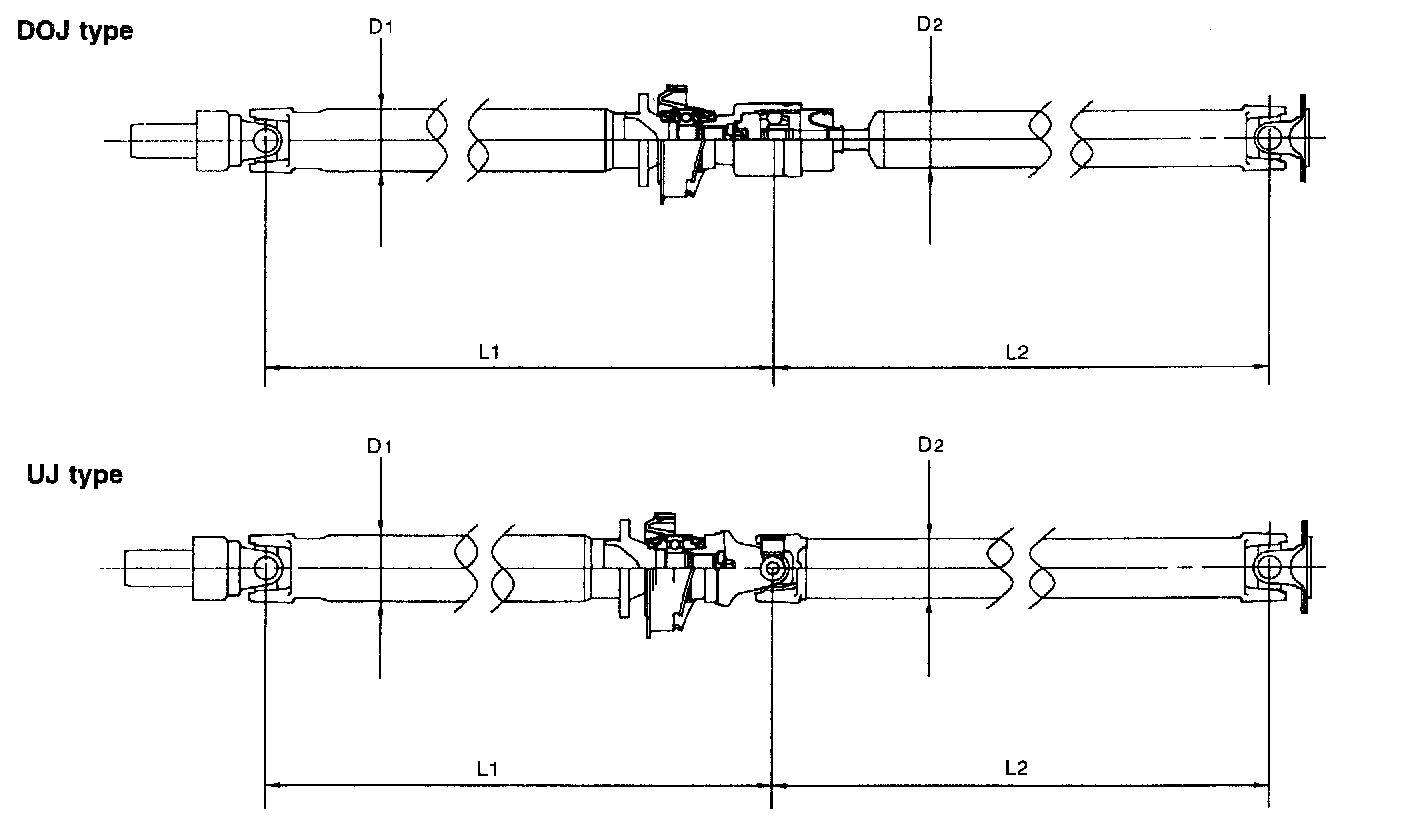

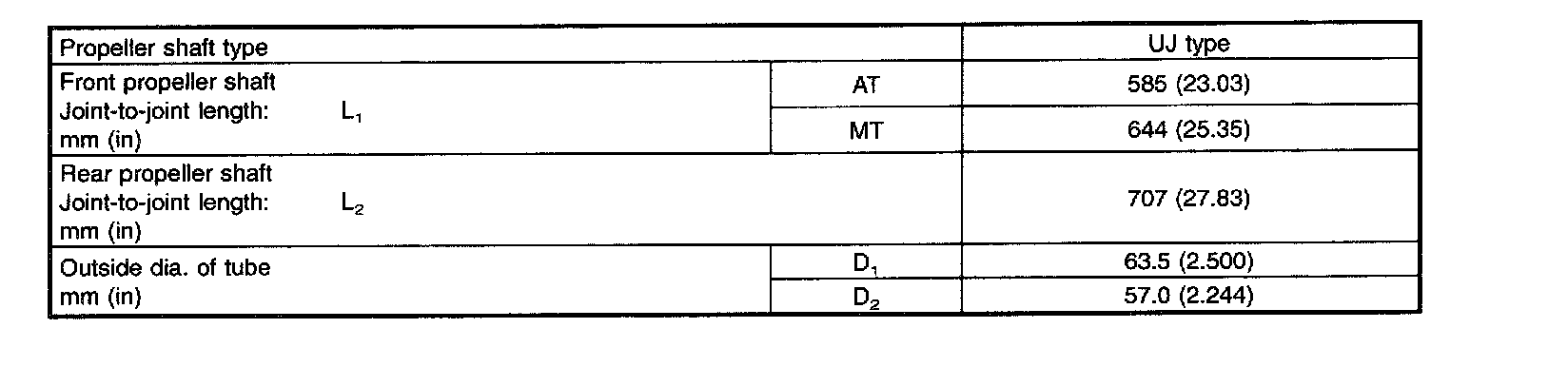

1. PROPELLER SHAFT

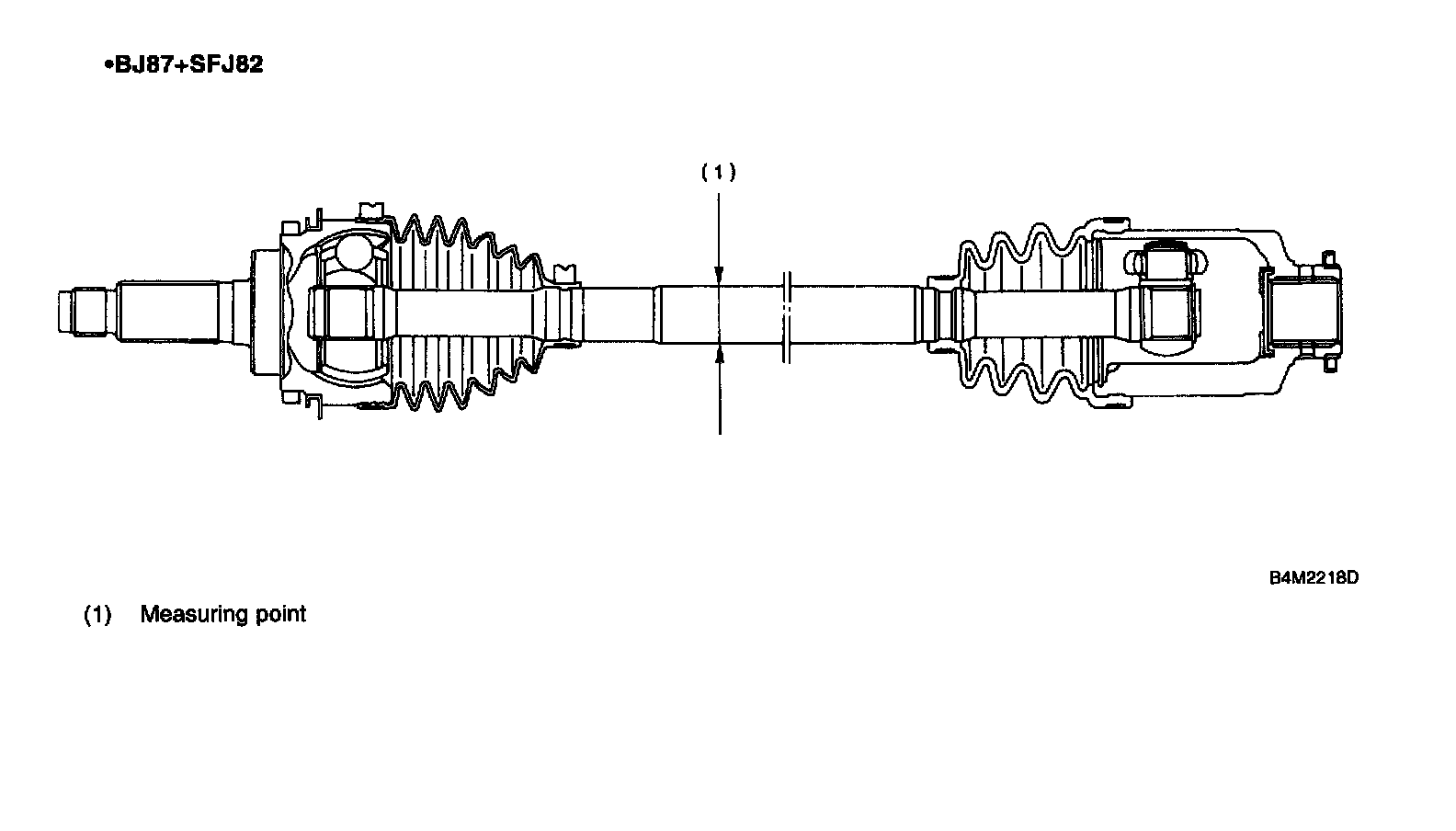

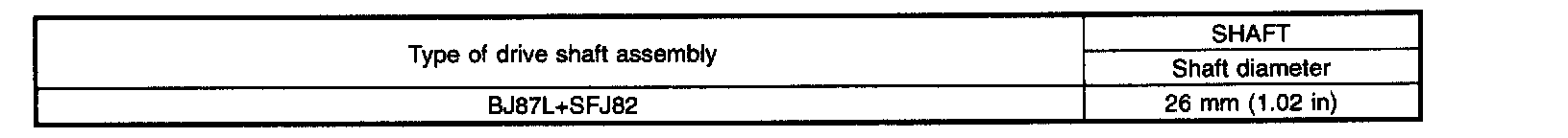

2. FRONT DRIVE SHAFT ASSEMBLY

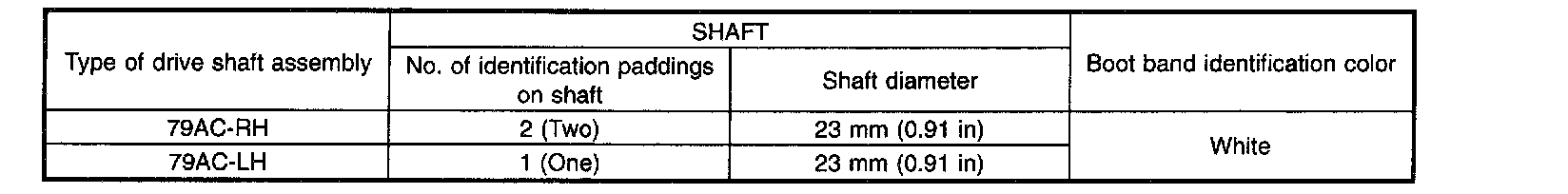

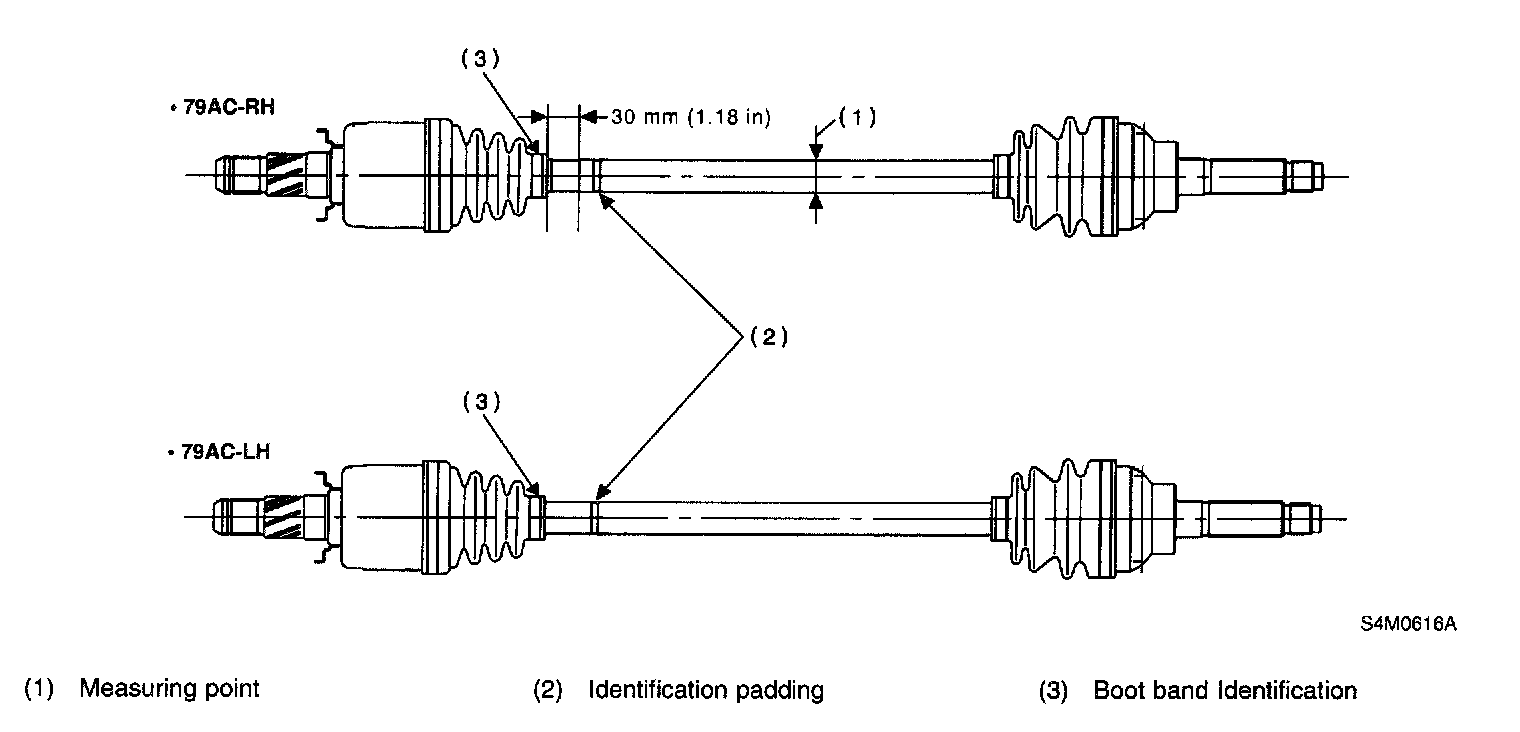

3. REAR DRIVE SHAFT ASSEMBLY

B: COMPONENT

1. PROPELLER SHAFT

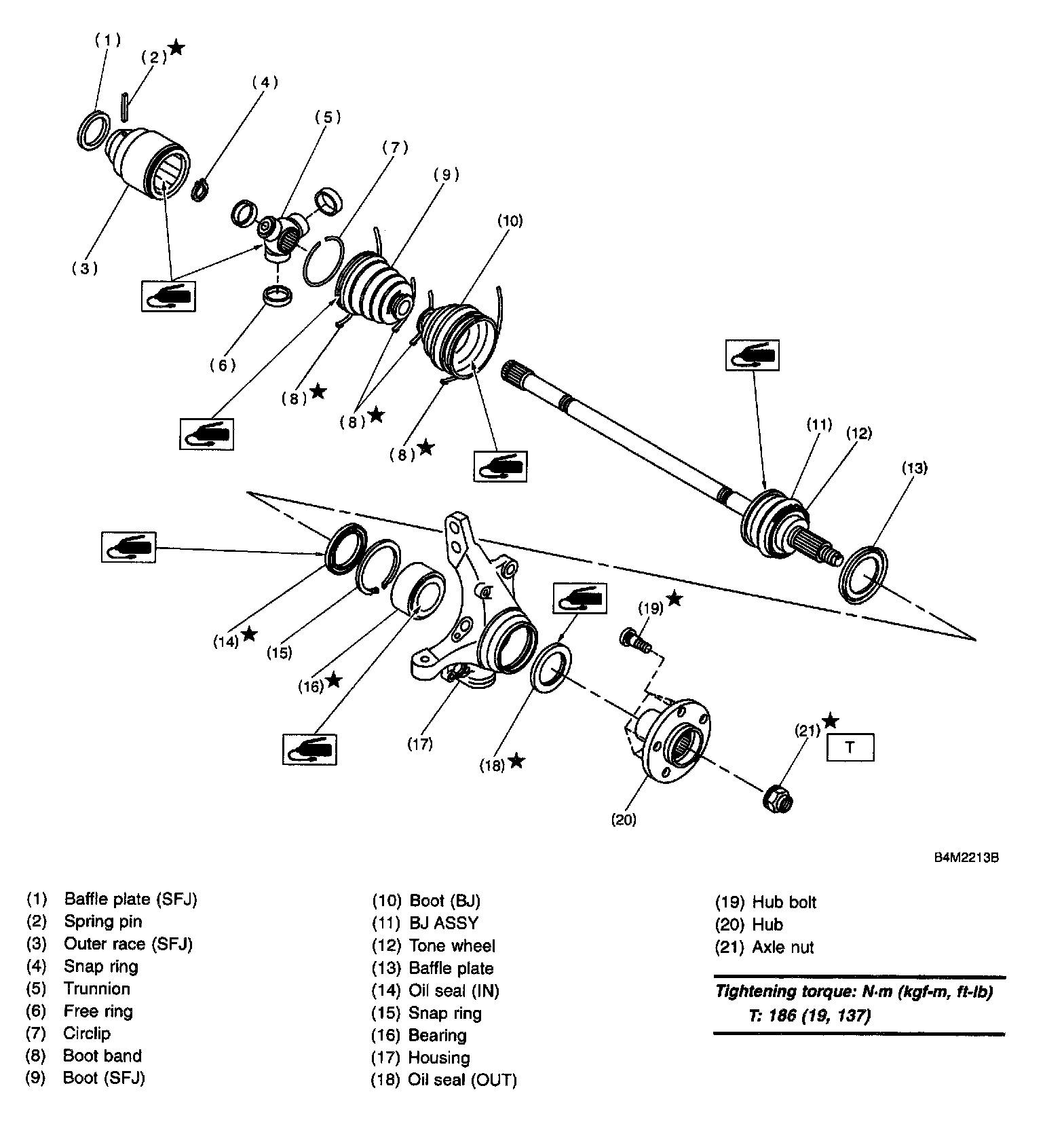

2. FRONT AXLE

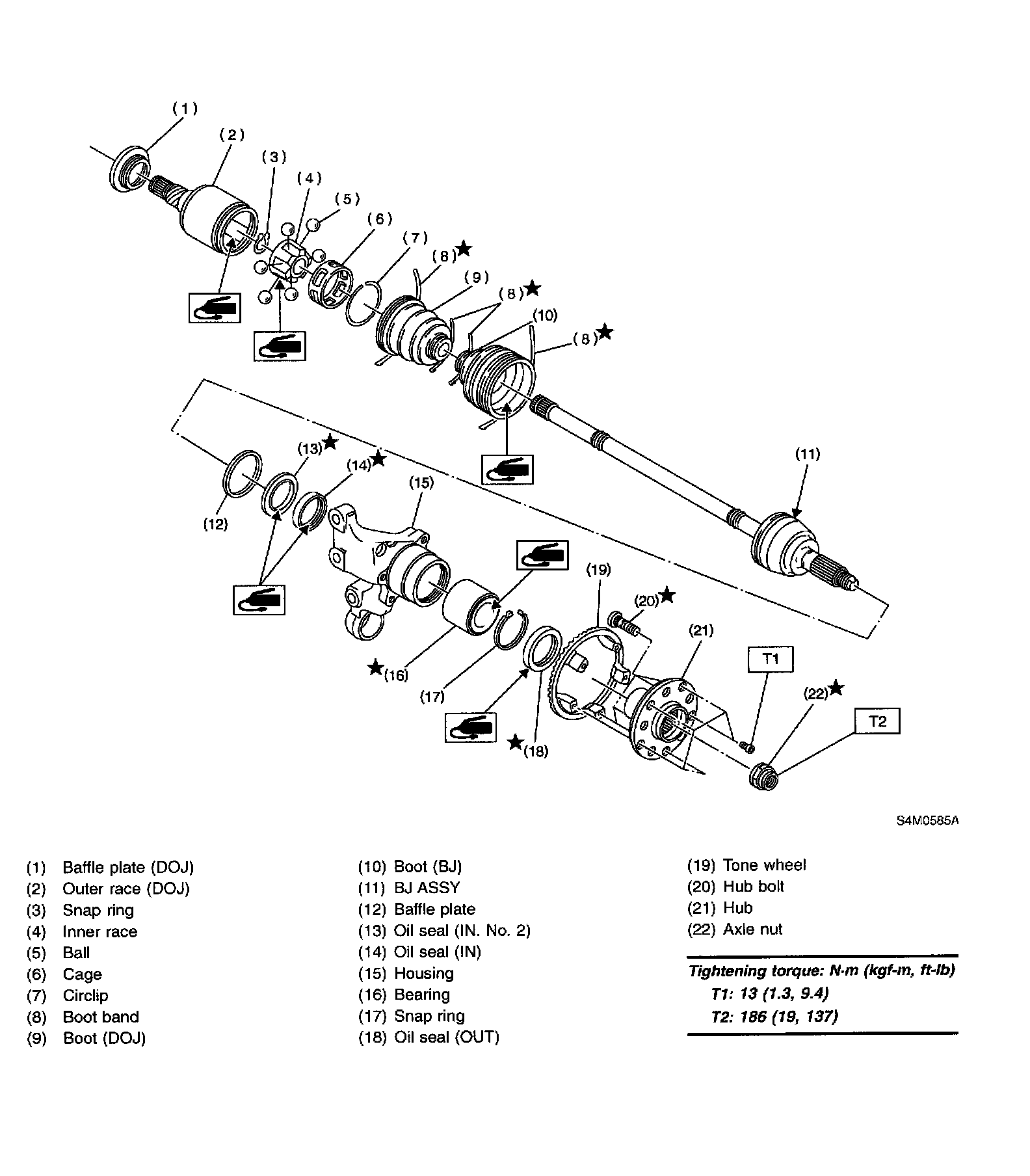

3. REAR AXLE
