Transfer Case Technical Data

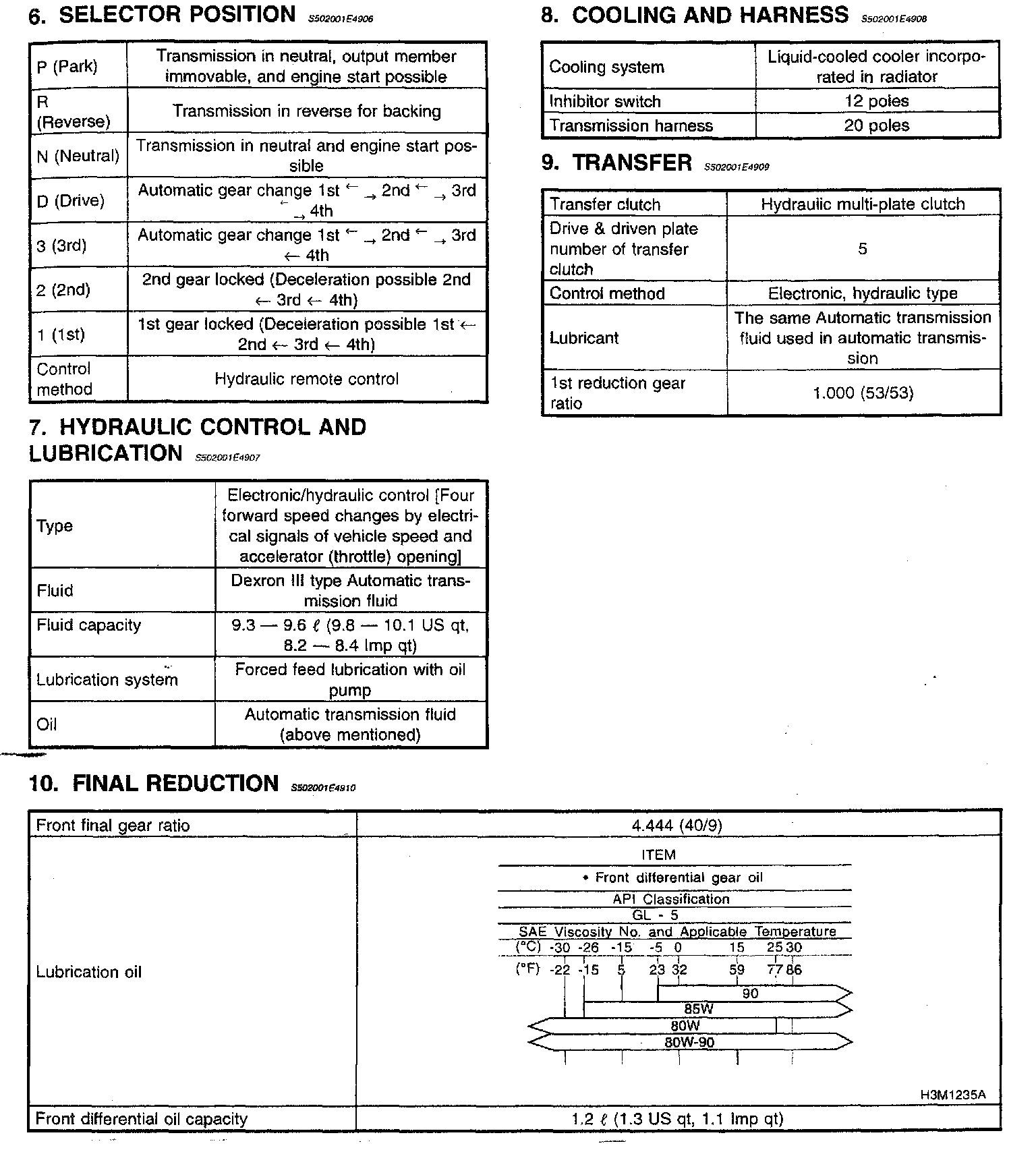

4-spd A/T, Transmission Service/Overhaul Data:

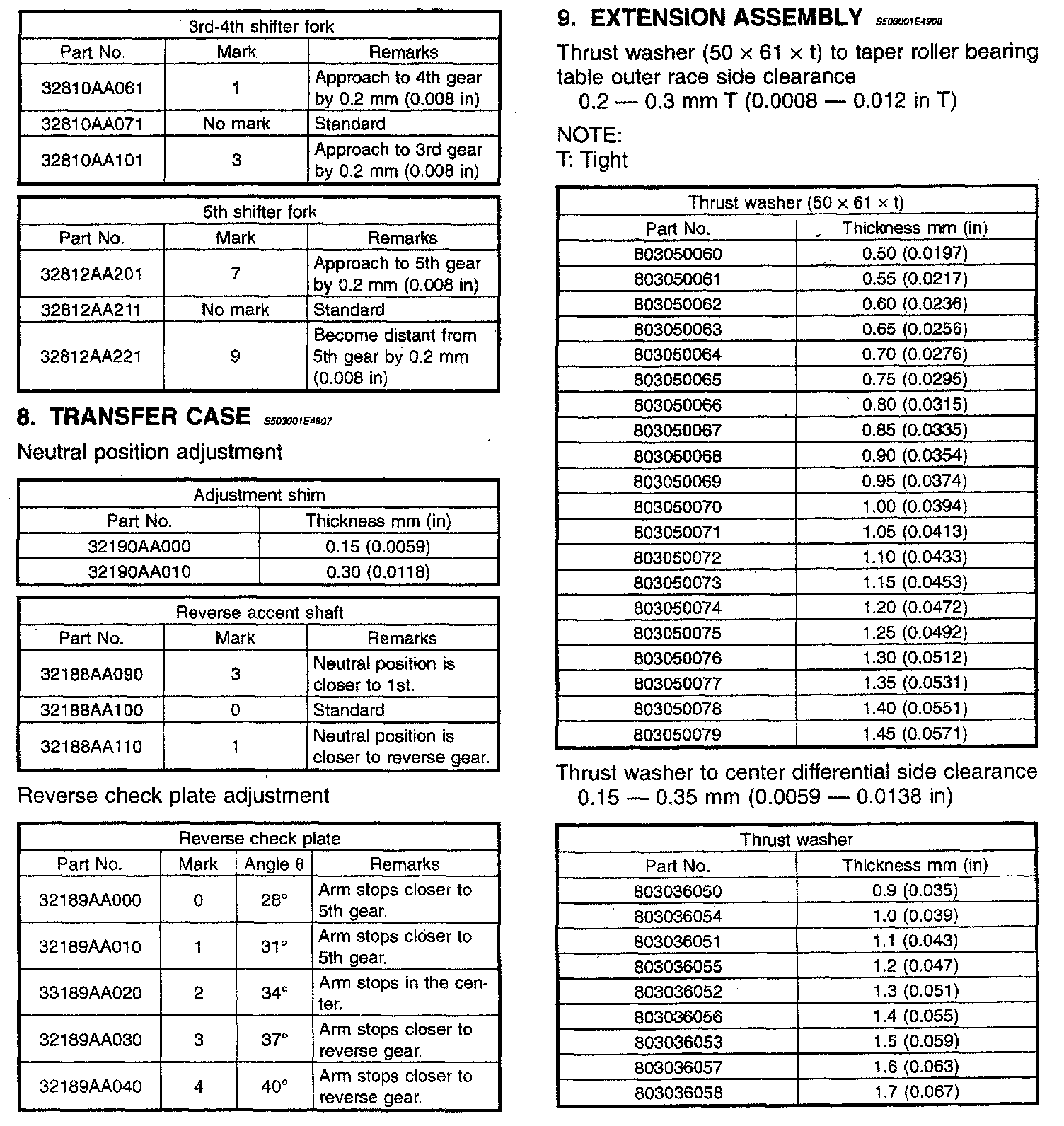

5-spd M/T, Transmission Service/Overhaul Data:

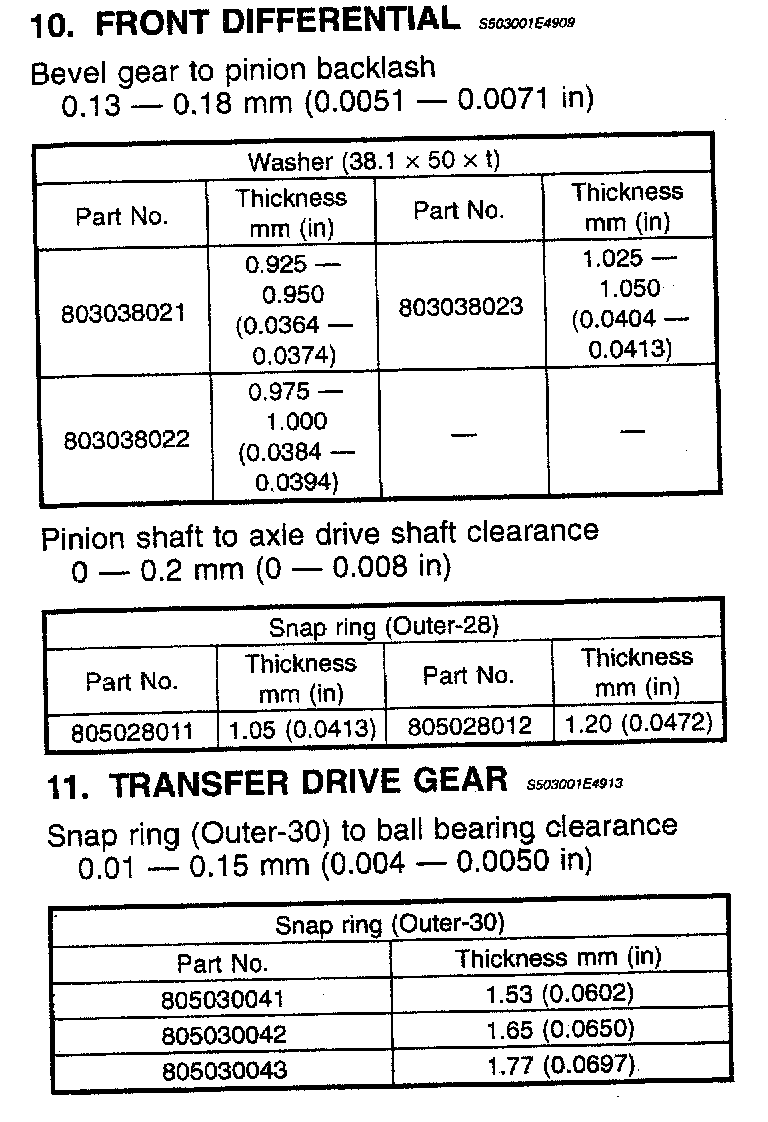

5-spd M/T, Transmission Front Differential & Transfer Drive Gear:
