Clutch Switch: Testing and Inspection

INSPECTION





1. If clutch switch does not operate properly (or if it does not stop at the specified position), replace with a new one.

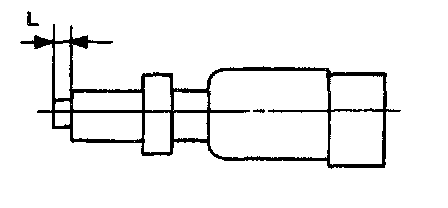

Specified position: L 2 [+1.5/0] mm (0.079 [+0.0059/0] inch)
2. Check clutch switch continuity. If continuity is not as specified, replace the switch.
1. Disconnect the clutch switch connector.

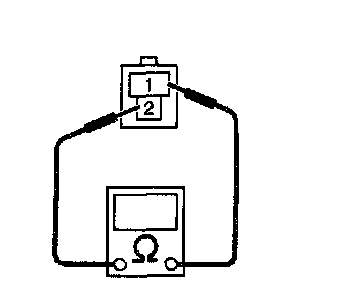

2. Measure the resistance between 1 and 2 of switch terminal.
Terminals/Specified resistance
When clutch pedal depressed: 1 - 2/Less than 1 Ohm
Terminals/Specified resistance
When clutch pedal not depressed: 1 - 2/More than 1 Mohm





^ Clutch switch (Starter interlock)





^ Clutch switch (With cruise control)
