Ignition Lock: Testing and Inspection

INSPECTION

1. Remove the instrument panel lower cover.
2. Remove the lower column cover.
3. Unfasten the hold-down clip which secures the harness and disconnect the connector of the ignition switch from the body harness.

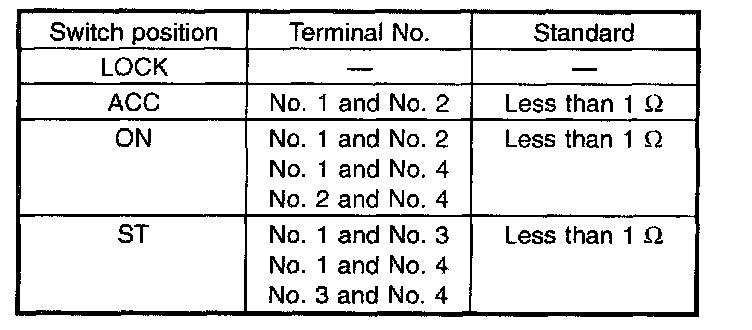

4. Turn the ignition key plate to each position and measure the ignition switch resistance.
If NG, replace the ignition switch.
