Shift Interlock: Service and Repair
A: REMOVAL 1.
Disconnect battery ground cable.
2.

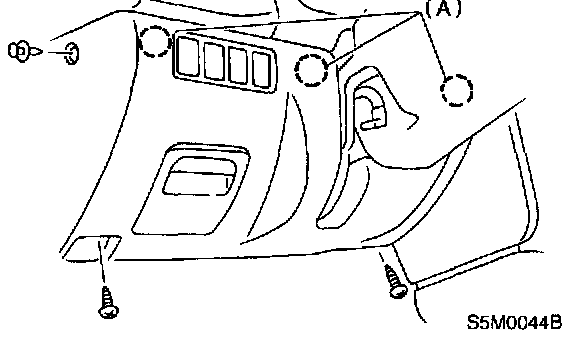

Remove the lower cover and then disconnect connector.
3.

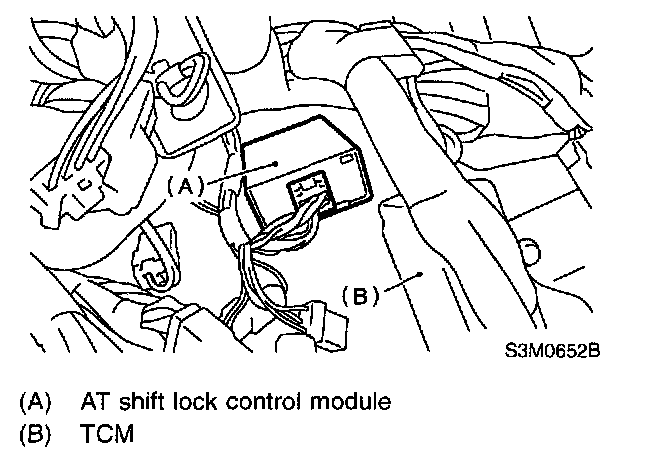

Disconnect connector from AT shift lock control module.
4.
Remove the AT shift lock control module.
B: INSTALLATION Install in the reverse order of removal.
