Service

CONTROL SYSTEMS





A: SPECIFICATIONS

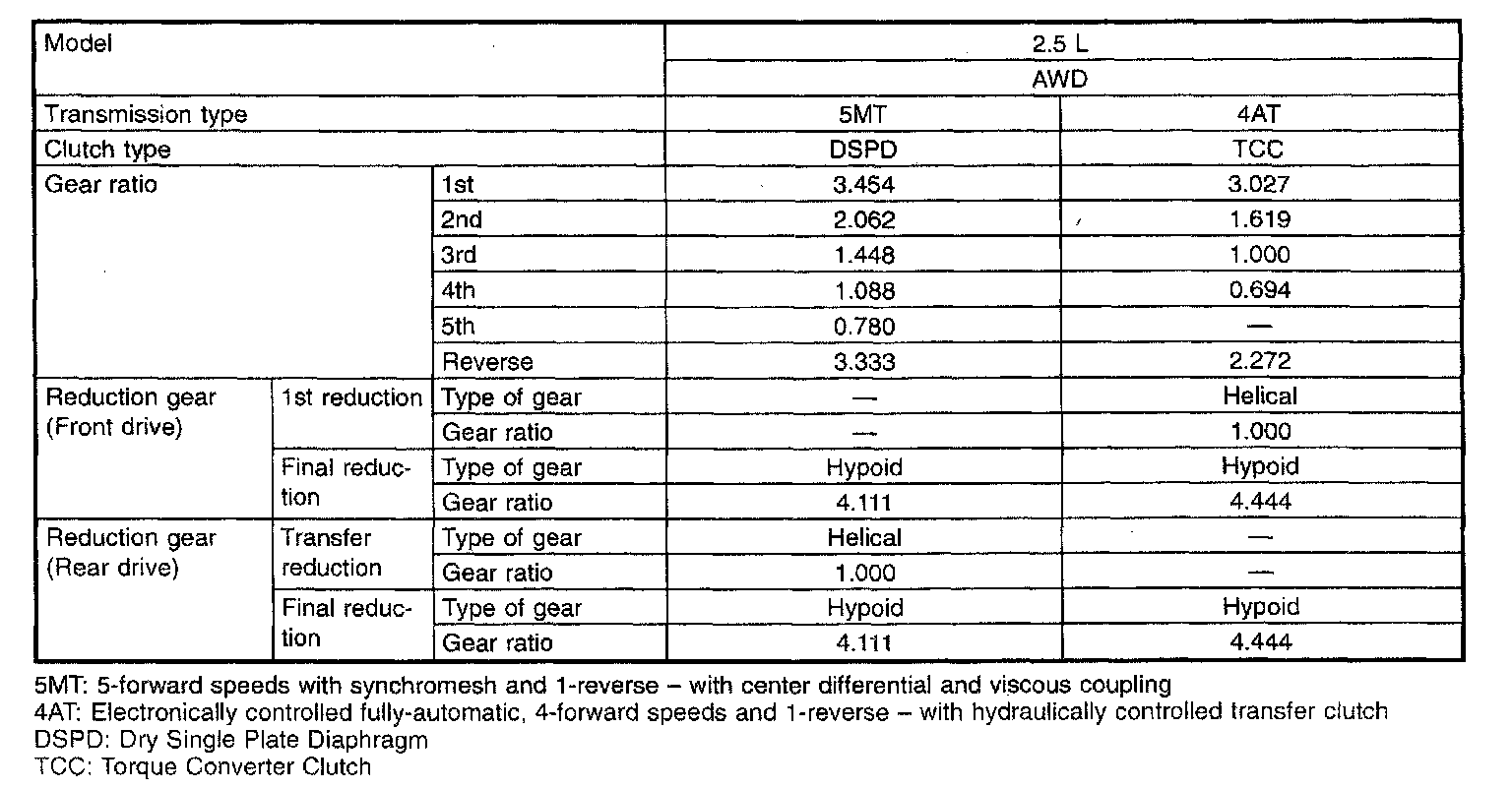

5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:






B: COMPONENT

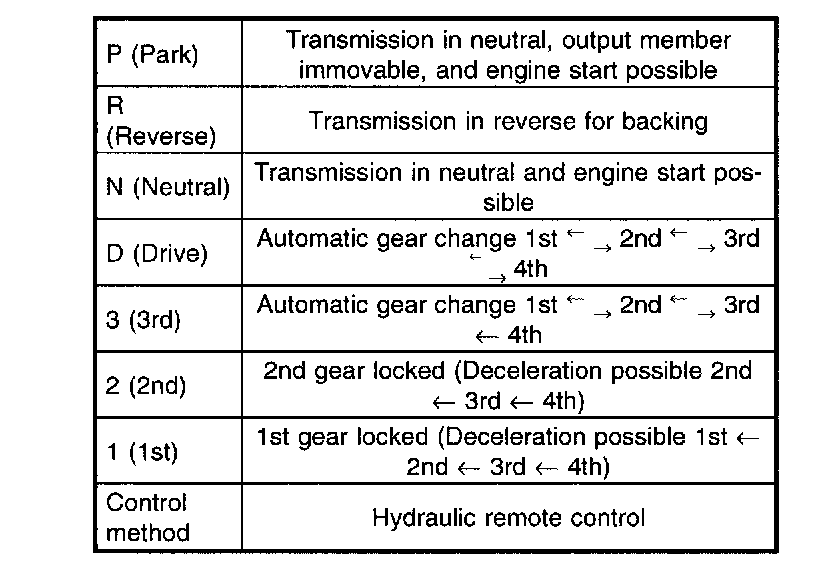

1. AT SELECT LEVER

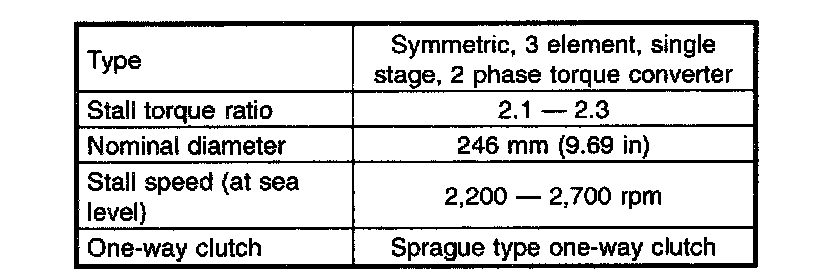

1. TORQUE CONVERTER CLUTCH

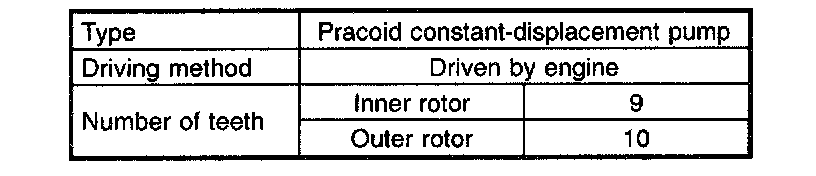

2. OIL PUMP





3. TRANSMISSION CONTROL ELEMENT

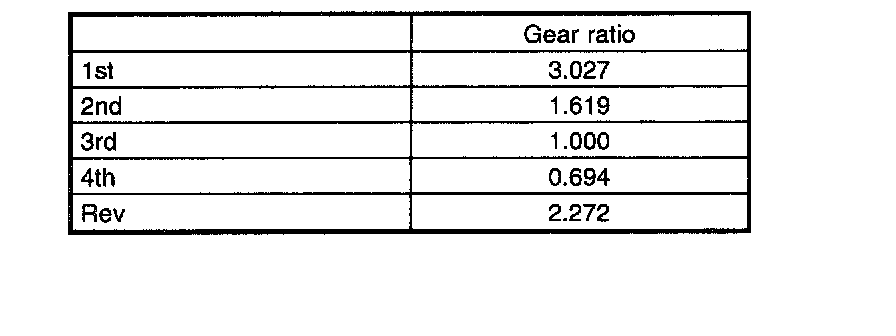

4. TRANSMISSION GEAR RATIO

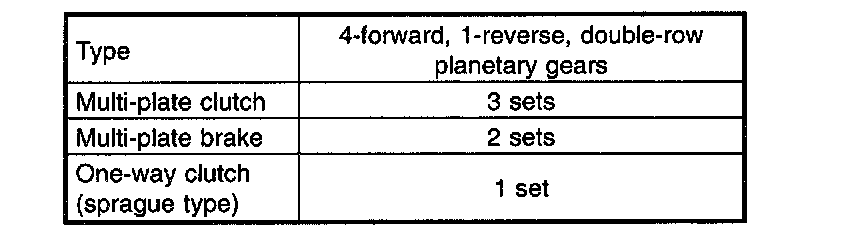

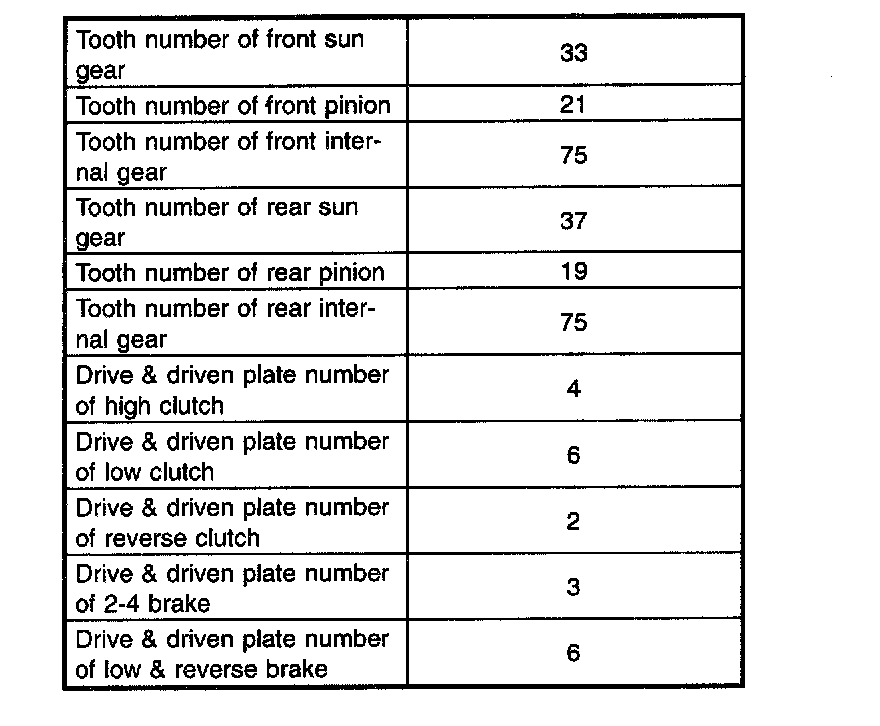

5. PLANETARY GEAR AND PLATE





6. SELECTOR POSITION

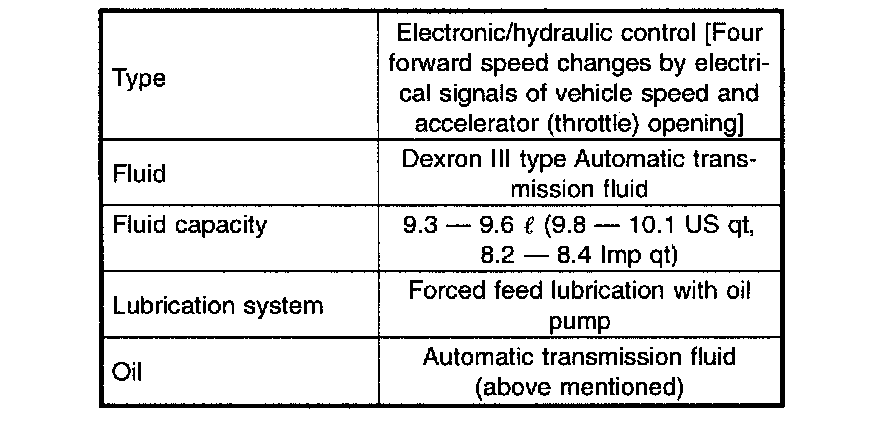

7. HYDRAULIC CONTROL AND LUBRICATION

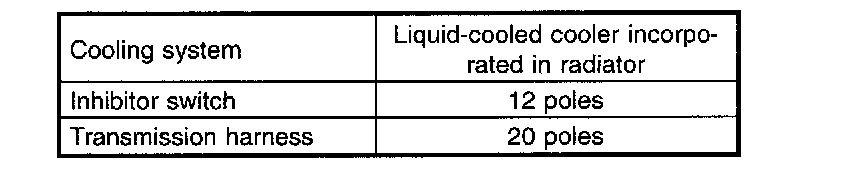

8. COOLING AND HARNESS

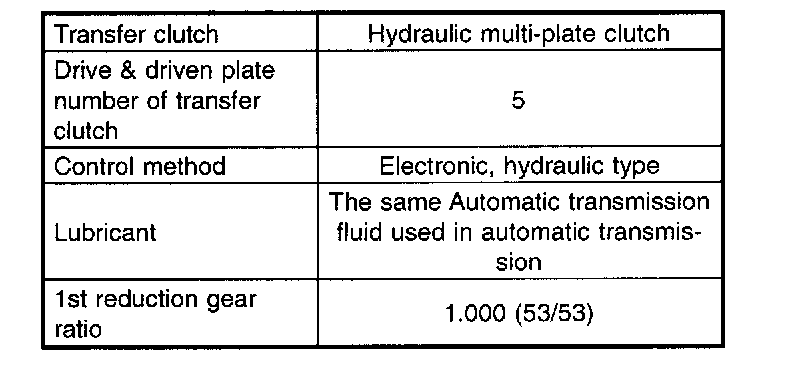

9. TRANSFER

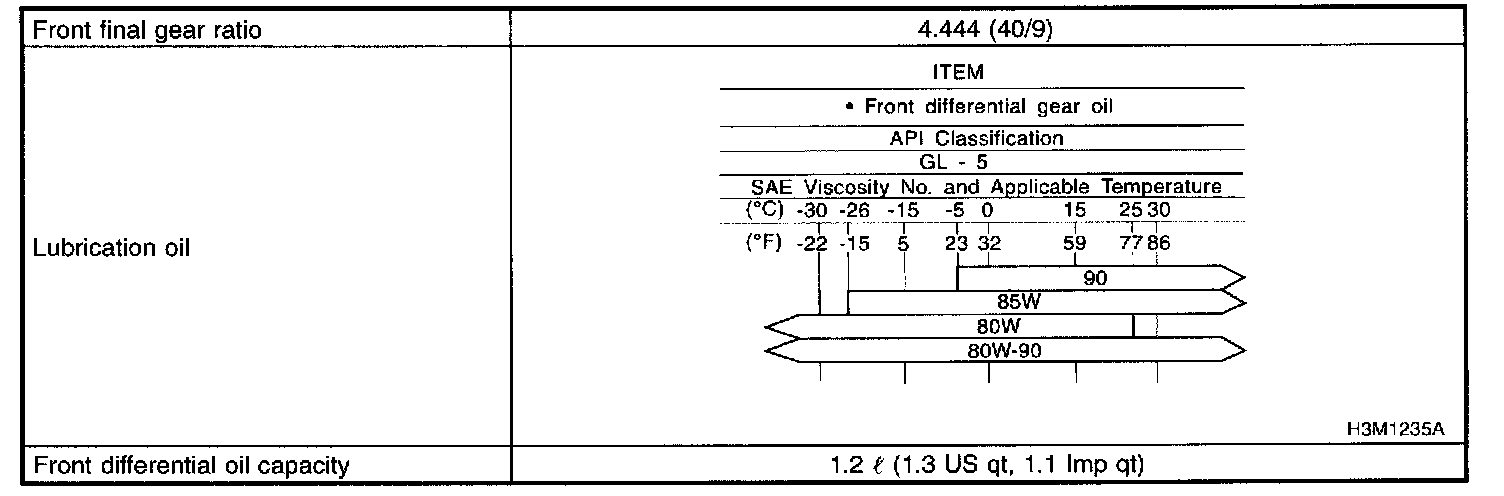

10. FINAL REDUCTION

B: COMPONENT





1. TRANSMISSION MOUNTING
