Heated Glass Element Switch: Testing and Inspection
Connector & Terminal / (i18) No. 6(+) - No. 8(-):

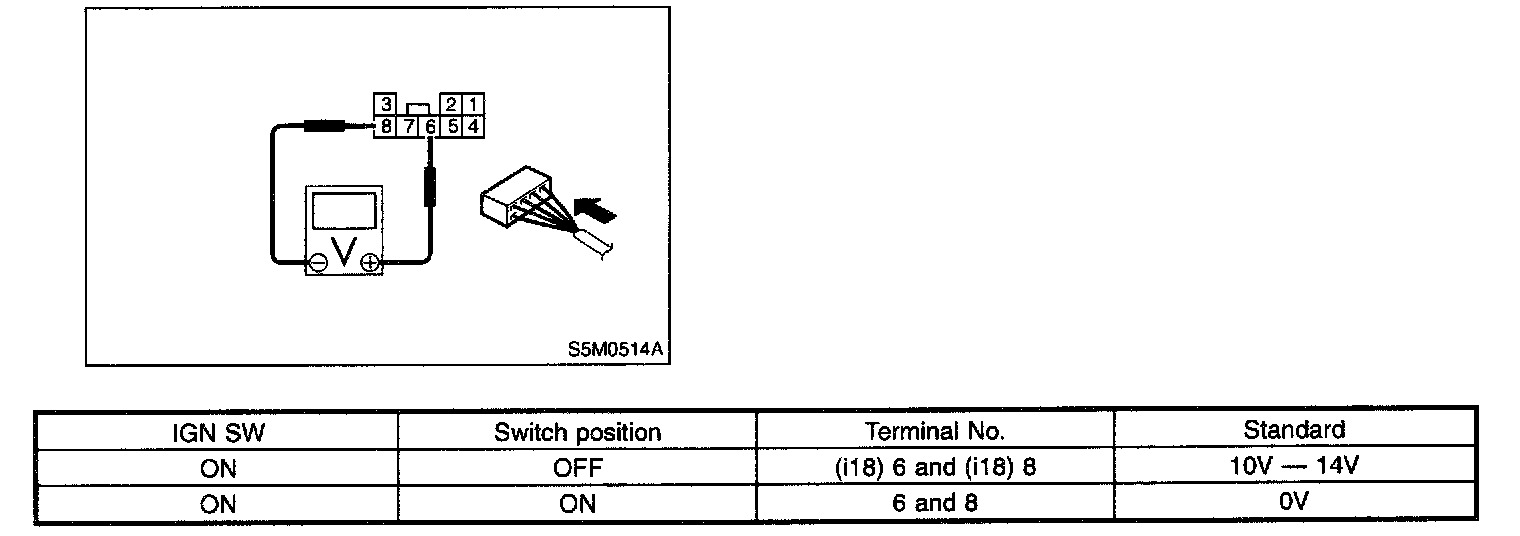

Rear Window Defogger Switch / INSPECTION 1.
Turn the
ignition switch ON.
2.
Check continuity between terminals on the wire harness side with connectors connected.
