Power Window Switch: Testing and Inspection

INSPECTION

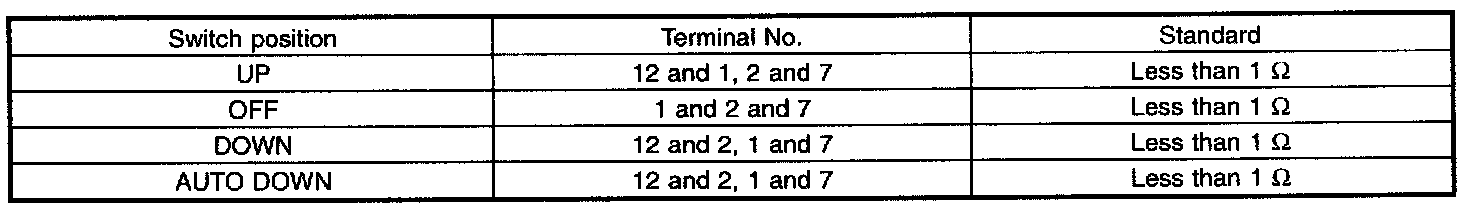

Drivers Switch:

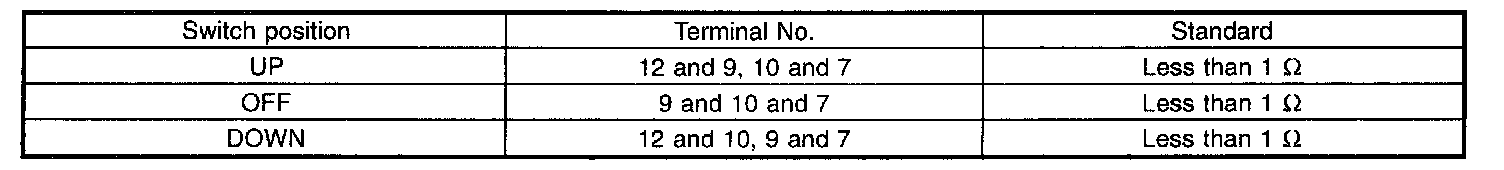

Front Passengers Switch:

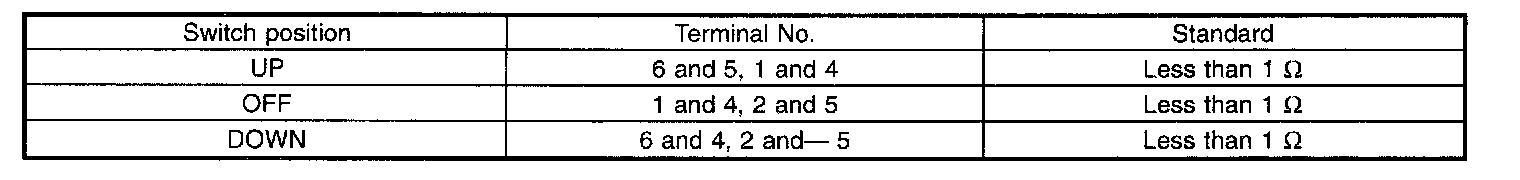

Rear Left Switch:

Rear Right Switch:

1. MAIN SWITCH
a. Measure switch resistance.
b. If NG, replace the main switch.

Front Passengers Door Switch:

2. SUB-SWITCH (FRONT)
a. Measure switch resistance.
b. If NG, replace the sub-switch.

Rear Door Switch:

3. SUB-SWITCH (REAR)
a. Measure switch resistance.
b. If NG, replace the sub-switch.
