Window Glass: Adjustments

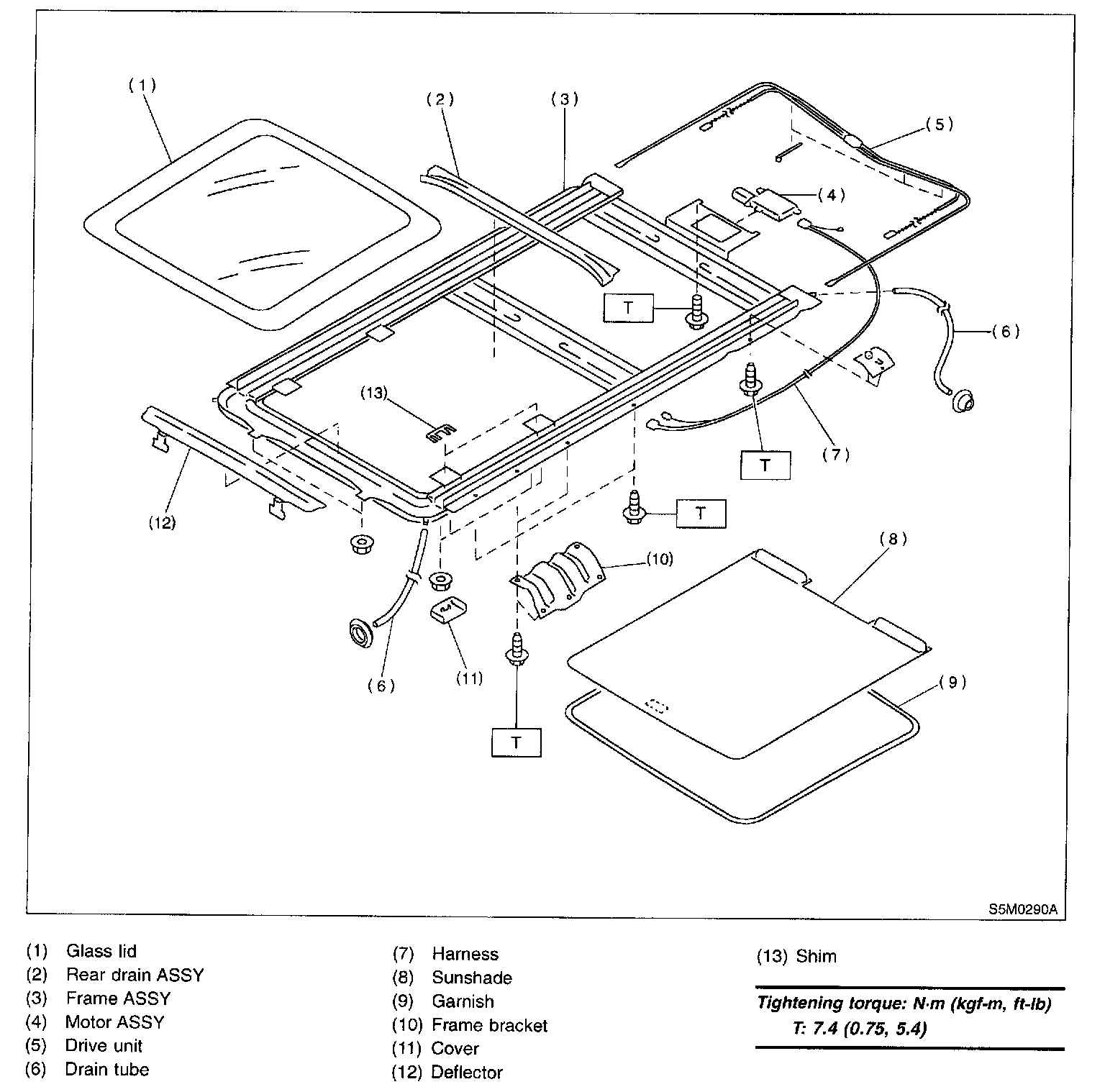

SUNROOF:

SUNROOF LID / ADJUSTMENT

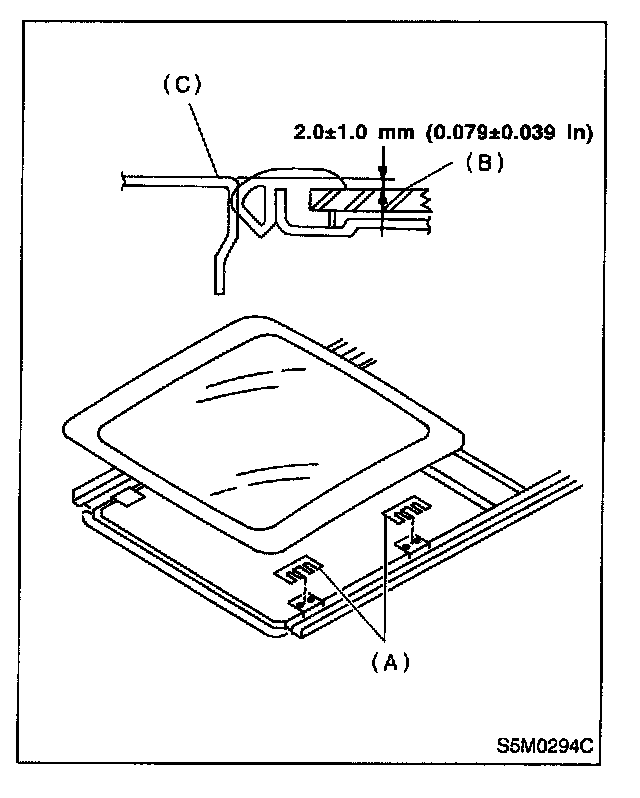

ALIGNMENT OF HEIGHT BETWEEN SUNROOF LID AND ROOF PANEL
Loosen sunroof lid nuts and then adjust height by adding
(max: two pieces) or extracting
(max: two pieces) shims (A) (standard: two pieces) between sunroof lid (B) and roof panel (C).

Difference in height between sunroof lid and roof panel
2.0 ± 1.0 mm (0.07 ± 0.039 in)
