Wiper Relay: Service and Repair

Wiper Control Relay / REMOVAL
1. Disconnect battery ground cable.
2. Remove the right quarter lower trim.
3. Remove the quarter pocket.

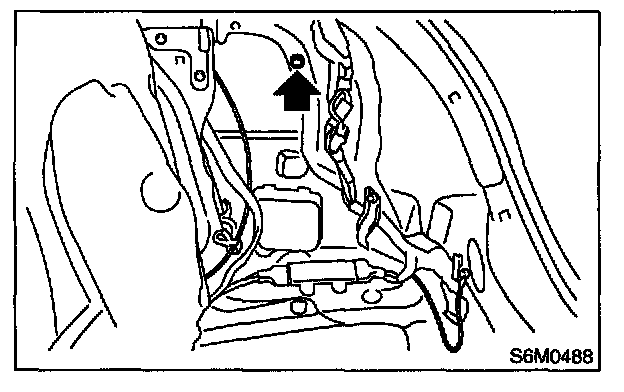

4. Loosen nut to remove control unit.

INSTALLATION
Install in the reverse order of removal.
