System Diagram
COMPONENT
1.
FRONT DISK BRAKE
NON-TURBO MODEL
TURBO MODEL
2.
REAR DISC BRAKE
3.

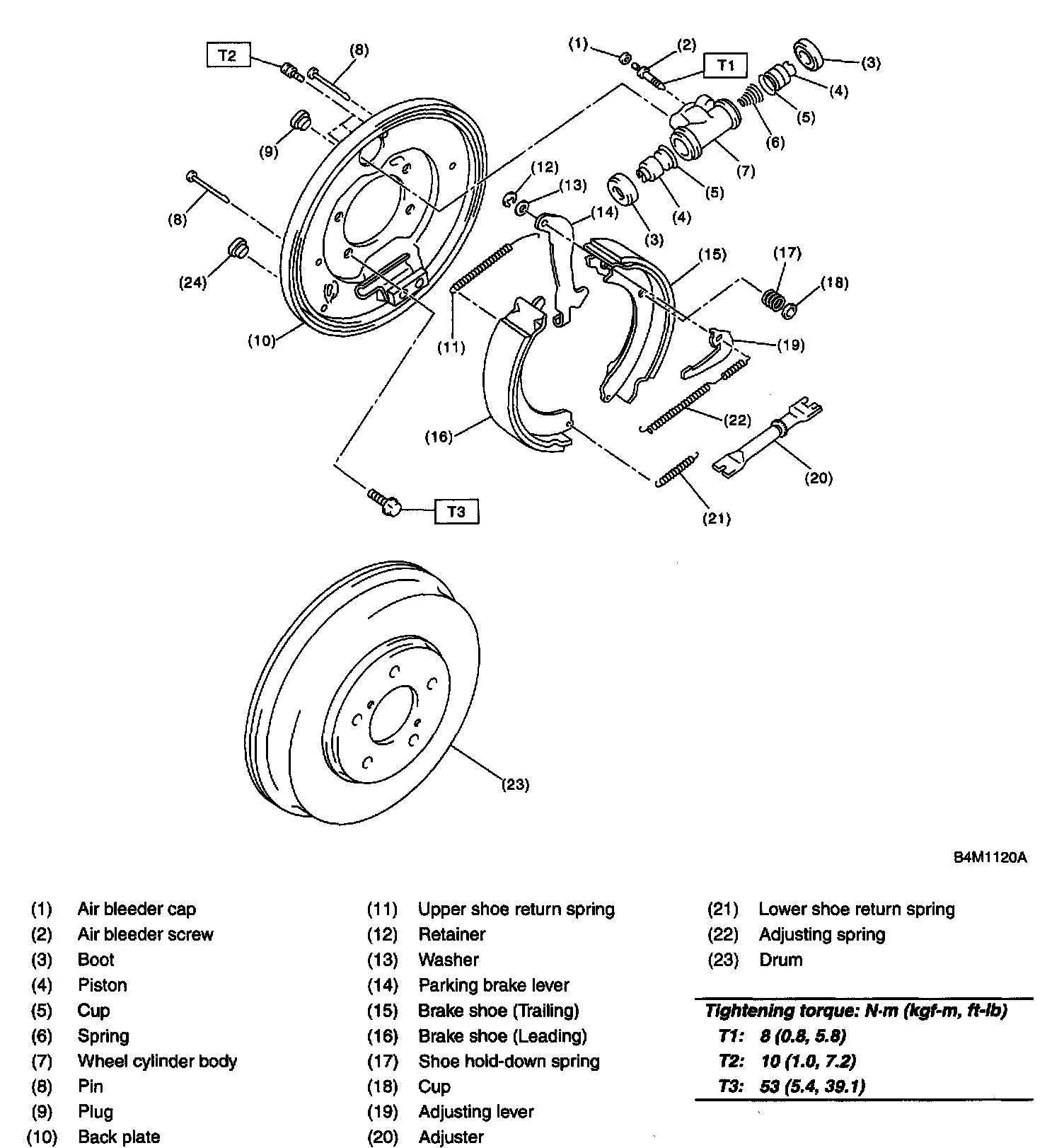

REAR DRUM BRAKE
4.

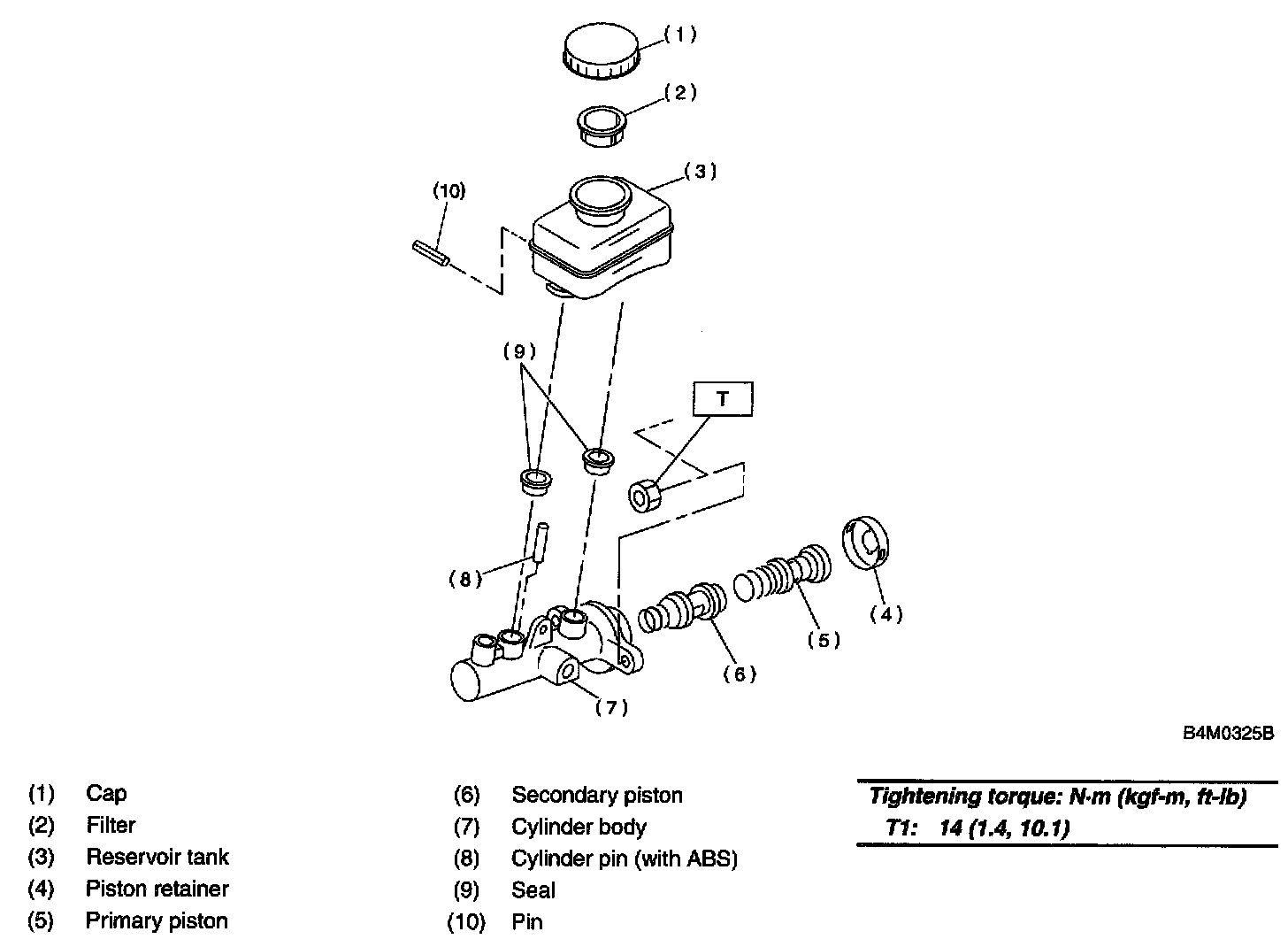

MASTER CYLINDER
5.

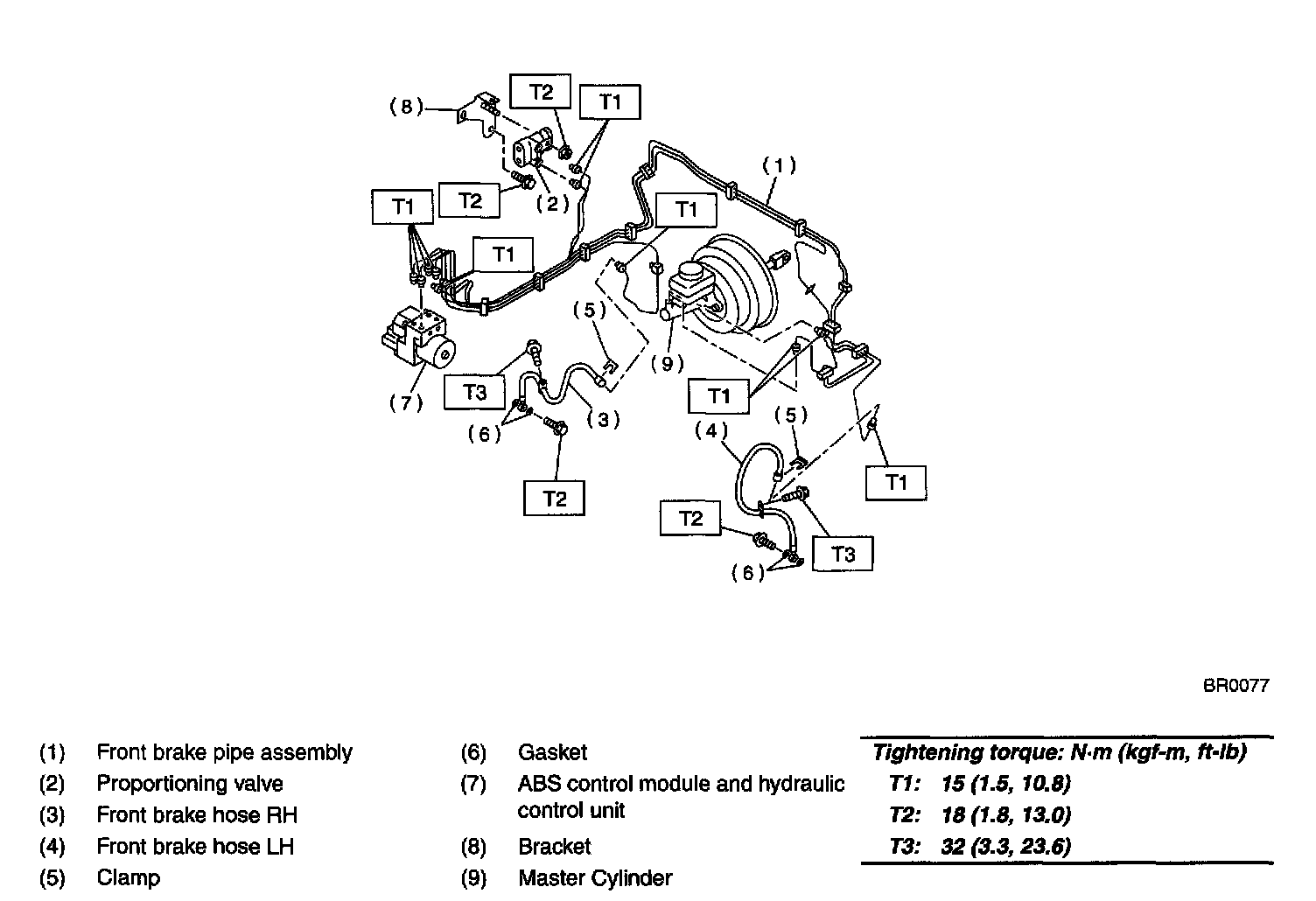

FRONT BRAKE PIPES AND HOSE
6.

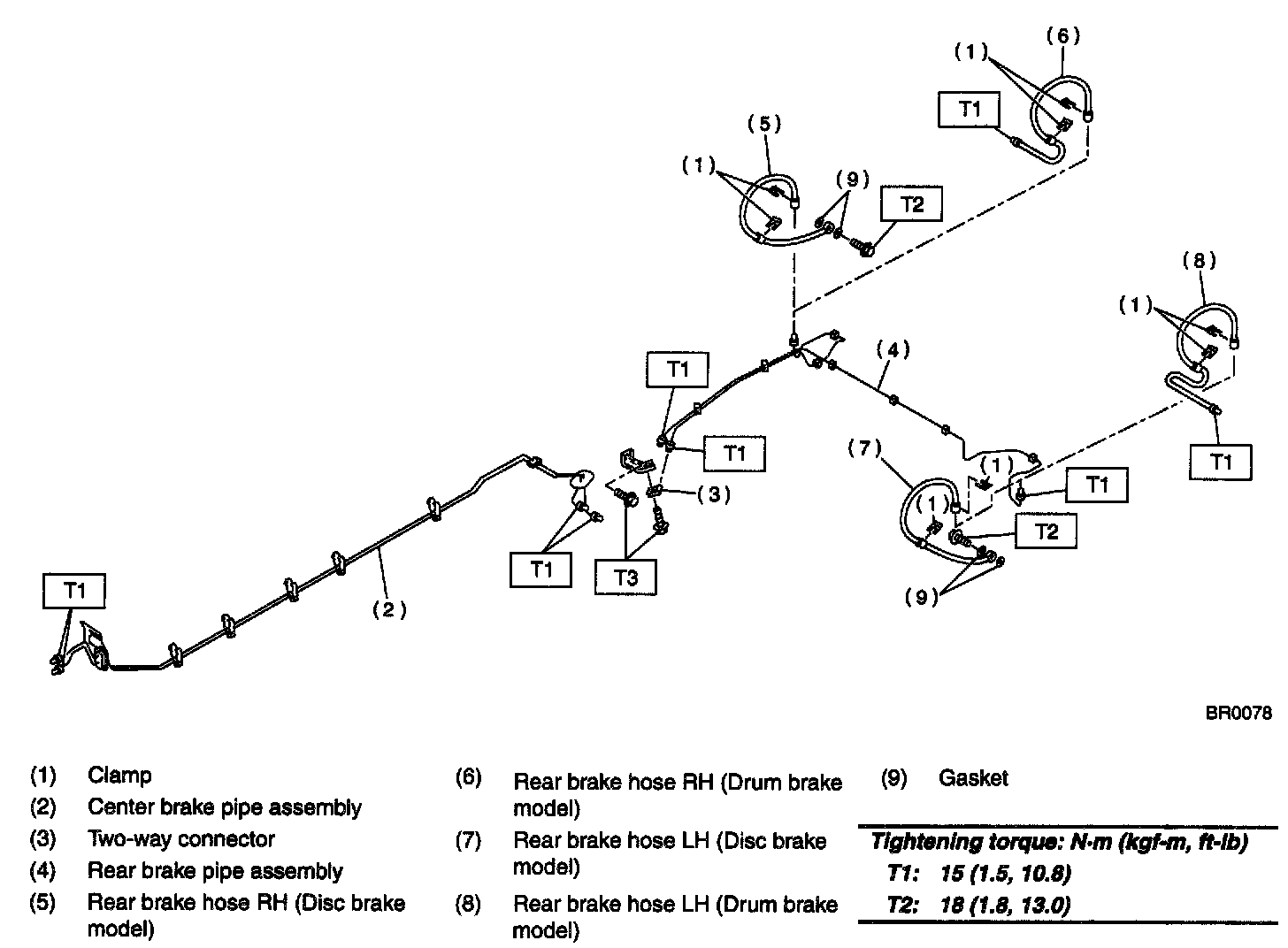

CENTER AND REAR BRAKE PIPES AND HOSE
7.

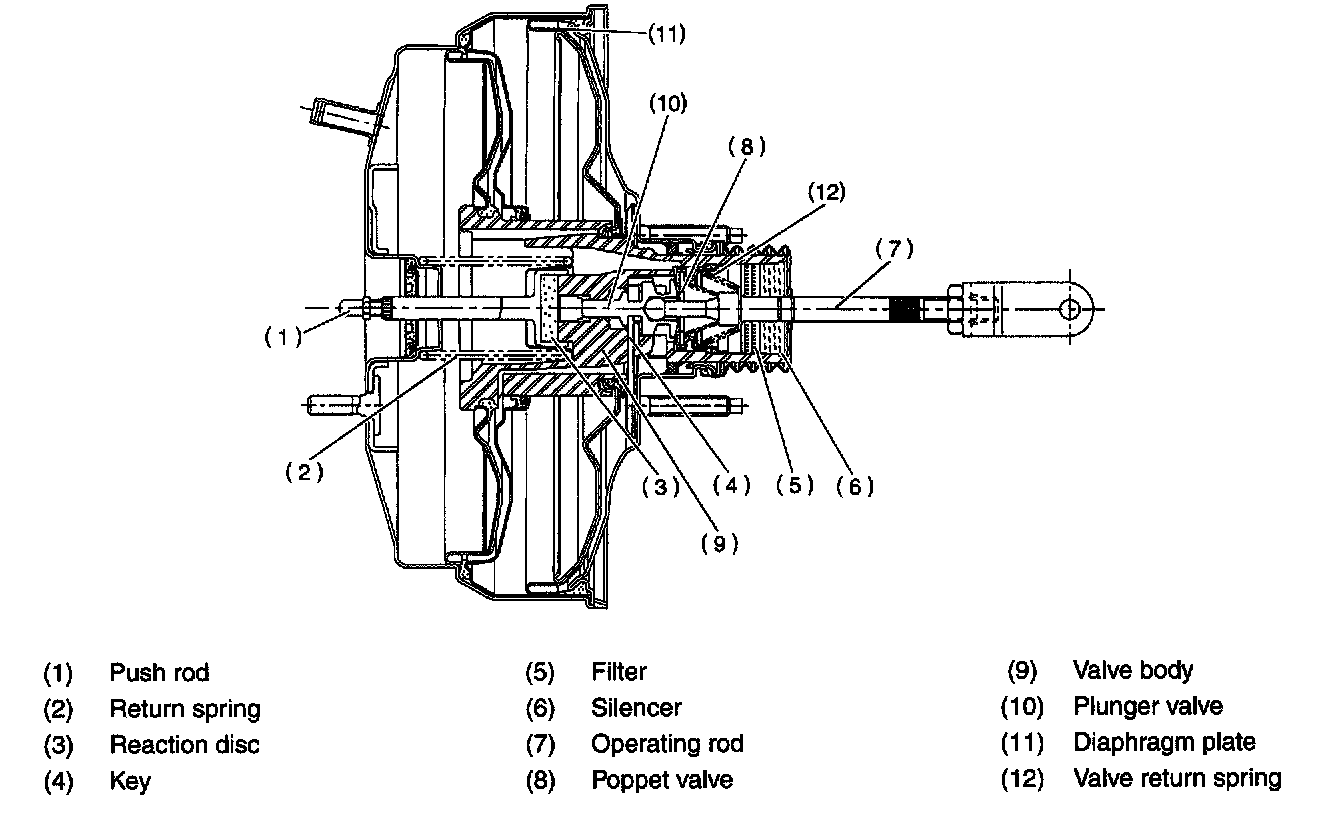

BRAKE BOOSTER
8.

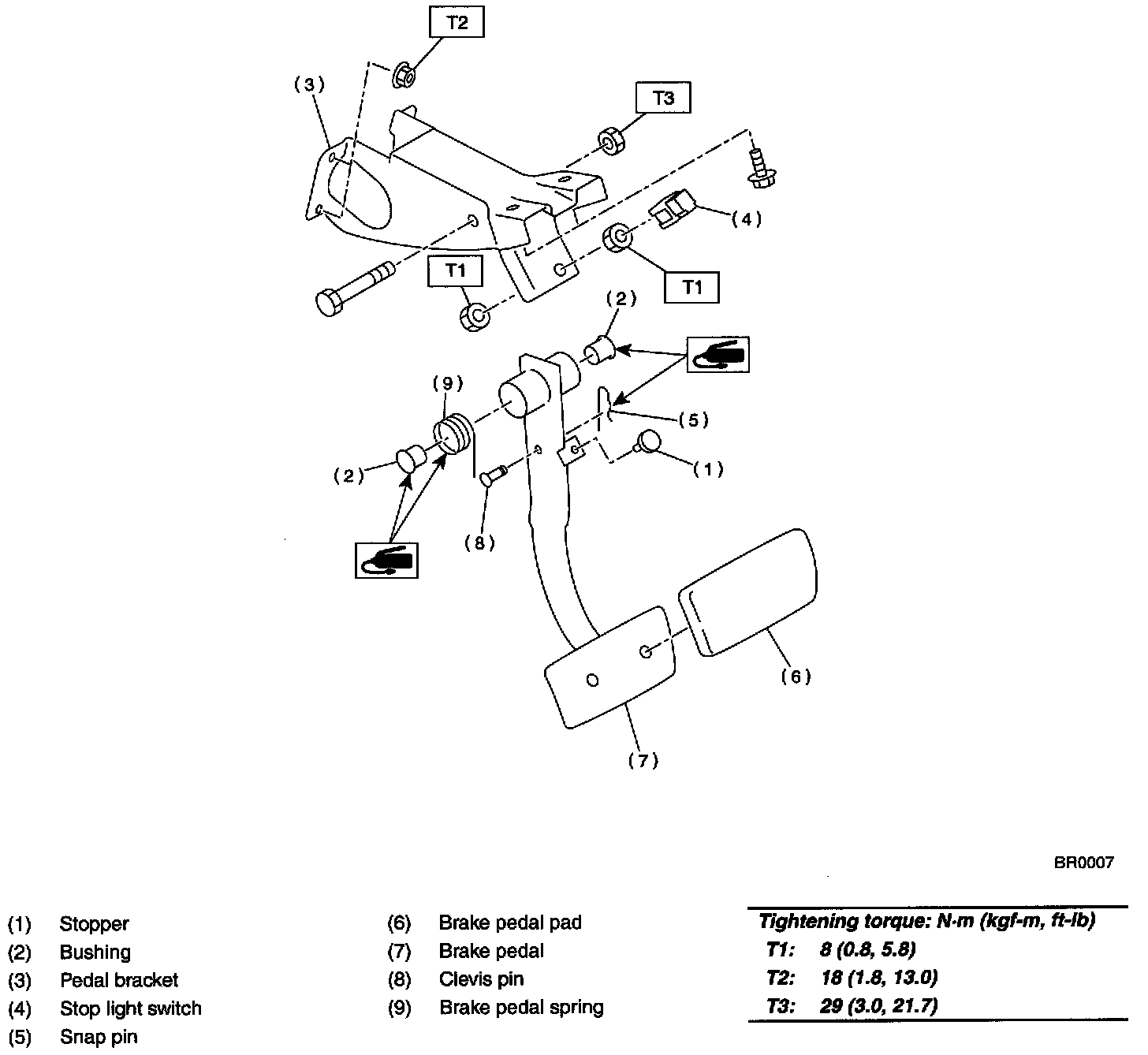

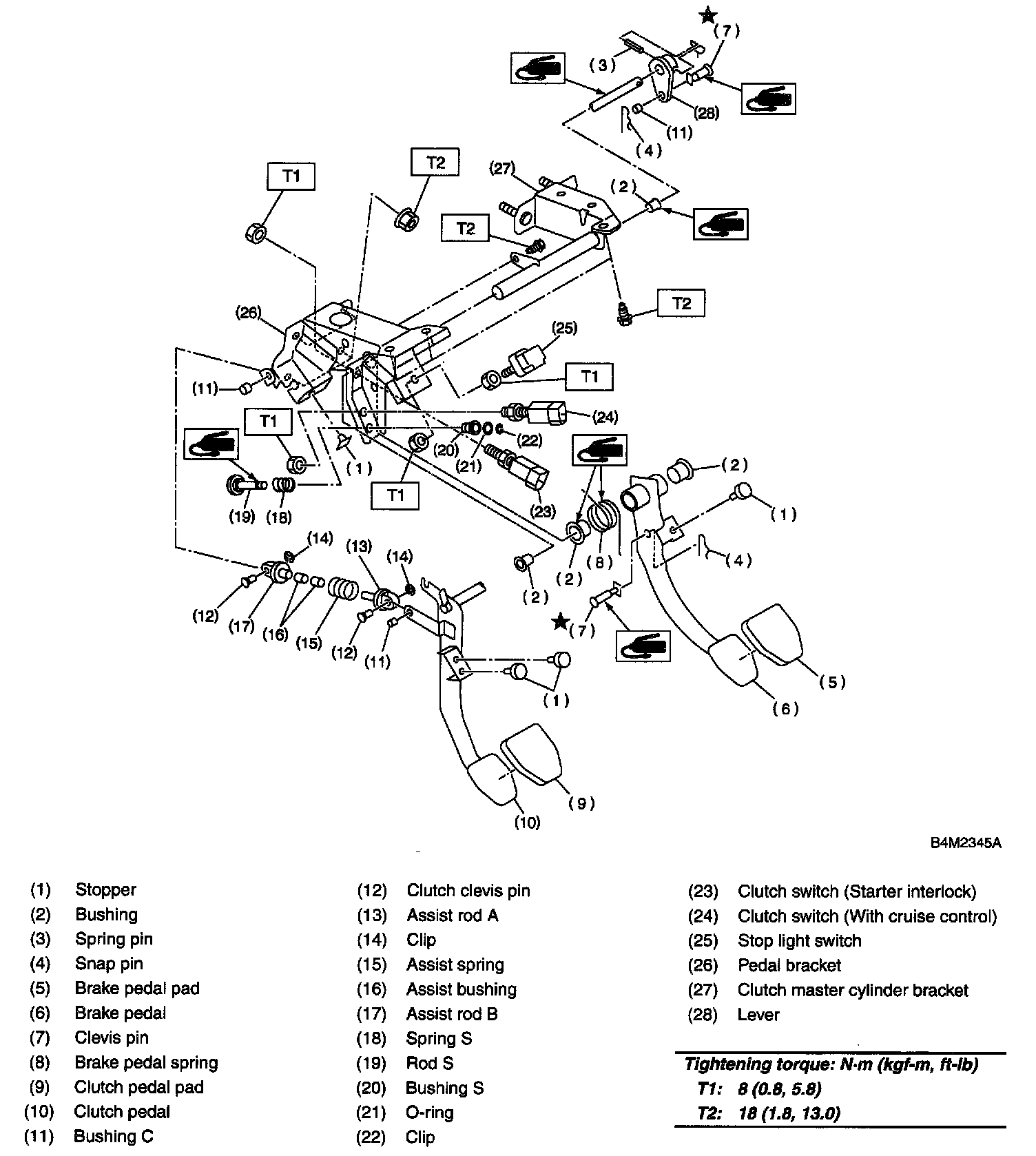

BRAKE PEDAL
MT Model
AT Model
