Electrical Diagrams

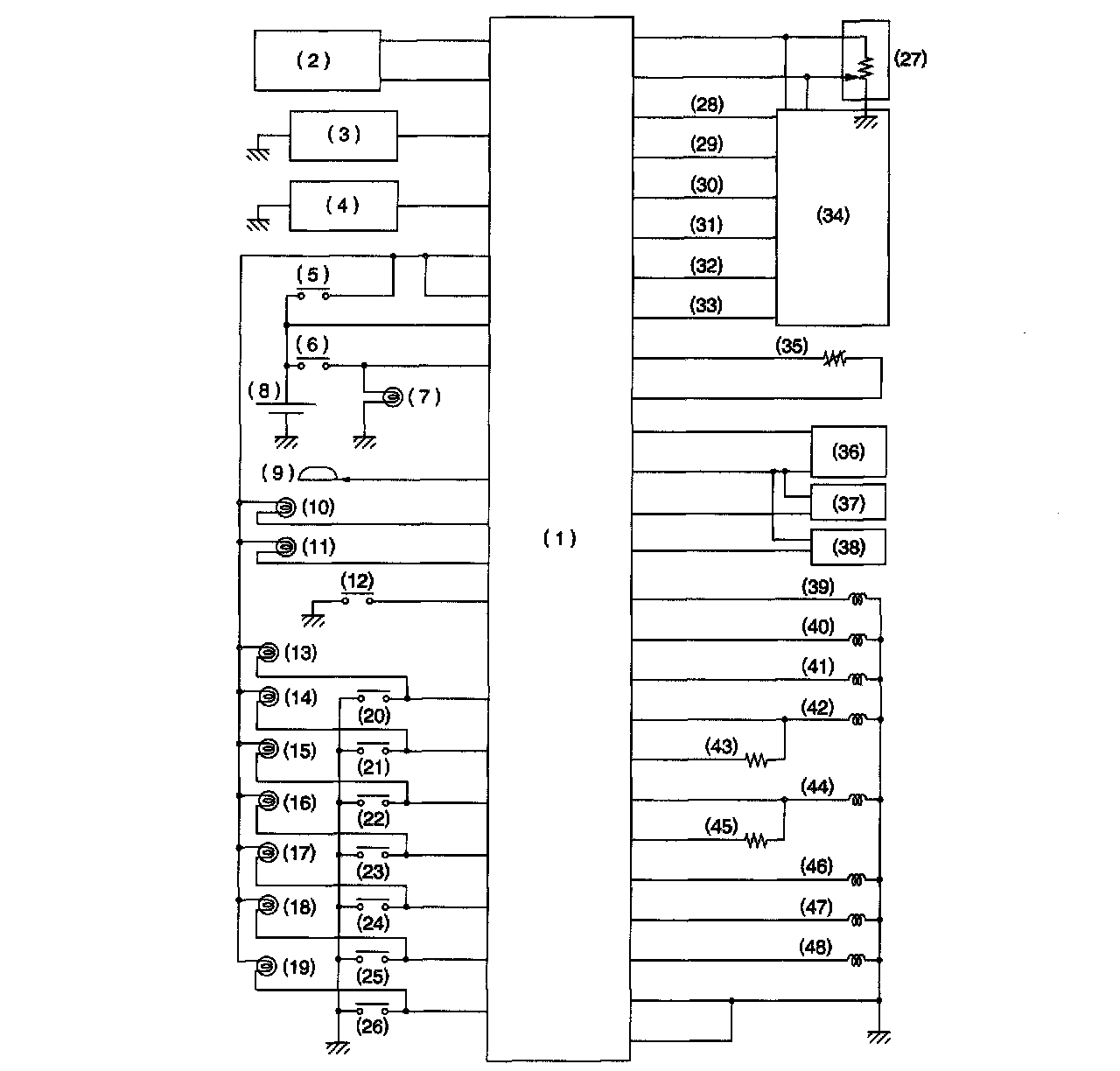

SCHEMATIC

NON-TURBO MODEL

WIRING DIAGRAMS

Electrical Diagrams

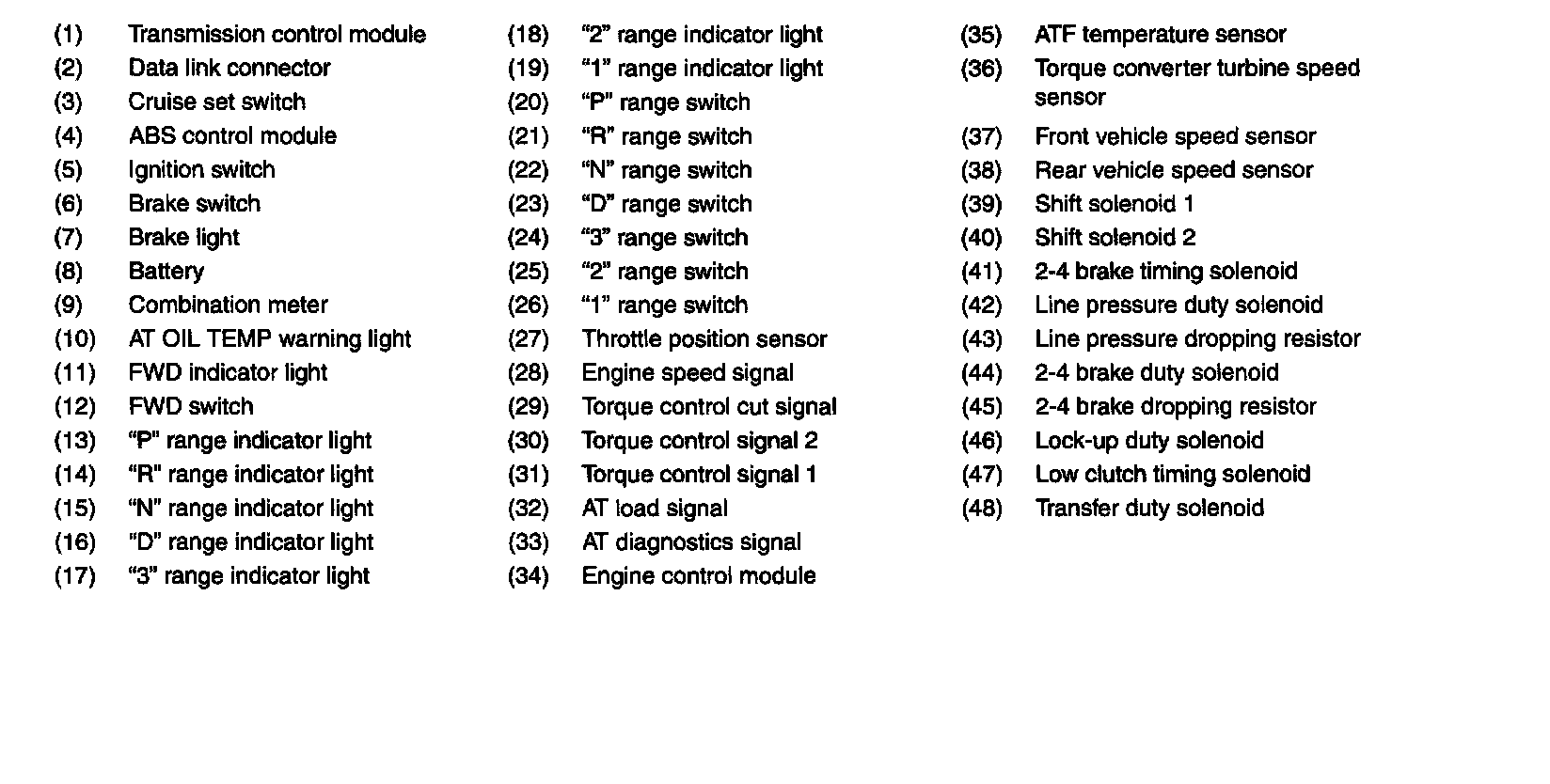

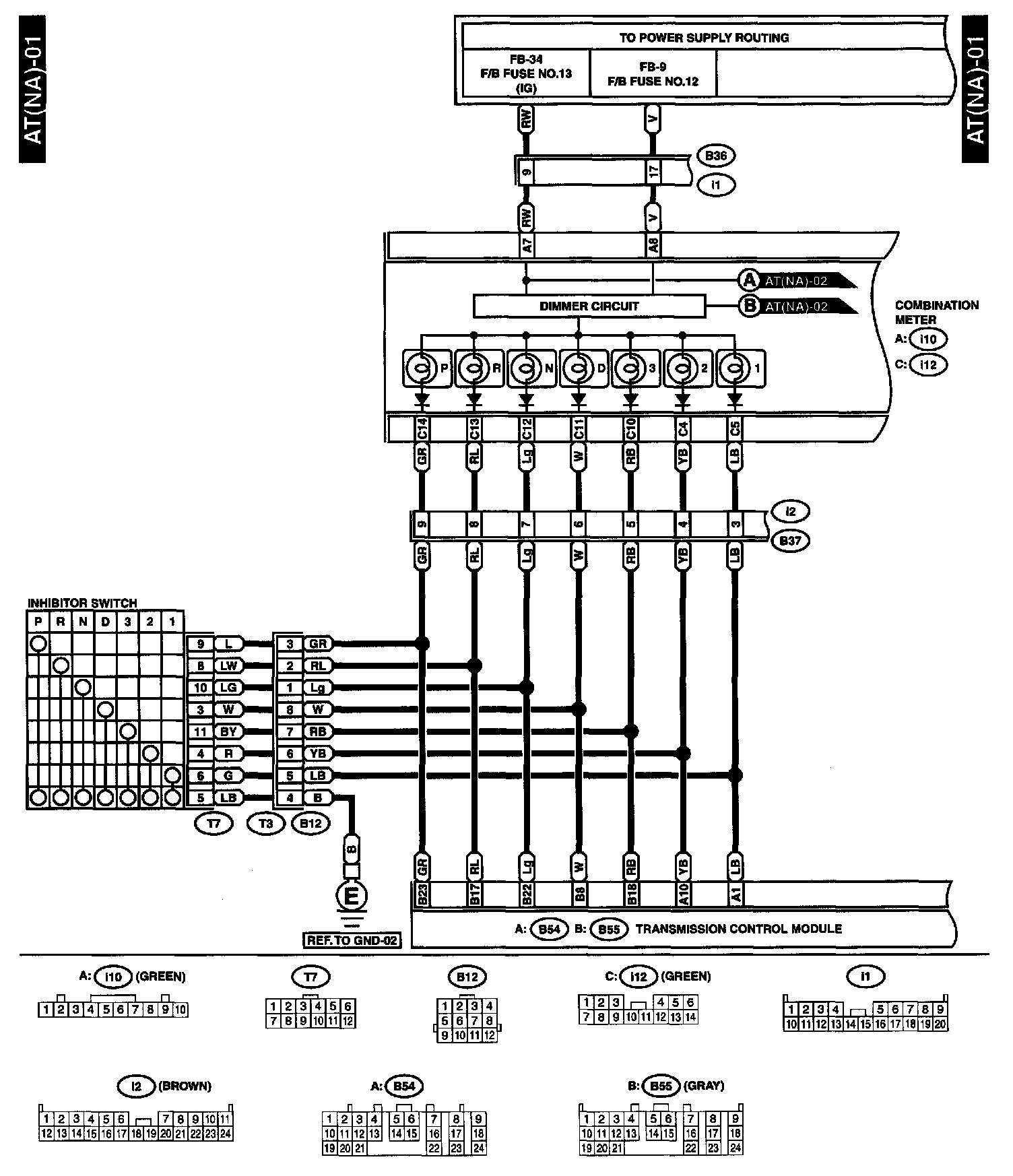

AT(NA)-01 - A/T Control System (Non-Turbo Engine Model):

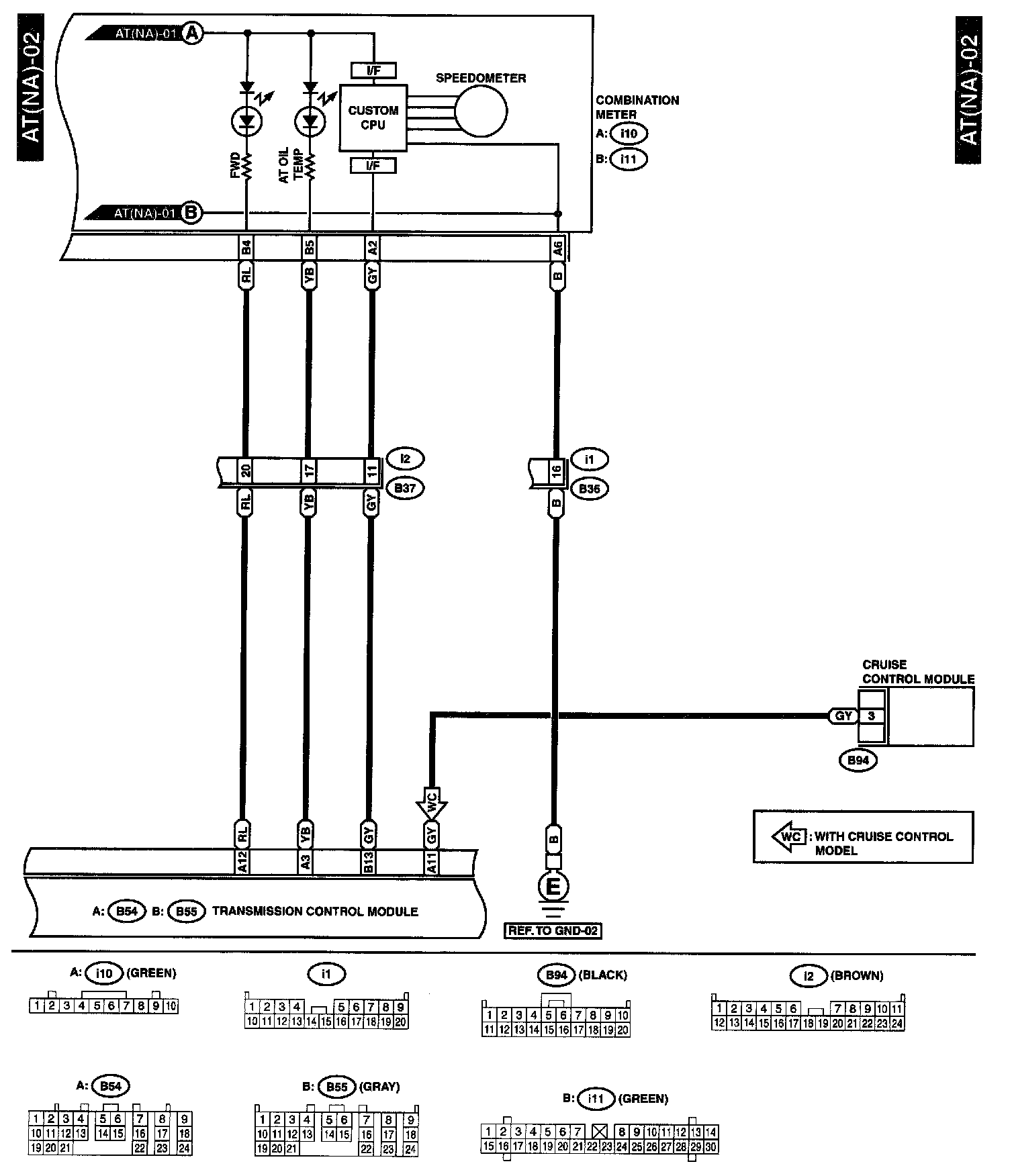

AT(NA)-02 - A/T Control System (Non-Turbo Engine Model):

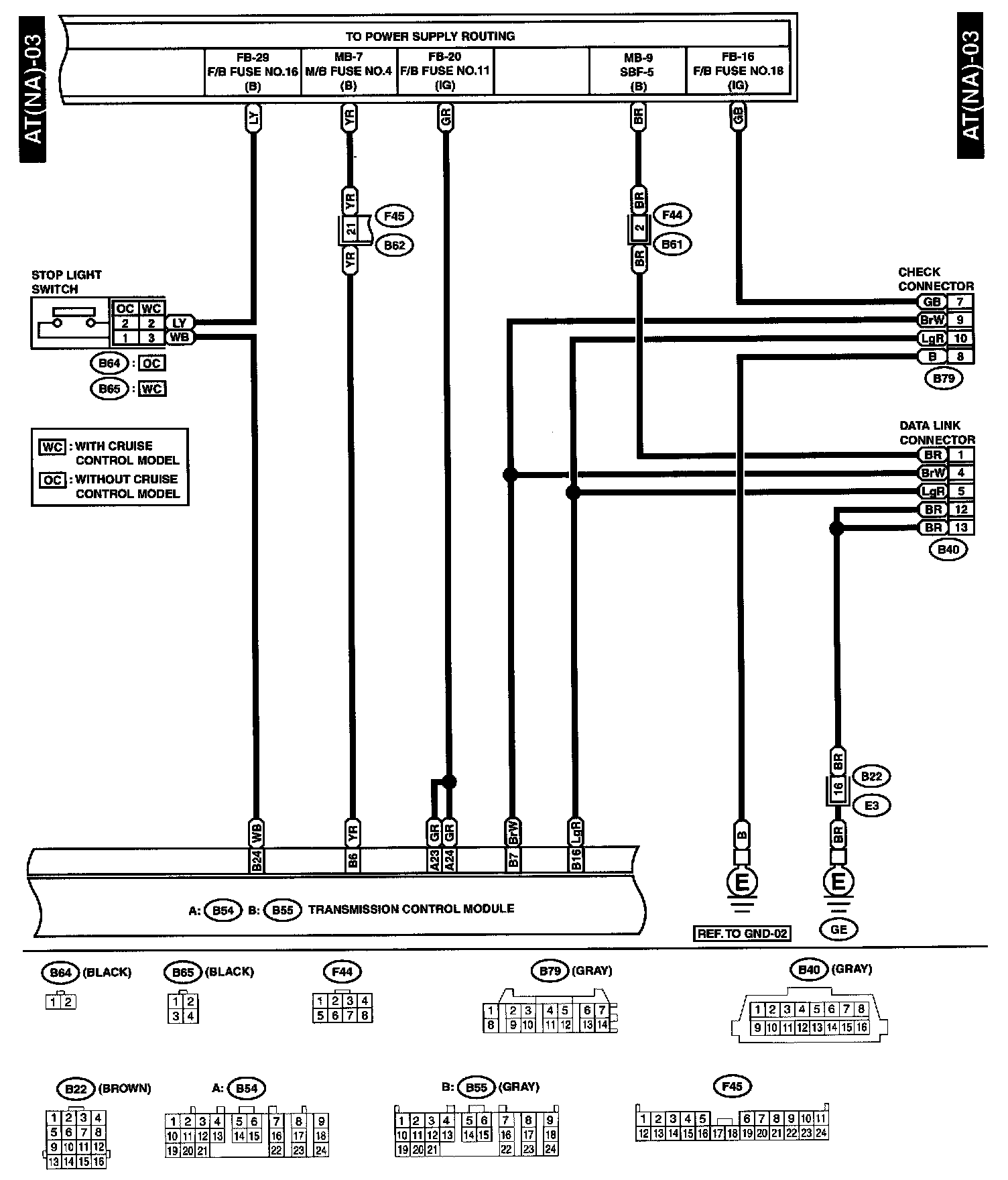

AT(NA)-03 - A/T Control System (Non-Turbo Engine Model):

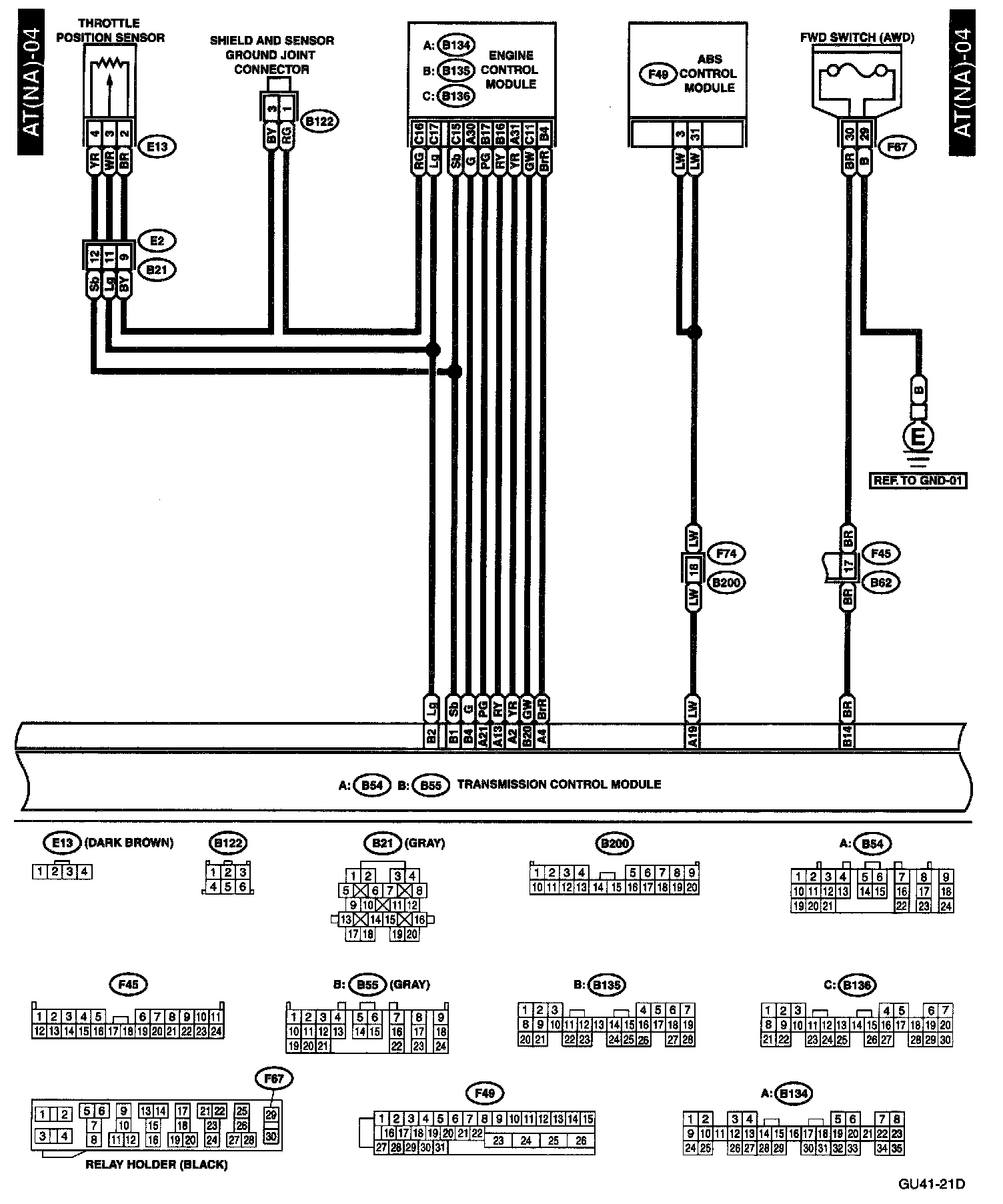

AT(NA)-04 - A/T Control System (Non-Turbo Engine Model):

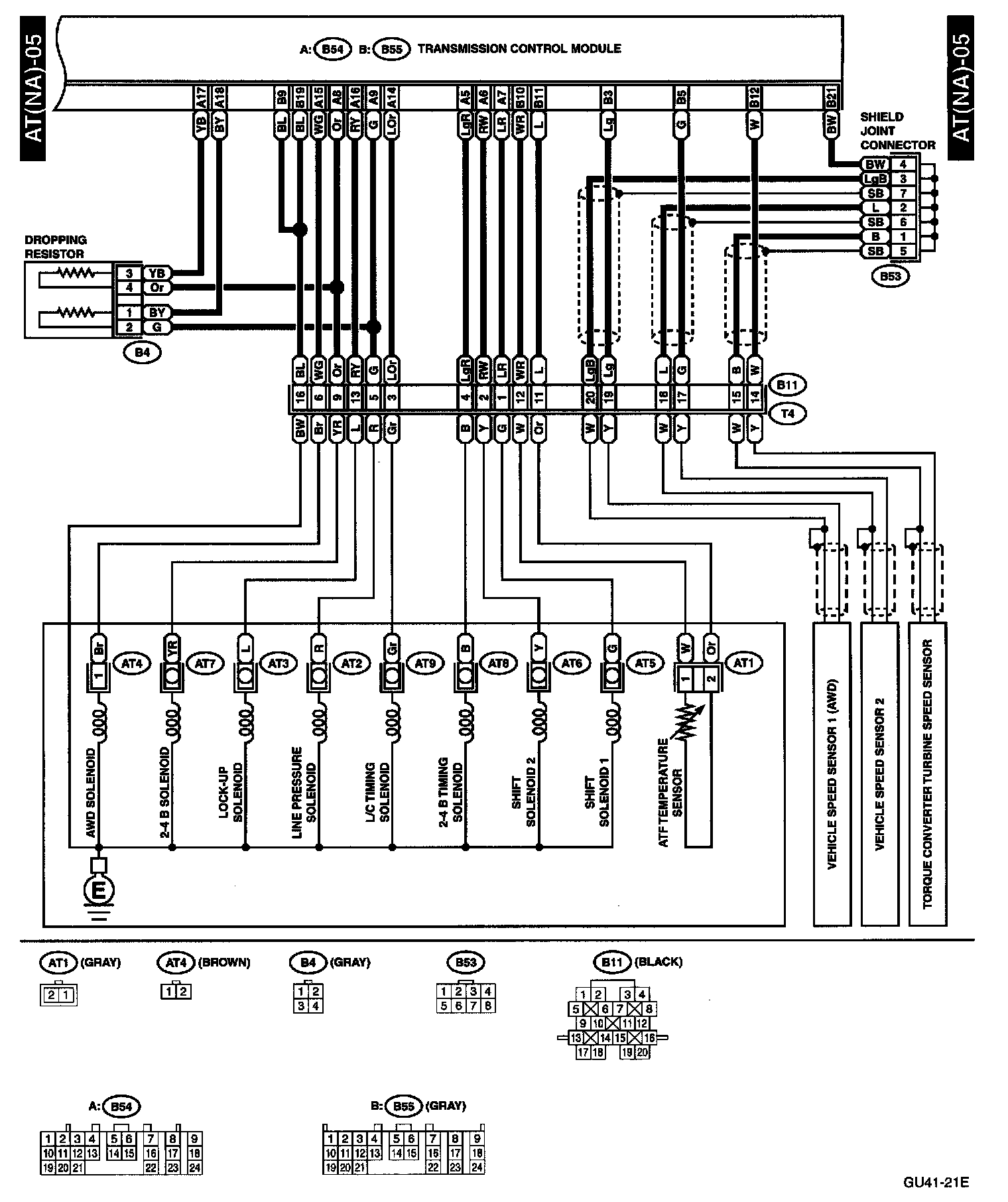

AT(NA)-05 - A/T Control System (Non-Turbo Engine Model):
