Clutch Switch: Testing and Inspection

C: INSPECTION

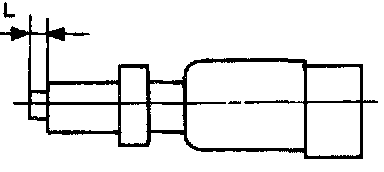

1. If the clutch switch does not operate properly (or if it does not stop at the specified position), replace with a new one.
Specified position: L 2[+1.5]/[0] mm (0.079 [+0.059]/[0] inch)
2. Check the clutch switch continuity. If continuity is not as specified, replace the switch.
1. Disconnect the clutch switch connector.
2. Measure the resistance between 1 and 2 of clutch switch terminal.
Terminals/Specified resistance
When clutch pedal depressed: 1-2/Less than 1 Ohms
Terminals/Specified resistance
When clutch pedal not depressed: 1-2/More than 1 M Ohms





Clutch switch (Starter interlock)





Clutch switch (With cruise control)
3. If not as specified, replace the clutch switch.
