Balancing
A: REPLACEMENT 1.
Remove balance weights.
2.
Using dynamic balancing, measure wheel balance.

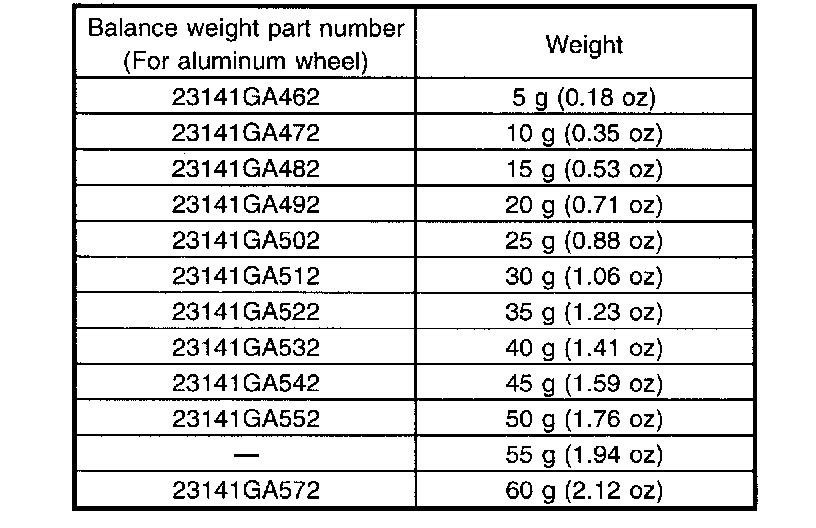

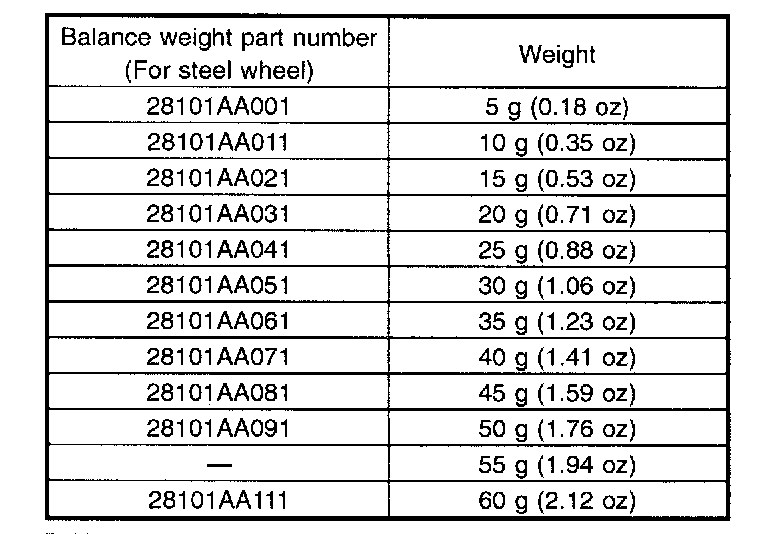

Steel wheelAluminum wheel 3.
Select a weight close to the value measured by dynamic balancing.
4.
Install the selected weight to the point designated by dynamic balancing.
5.
Using dynamic balancing, measure wheel balance again. Check that wheel balance is correctly adjusted.
