Fuel Filter: Service and Repair

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

1. Release fuel pressure.

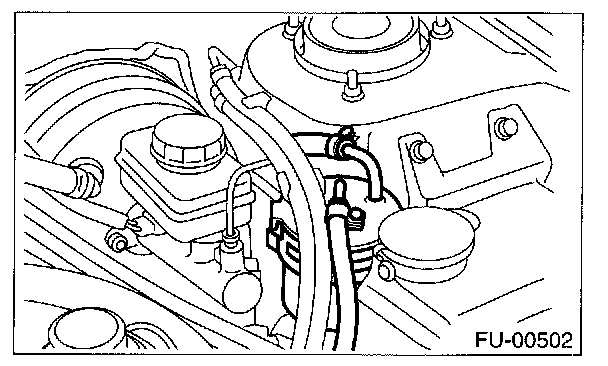

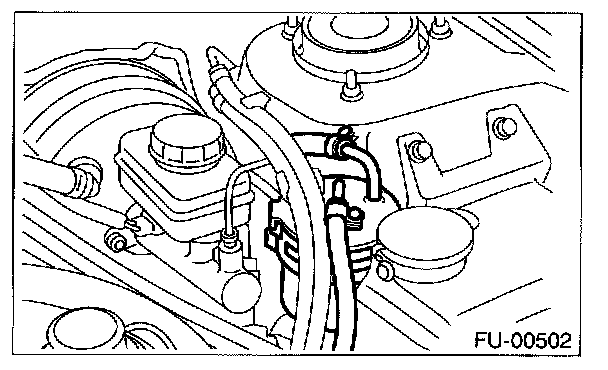

2. Disconnect fuel delivery hoses from fuel filter.
3. Remove filter from holder.

INSTALLATION

CAUTION:
- If fuel hoses are damaged at the connecting portion, replace it with a new one.
- If clamps are badly damaged, replace with new ones.

1. Install in the reverse order of removal.

2. Tighten hose clamp screws.

Tightening torque: 1.25 N.m (0.127 kgf-m, 0.9 ft-lb)
