Disc Brake System: Description and Operation

Front and Rear Disc Brakes





^ The disc brakes are of a ventilated disc type which features high heat dissipation and superb braking stability. In addition, the front brakes quickly restores their original braking performance even when they get wet.
^ Ventilated discs are used only on the front wheels.

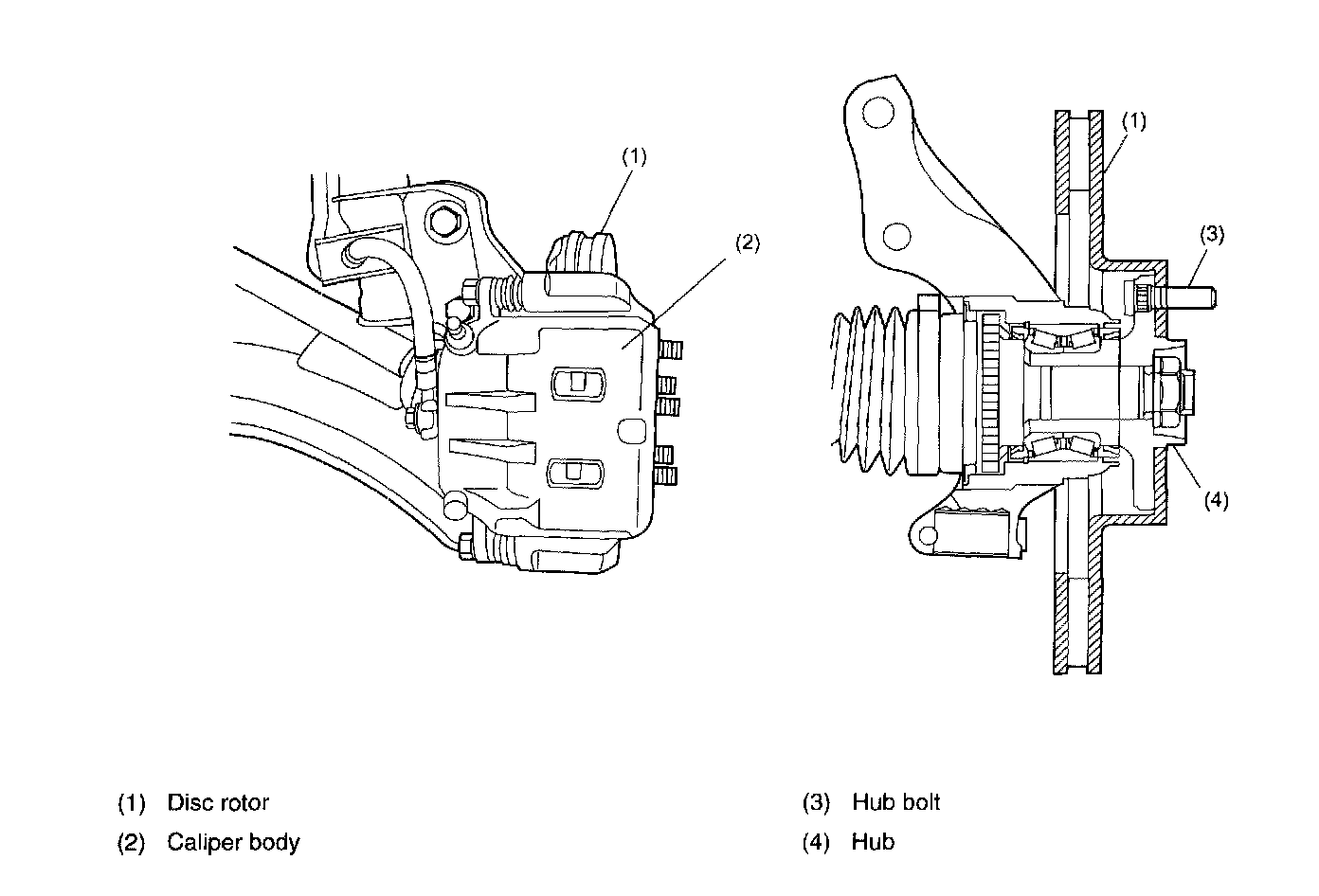

^ Each disc rotor, which is fitted on the outside of the hub, is secured together with the wheel using the hub bolts. This facilitates its removal and installation.

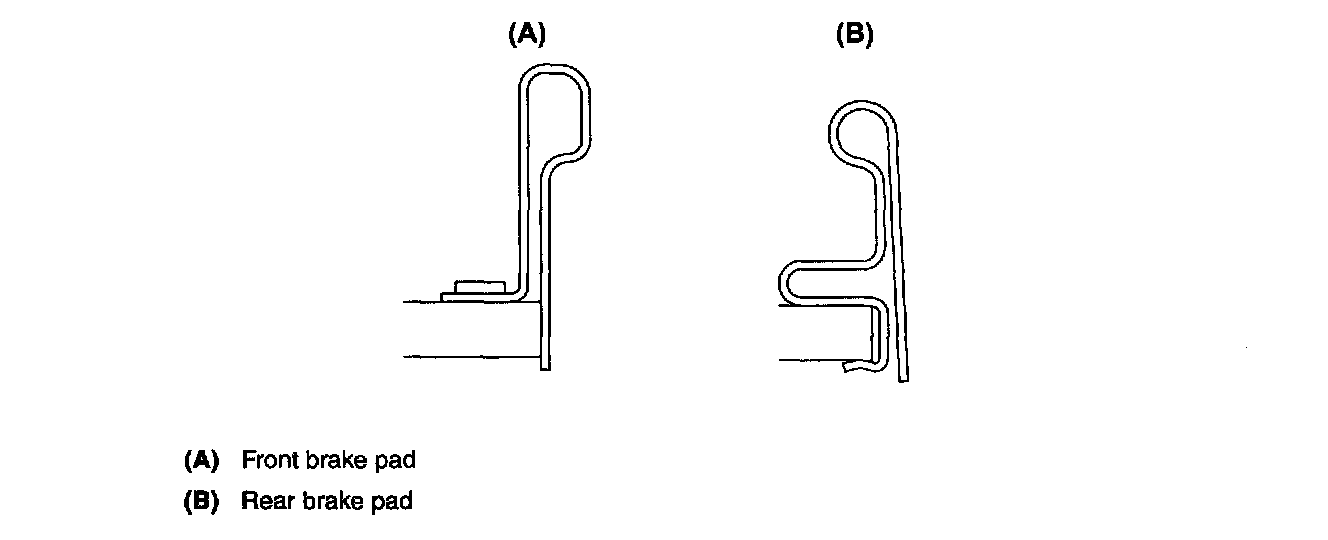

^ The inner brake pad is provided with a wear indicator.

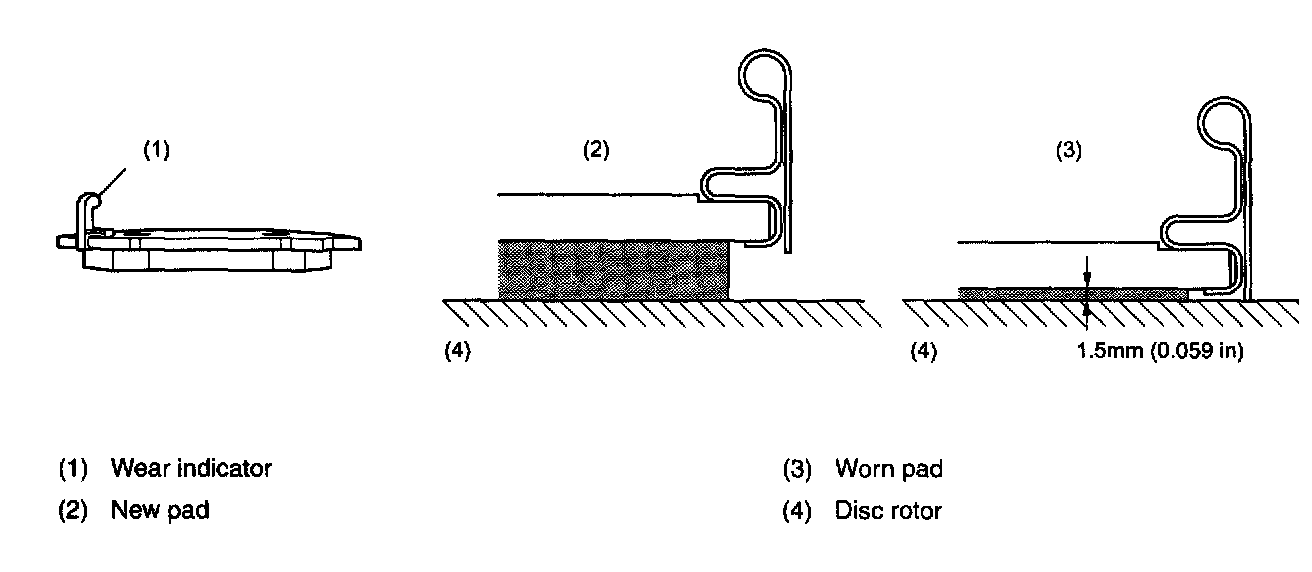

PAD WEAR INDICATOR








A wear indicator is provided on the inner disc brake pads. When the pad wears down to 1.5 mm (0.059 inch) the tip of the wear indicator comes into contact with the disc rotor, and makes a squeaking sound as the wheel rotates. This alerts the driver to the situation.

FRICTION MATERIAL OF BRAKE PADS
The brake pads materials do not contain any asbestos which is harmful to human body.
