Heat Shield: Service and Repair
HEAT SHIELD COVERREMOVAL 1.
FRONT

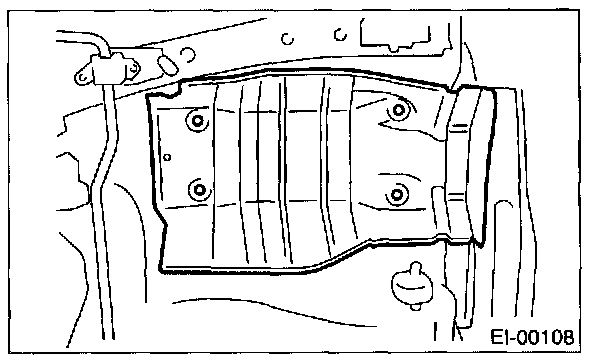

HEAT SHIELD COVER
1.
Loosen the four bolts to remove front
heat shield cover.
2.
CENTER

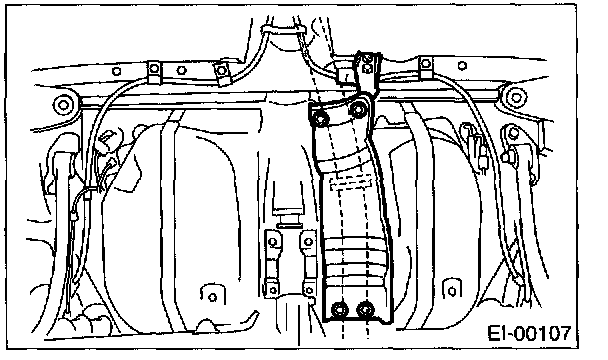

HEAT SHIELD COVER
1.
Loosen the four bolts to remove center
heat shield cover.
3.
REAR

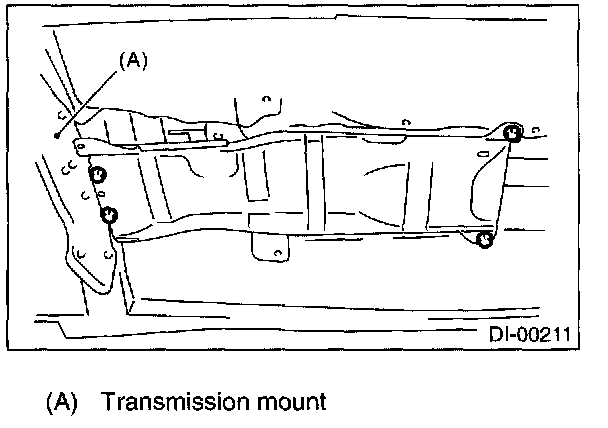

HEAT SHIELD COVER
1.
Remove the
muffler.
2.
Loosen the four bolts to remove rear
heat shield cover.
INSTALLATIONInstall in the reverse order of removal.
