Compartment Temperature Does Not Change
COMPARTMENT TEMPERATURE IS NOT CHANGED OR A/C SYSTEM DOES NOT RESPOND QUICKLYTROUBLE SYMPTOM:Wiring Diagram:
WIRING DIAGRAM:Step 1 - 7:

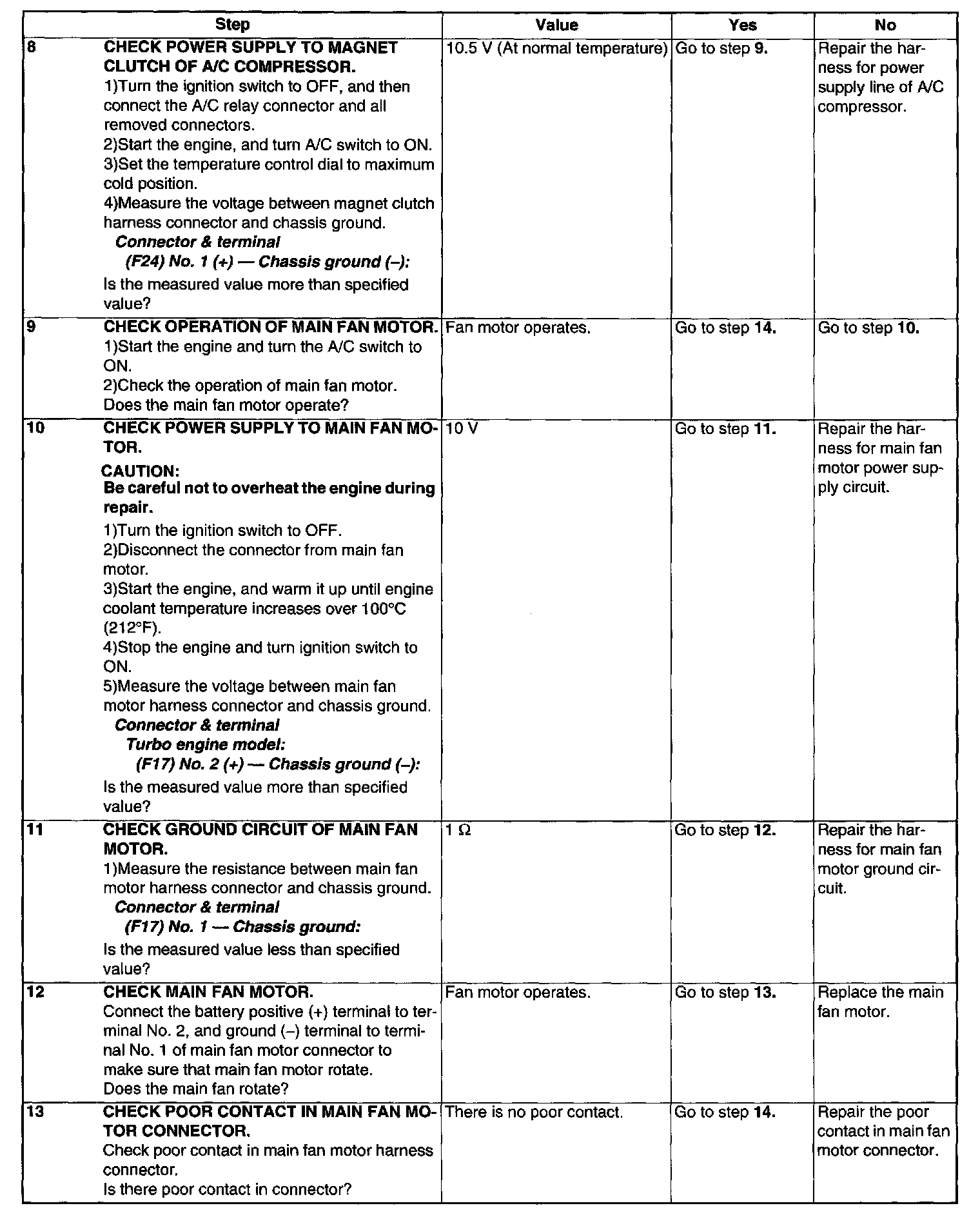

Step 8 - 13:

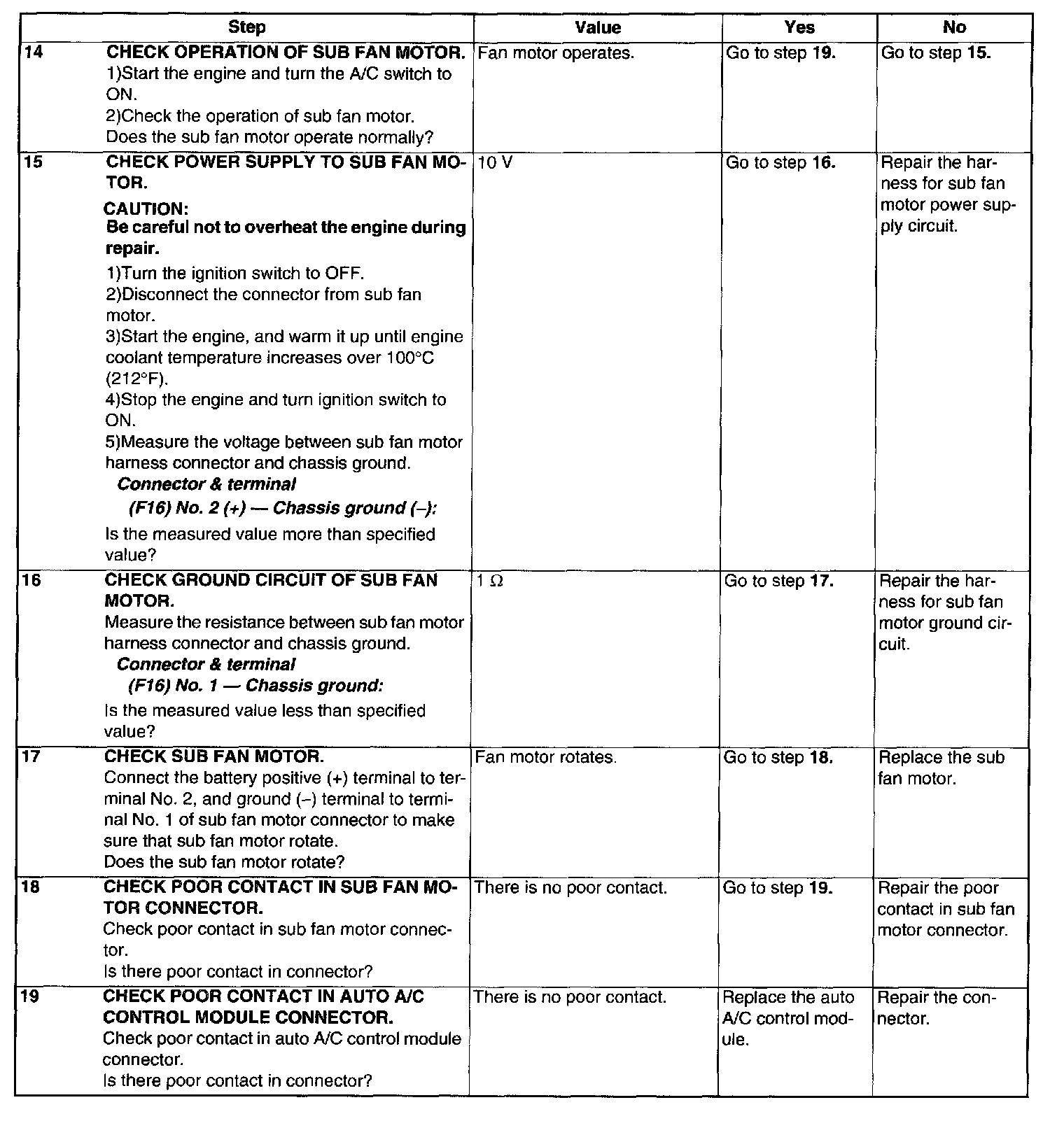

Step 14 - 19:
-
Compartment temperature is not changed.
-
A/C system does not respond quickly.
