Spot Lamp: Service and Repair
Spot LightREMOVAL 1.
Disconnect the ground cable from battery.
2.

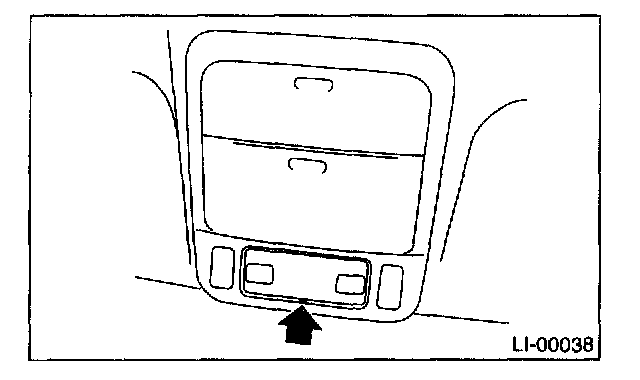

Insert a flat tip screwdriver to slot of lens, and then pry the lens to remove.
3.

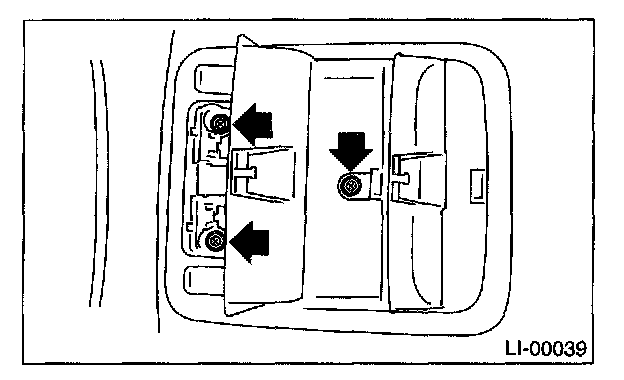

Remove the spot light installation screws.
4.
Disconnect the harness connectors and remove the spot light.
INSTALLATIONInstall in the reverse order of removal.
