Reduction Driven Gear

Reduction Driven Gear

REMOVAL
1. Remove the transmission assembly from the vehicle.
2. Remove rear vehicle speed sensor, and separate the transmission case and extension case.
3. Set the range select lever to "P".





4. Straighten the staked portion, and remove the lock nut.

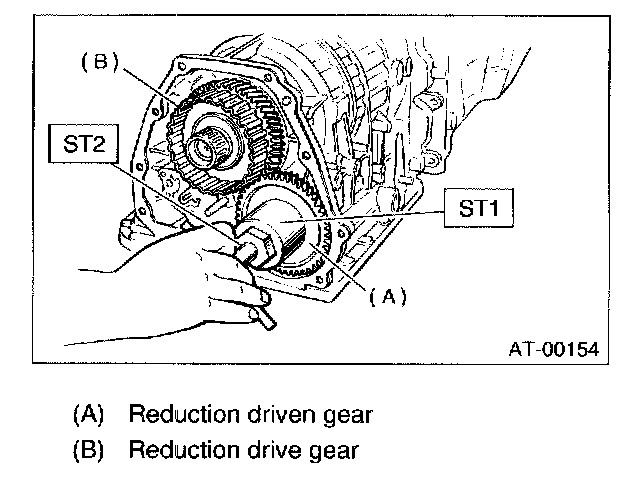

5. Using the ST1 and ST2, extract the reduction driven gear.
ST1 499737000 PULLER
ST2 899524100 PULLER SET

INSTALLATION
1. Set the select lever to "P" range.





2. Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.
Tightening torque: 100 Nm (10.2 kgf-m, 73.8 ft. lbs.)
3. After tightening, stake the lock nut securely.
4. Combine the transmission case with the extension case, and install rear vehicle speed sensor.
5. Install the transmission assembly to vehicle.

DISASSEMBLY





1. Remove snap ring from reduction driven gear.

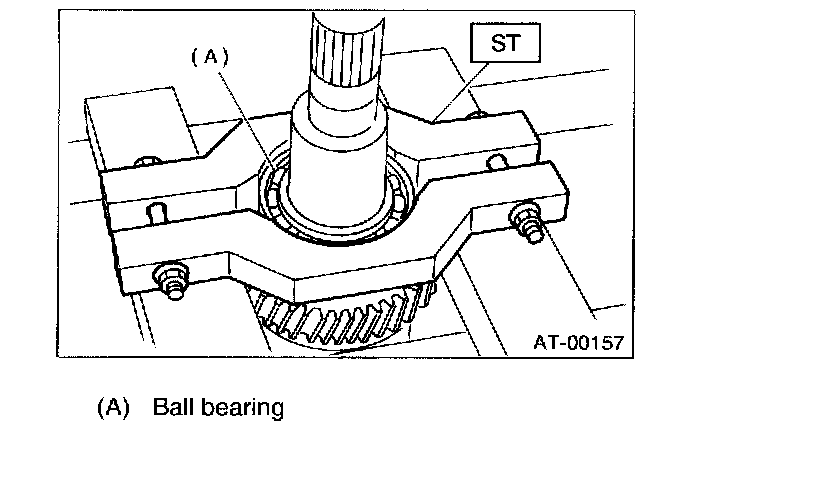

2. Using ST, remove ball bearing from reduction driven gear.
ST 498077600 REMOVER

ASSEMBLY

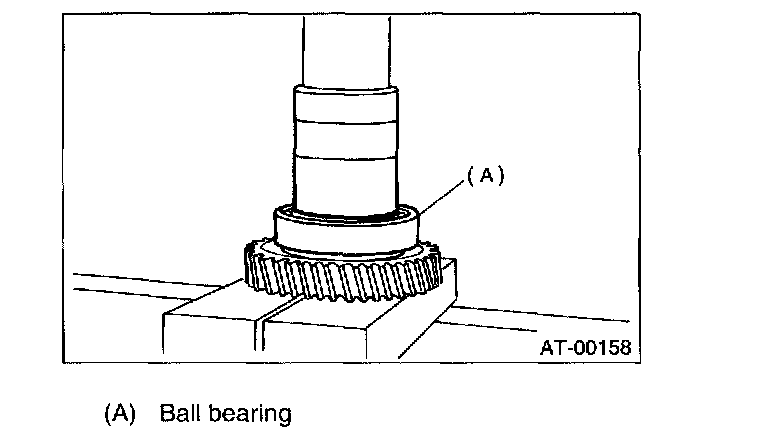

1. Using a press, install a new ball bearing to reduction driven gear.





2. Install snap ring to reduction driven gear.

INSPECTION
Check ball bearing and gear for dents or damage.
