Console: Service and Repair

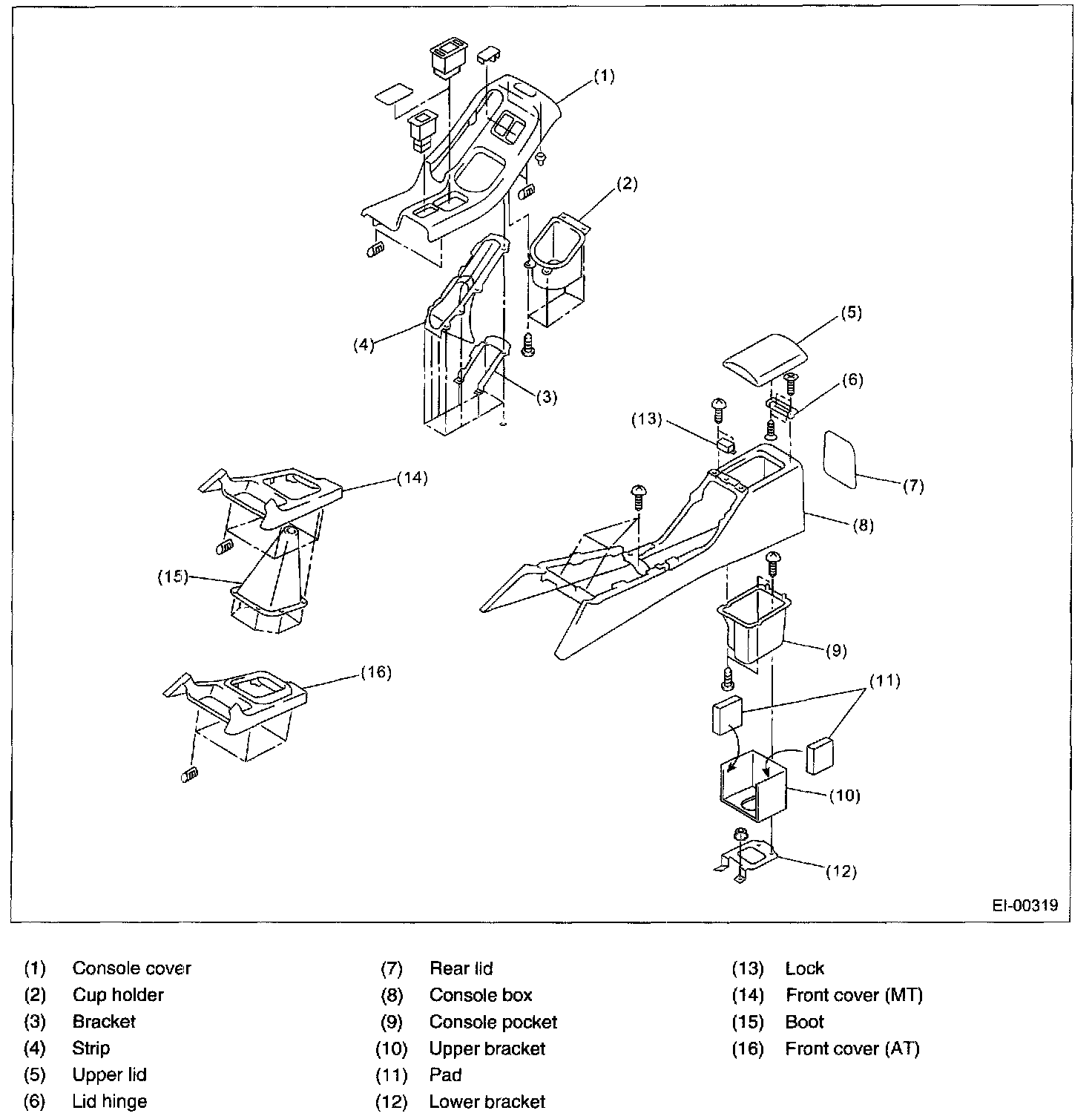

CONSOLE BOXConsole Box:
REMOVAL 1.
Disconnect the ground terminal from battery.
2.
Remove the
console cover.
3.
Remove the shift knob (MT model) and front cover.
4.
Loosen the screws to remove the
console box.
INSTALLATIONInstall in the reverse order of removal.
