Disassembly

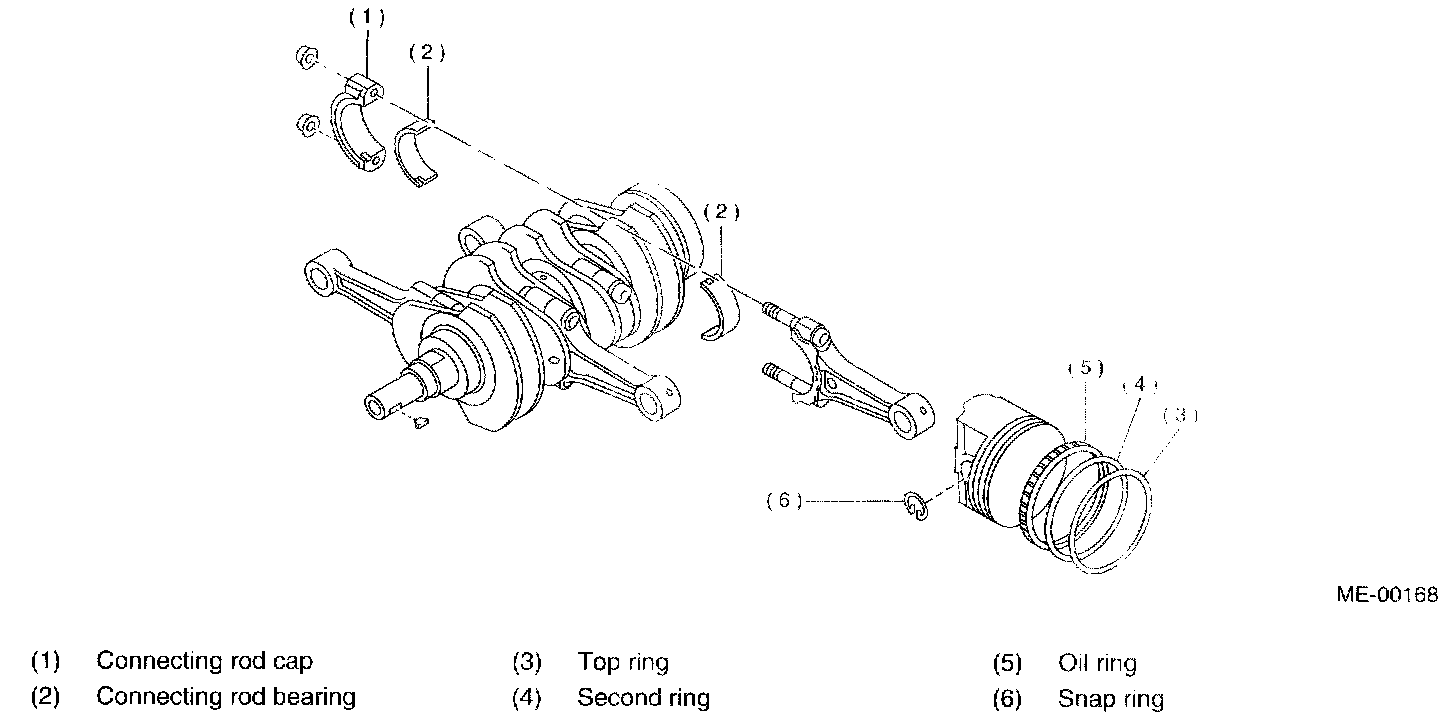

DISASSEMBLY 1)
Remove the
connecting rod cap.
2)
Remove the
connecting rod bearing.
NOTE: Arrange the removed
connecting rod, connecting rod cap and bearing in order to prevent confusion.
3)
Remove the
piston rings using a piston ring expander.
4)
Remove the oil ring by hand.
NOTE: Arrange the removed
piston rings in good order to prevent confusion.
5)
Remove the snap ring.
