Blower Motor: Service and Repair
BLOWER MOTOR UNIT ASSEMBLYREMOVAL 1.
Disconnect the ground terminal from battery.
2.
Remove the glove box.
3.
Loosen the nut to remove support beam stay.
4.

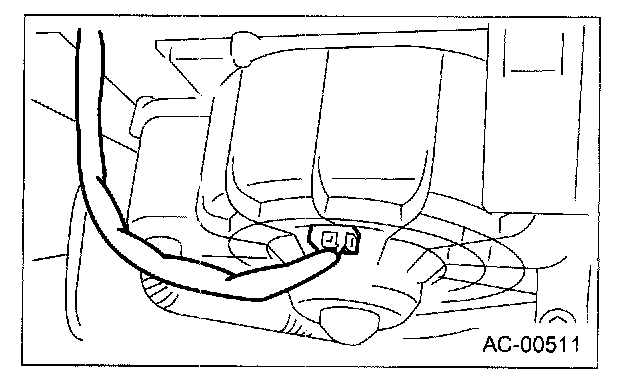

Disconnect the
blower motor connector.
5.

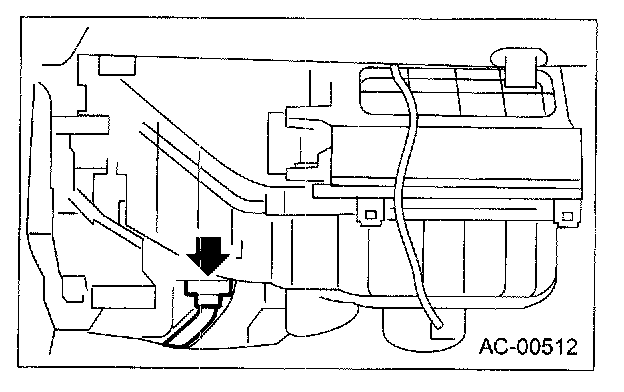

Disconnect the blower resistor connector.
6.

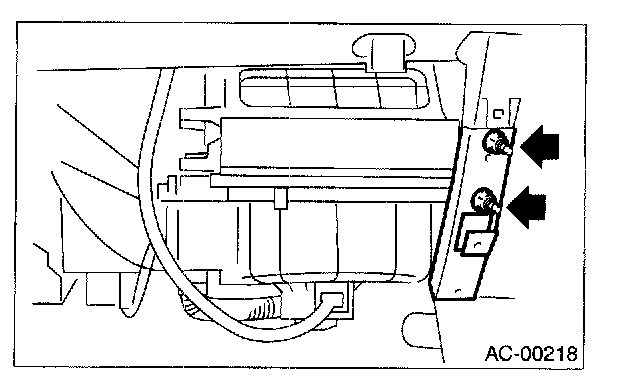

Loosen the bolt and nut to remove
blower motor unit assembly.
INSTALLATIONInstall in the reverse order of removal.
