Refrigerant Pressure

Refrigerant Pressure with Manifold Gauge Set

OPERATION
1. Place the vehicle in the shade and draftless condition.
2. Connect the manifold gauge set.
3. Open the front windows and close all doors.
4. Open the hood.
5. Increase the engine to 1,500 rpm.
6. Turn ON the A/C switch.
7. Turn the temperature control switch to MAX COOL.
8. Put in RECIRC position.
9. Turn the blower control switch to HI.
10. Read the gauge.

Standard:
Low pressure: 127 - 196 kPa (1.3 - 2.0 kg/sq.cm, 18 - 28 psi)
High pressure: 1,471 - 1,667 kPa (15 - 17 kg/sq.cm, 213 - 242 psi)
Ambient temperature: 30 - 35 °C (86 - 95 °F)

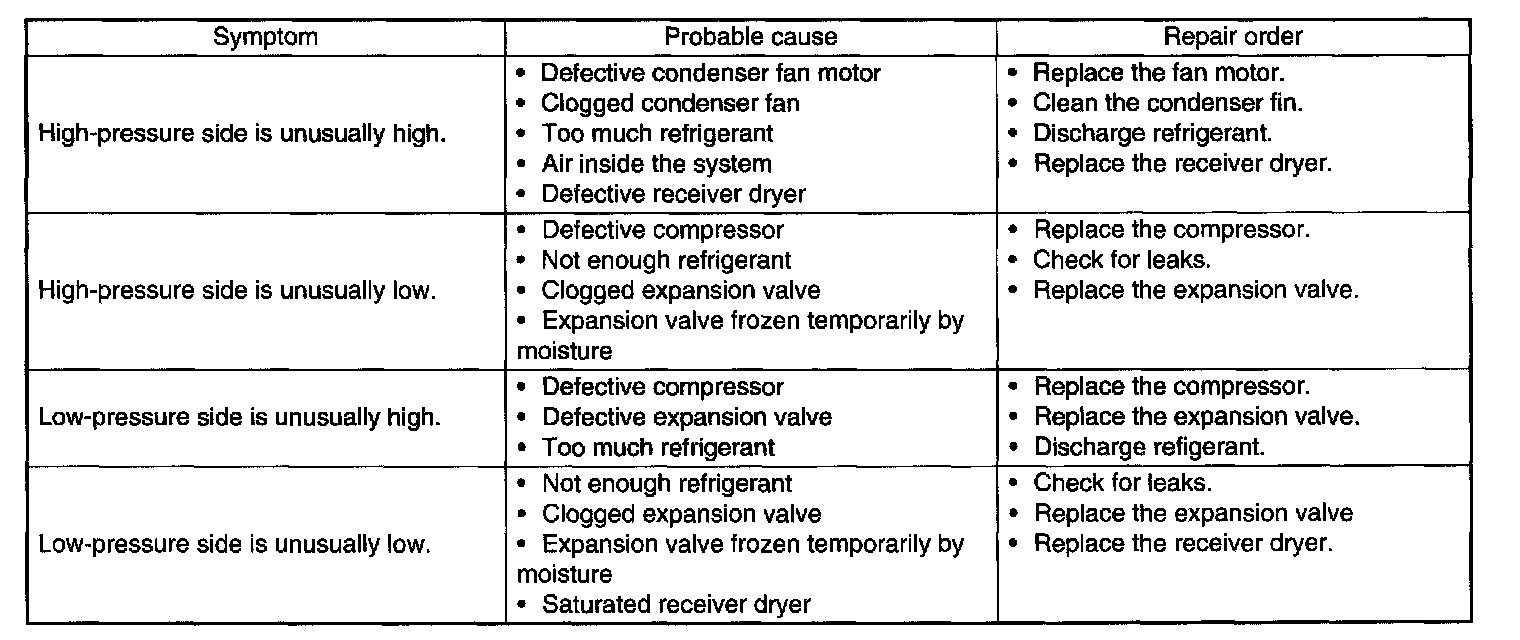

INSPECTION
