Gear Sensor/Switch: Testing and Inspection
The content of this article/image reflects the changes Identified inTSB # 18-100-06
as of 02/06/2006
and applies to 2003 Forester & Impreza Models
Switches and Harness
INSPECTION
BACK-UP LIGHT SWITCH
Inspect the back-up light switch.
NEUTRAL POSITION SWITCH
1) Turn the ignition switch to OFF.
2) Disconnect the connector neutral position switch.
3) Measure the resistance between neutral position switch terminal.

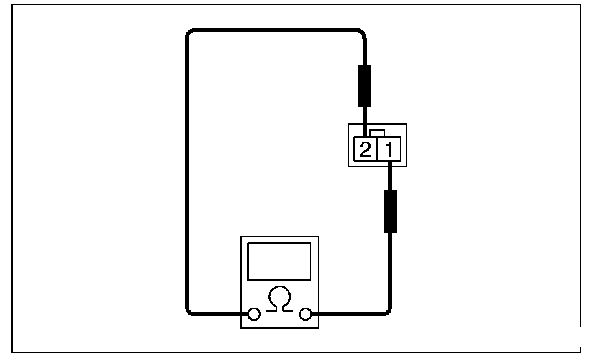

Non-turbo model

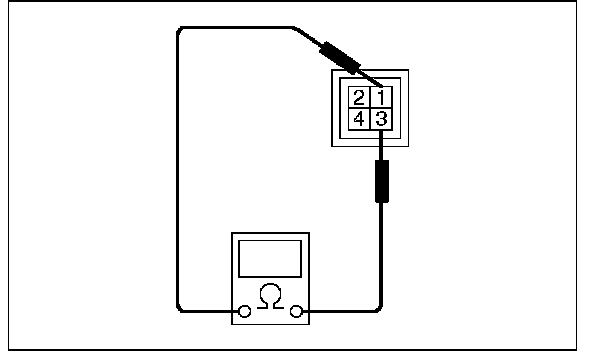

Turbo model

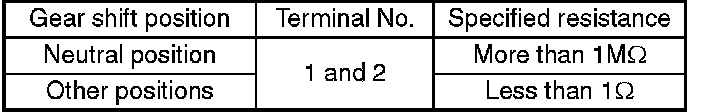

^ Non-turbo model

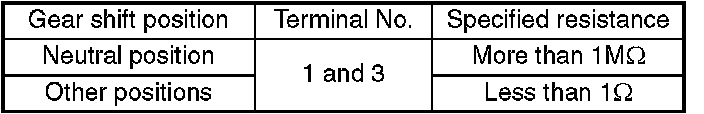

^ Turbo model
4) Replace defective parts.
