Front Door Window Glass: Service and Repair

Front Door Glass

REMOVAL
1. Remove the front door trim.
2. Remove the sealing cover.
3. Remove the outer mirror assembly.

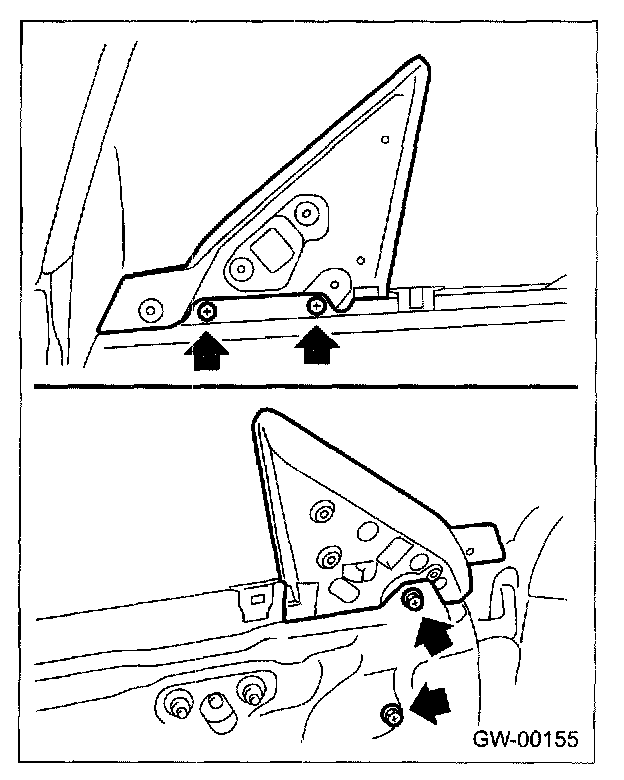

4. Remove the gusset.




5. Remove the stabilizers and trim hooks.

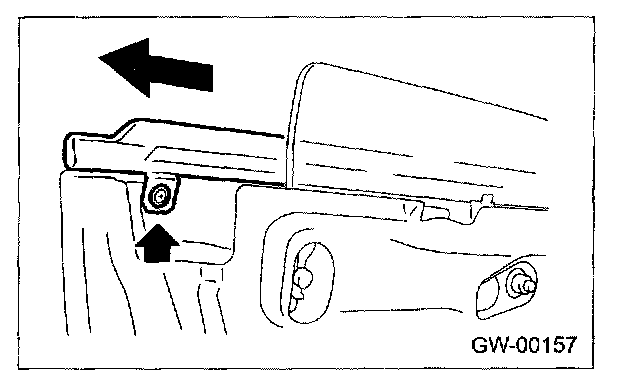

6. Remove the rear end of door weather strip and weather strip outer.

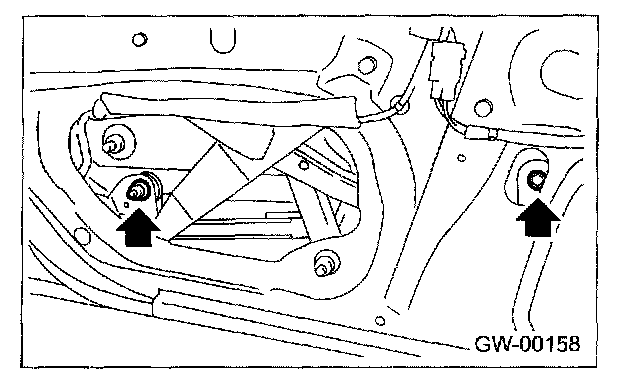

7. Operate the power window switch to move glass to position shown in the figure, and then remove the two nuts from the service holes.




8. Remove the door glass.

CAUTION:
- Do not turn regulator in the closing direction after removal of the glass. Otherwise gear may be disengaged.
- Avoid impact and damage to the glass.

INSTALLATION
1. Install in the reverse order of removal.

CAUTION: Make sure that glass stay is placed securely in sash.

2. Adjust the front door glass.
