Fuel Filter: Service and Repair

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

1. Lower the fuel pressure.

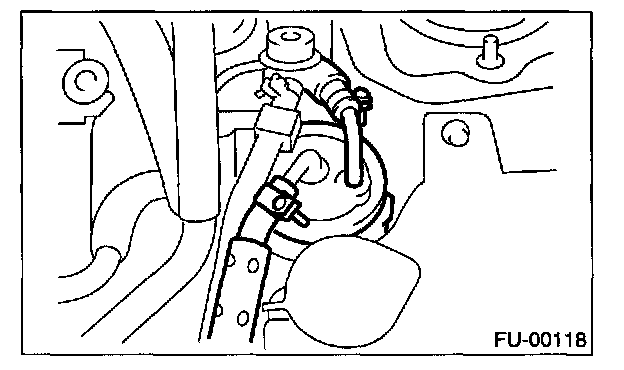

2. Disconnect the fuel delivery hoses from the fuel filter.
3. Remove the filter from the holder.

INSTALLATION

CAUTION:
- If fuel hoses are damaged at the connecting portion, replace it with a new one.
- If clamps are badly damaged, replace with new ones.

1. Install in the reverse order of removal.

2. Tighten the hose clamp screws.

Tightening torque: 1.25 N.m (0.13 kgf-m, 0.94 ft-lb)
