Vehicle Interface Unit Viu
Vehicle Interface Unit VIUREMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove meter visor.
3.
Remove audio body.
4.

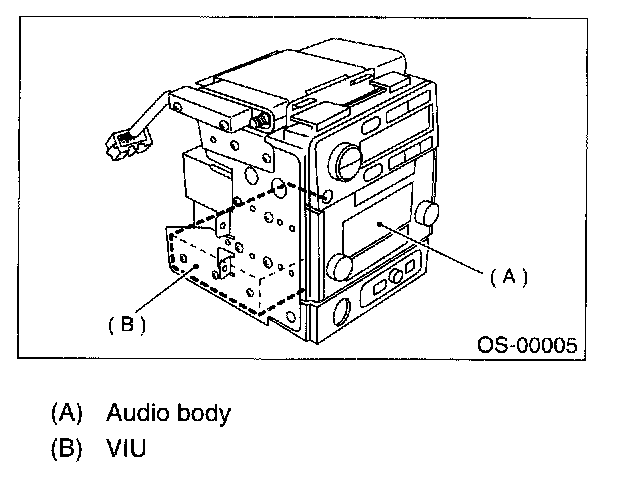

Remove VIU from the audio body.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque:
2.2 N.m (0.22 kgf.m, 1.6 ft.lb)NOTE: When changing VIU, consult the OnStar (R) call center and request setup.
