Trunk Lid Lock Assembly

Trunk Lid Lock Assembly

REMOVAL

1. Remove the trunk lid key cylinder rod.

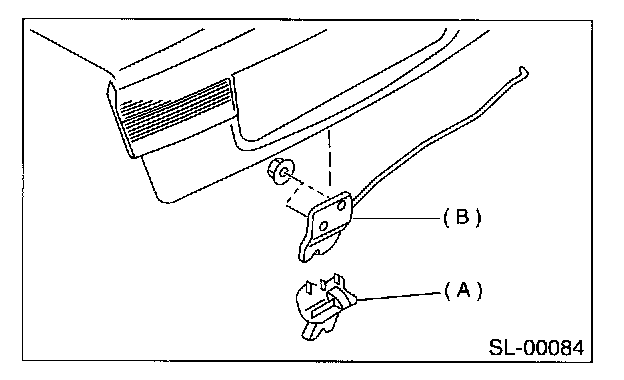

2. Remove the lock assembly cover (A).

3. Remove the nut while holding the lock assembly. Remove the lock assembly (B).

INSTALLATION

Install in the reverse order of removal.

NOTE:
- Apply grease to parts that rub.
- Make sure the lock works properly after installation.
