Crankshaft Gear/Sprocket: Service and Repair

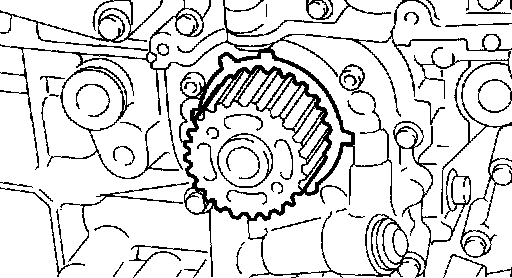

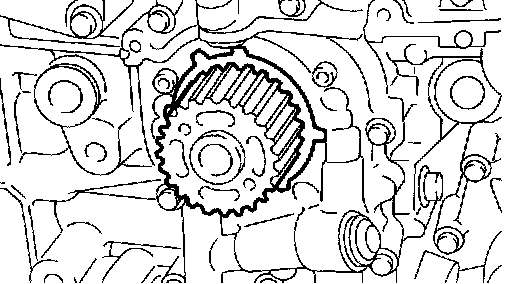

Crankshaft Sprocket

REMOVAL





1. Remove V-belt.
2. Remove crankshaft pulley.
3. Remove belt cover.
4. Remove timing belt assembly.
5. Remove camshaft sprocket.
6. Remove crankshaft sprocket.

INSTALLATION





1. Install crankshaft sprocket.
2. Install camshaft sprocket.
3. Install timing belt assembly.
4. Install belt cover.
5. Install crankshaft pulley.
6. Install V-belt.

INSPECTION
1. Check sprocket teeth for abnormal wear and scratches.
2. Make sure there is no free play between sprocket and key.
3. Check crankshaft sprocket notch for sensor for damage and contamination of foreign matter.
