Disassembly and Assembly
DISASSEMBLY 1.
Remove the clip, and then remove the
accelerator pedal from the bracket.
2.
Pull out the spring pin, and then remove the
accelerator pedal from the accelerator pedal lever.
ASSEMBLYAssemble in the reverse order of disassembly.

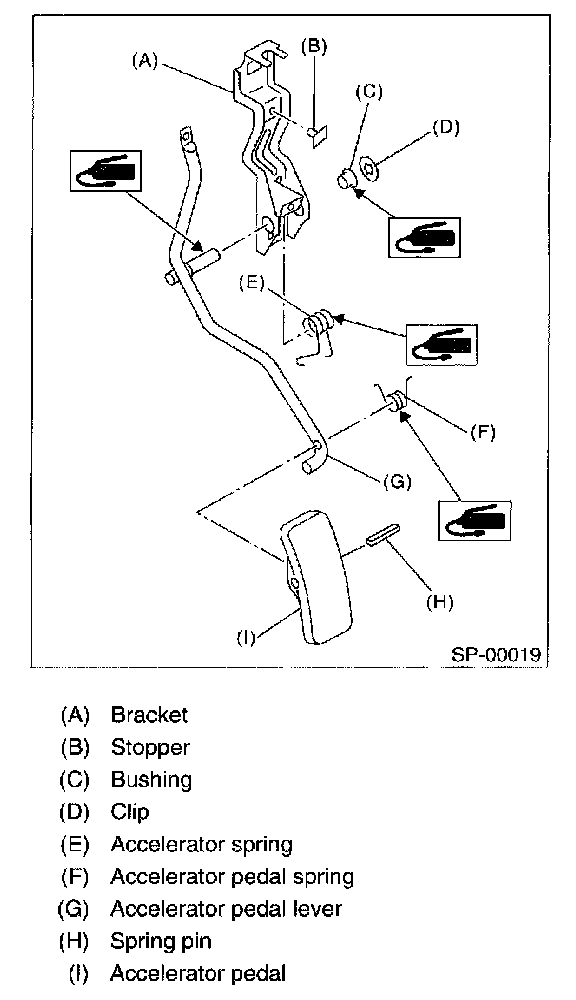

NOTE: Clean areas as shown in the illustration and apply grease.
Grease: Part No. 003602010 (SUNLIGHT No. 2)
