Air Cleaner

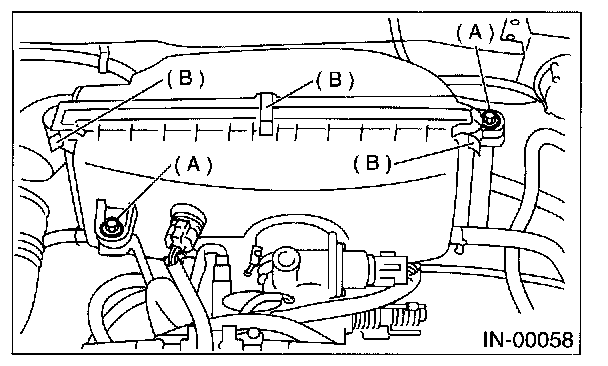

Air CleanerREMOVAL 1.
Remove bolt (A) which install air cleaner case to stays.
2.
Remove the clip (B) above the air cleaner case.
3.
Remove air cleaner element.
INSTALLATIONInstall in the reverse order of removal.
CAUTION: Fasten with a clip after inserting the lower tab of the case.
