Removal and Installation
REMOVAL 1.
Disconnect battery ground cable.
2.

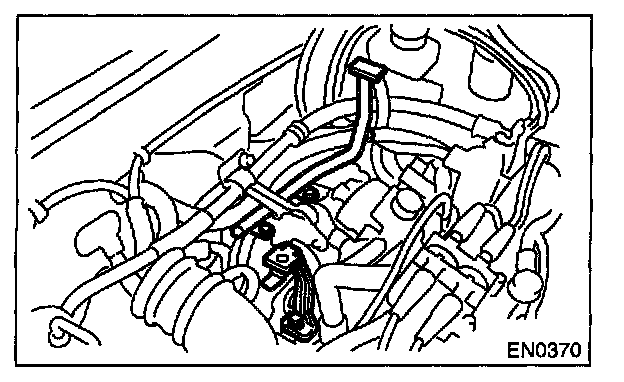

Remove air cleaner case.
3.

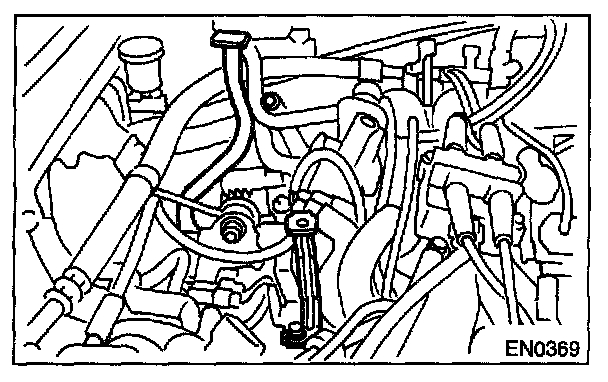

Remove air cleaner case stay.
4.

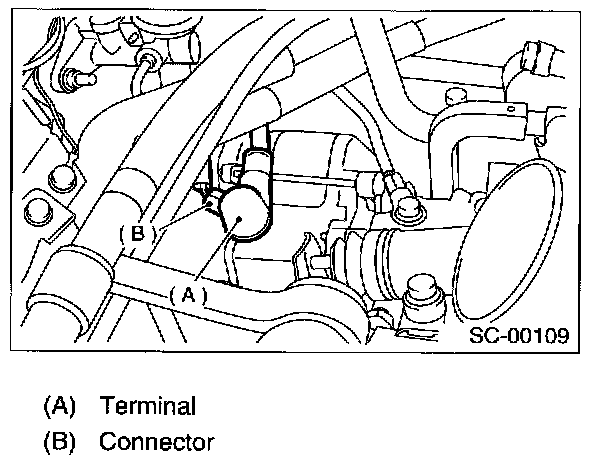

Disconnect connector and terminal from starter.
5.
Remove starter from transmission.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque:
50 N.m (5.1 kgf-m, 37 ft-lb)
