Timing Cover

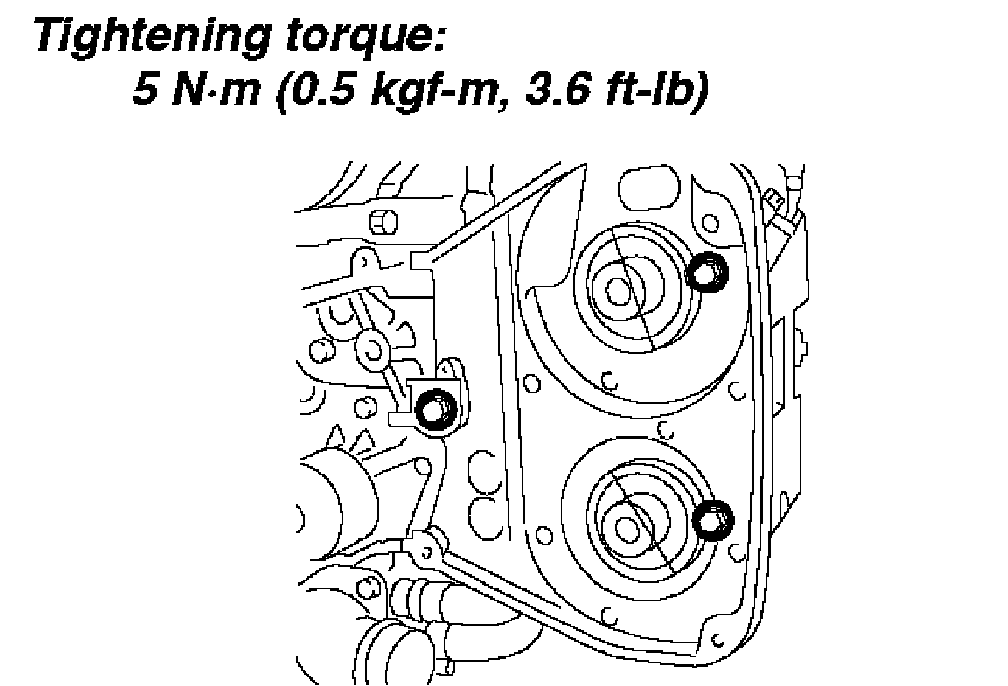

Belt cover No.2 (LH)

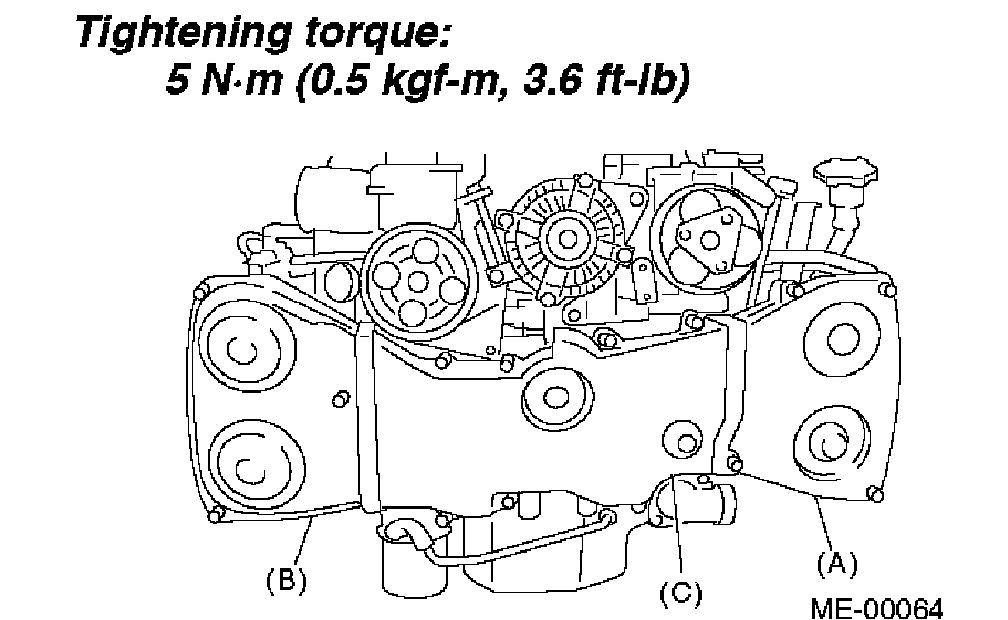

Install the front timing belt cover (C).
Tightening torque
5 Nm (0.5 kgf-cm, 3.6 ft. lbs.)
Install the timing belt cover (RH) (B).
Tightening torque
5 Nm (0.5 kgf-cm, 3.6 ft. lbs.)
Install the timing belt cover (LH) (A)
