Grille: Service and Repair

FRONT GRILLE

Front Grille:

REMOVAL

1. Open the hood.

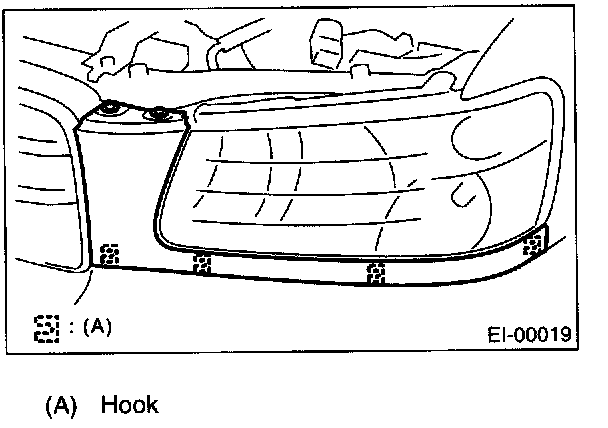

2. Remove the two upper clips of front grille side. Slide the front grille side to vehicle outside, then remove the four lower hooks to remove front grille side.

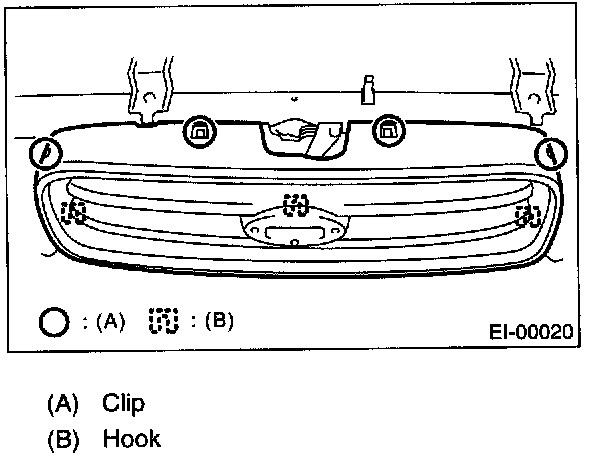

3. Remove the four upper clips of front grille, then pull the front grille up and remove the three hooks to remove front grille.






INSTALLATION

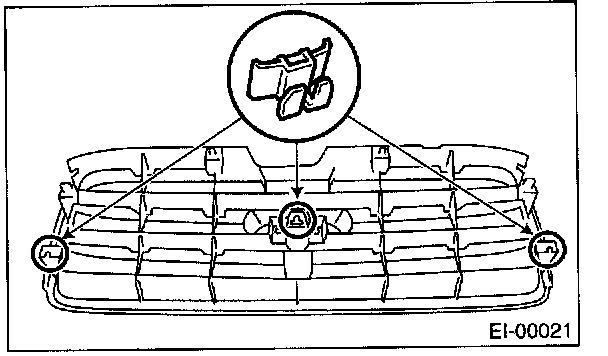

1. Remove the three hooks remained on body during removal, then install them to front grille.






NOTE: Make sure that the clip direction is correct.

2. Install the front grille to body.
3. Install the front grille side.
